Tractor · 2016Unverified

Mahindra 1533

Name: Mahindra 1533
Brand: Mahindra

Mahindra 1533 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.

The Mahindra 1533 tractor is a model with a rated power output of 25 hp, positioning it at the lower end of its class. It was manufactured from 2016 to 2018. The 1533 model is equipped with a 4-cylinder diesel liquid-cooled engine and features four-wheel drive with a hydrostatic transmission. Its operating weight is listed as between 3164 and 3175 pounds, and it is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Max power

34.5 hp

Weight

3164 to 3175 pounds

Catalogue coverage

Variants represented

Richest spec table

115 rows

Recorded power

25 hp

Recorded weight

576 kg

Transmissions

8-speed shuttle

Production years

2016-2018

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Built in JapanReference

Original price$20,655 (2016 shuttle )Reference

Original price$22,005 (2016 hydrostatic )Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mahindra 2.7L 4-cyl dieselReference

Fuel tank29.1 LReference

Engine25.7 kWReference

MahindraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke89 x 110 mmReference

EmissionsTier IVReference

Power25.7 kWReference

Fuel systemdirect injectionReference

Compression19.5:1Reference

Rated RPM2400Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,400 RPMReference

Emissions complianceTier IVReference

Bore and stroke3.50x4.33 inchesReference

Compression ratio19.5:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed shuttleReference

hydrostaticReference

TypeshuttleReference

Gears8 forward and reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeHSTReference

Wheel Drive4WDReference

PTO & Hydraulics

Shuttle PTO (claimed)18.8 kWReference

Hydro PTO (claimed)18.4 kWReference

Typeopen centerReference

Rear valves1Reference

Pump flow29.1 lpmReference

Steering flow12.9 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift1200 kgReference

Rear Armstelescopic stabilizersReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2376Reference

Mid PTO Type2000Reference

Engine RPM2000@2525Reference

Dimensions

Weight3164 to 3175 poundsReference

Front tire7x16Reference

Rear tire11.2x24Reference

Weight576 kgReference

Standard tires (ag)Front: 7x16. Rear: 11.2x24Reference

Lawn/turf front25x8.5-14Reference

Lawn/turf rear13.6x16Reference

Industrial front27x8.5-15Reference

Industrial rear15x19.5Reference

Length324 cmReference

Width160 cmReference

Height (ROPS)229 cmReference

Shuttle Weight1440 kgReference

Hydro Weight1435 kgReference

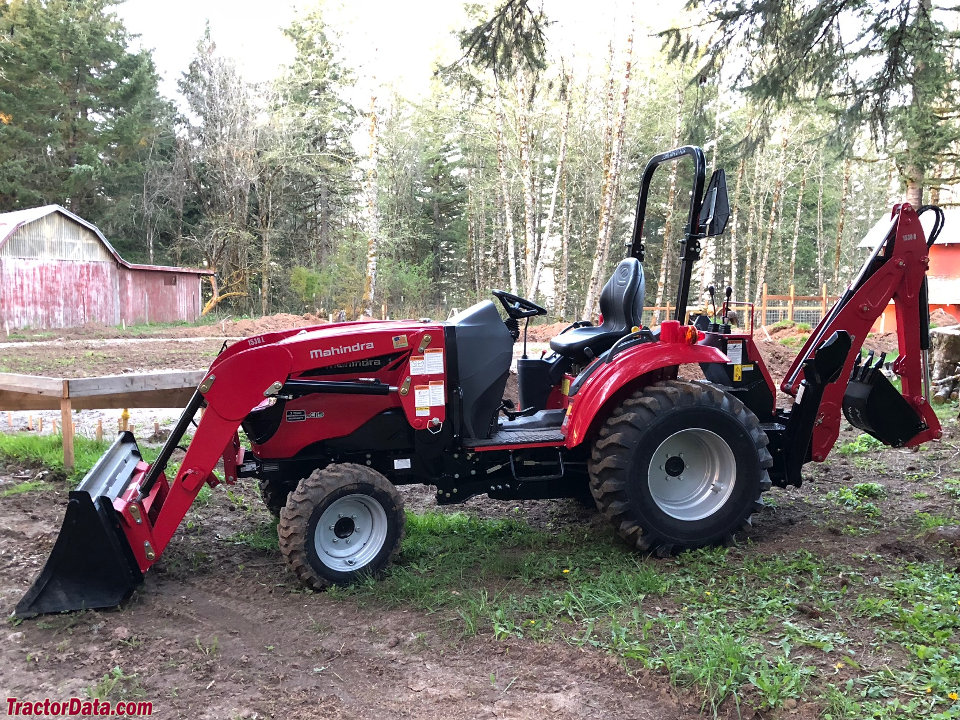

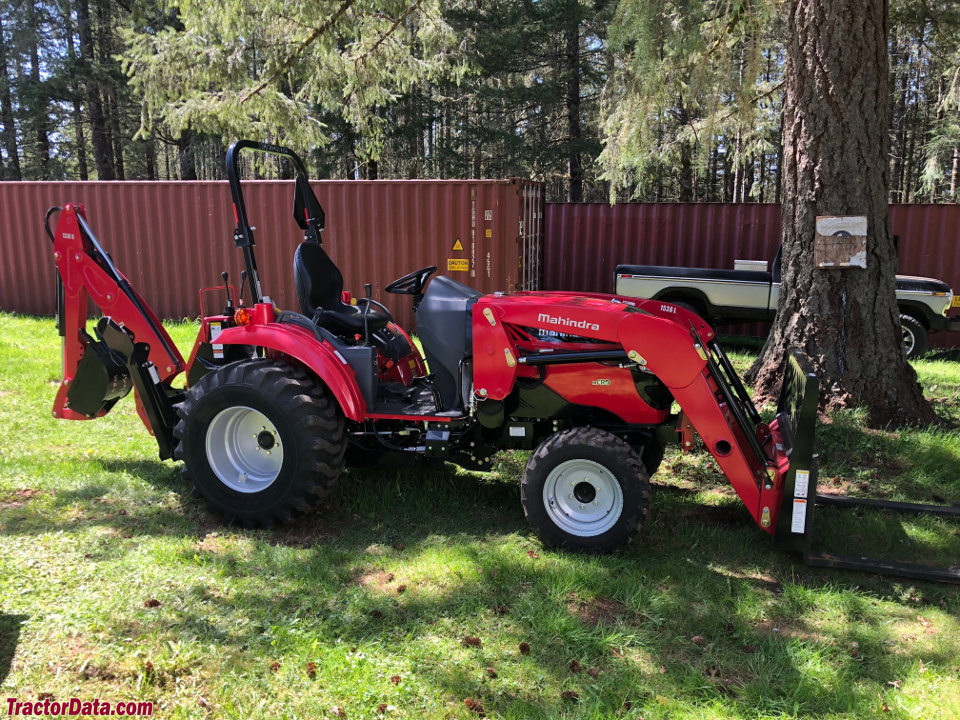

Mahindra 1533 attachments

front-end loaderReference

backhoeReference

Electrical

Charging systemalternatorReference

Charging amps90Reference

Charging volts12Reference

Battery volts12Reference

Battery AH46Reference

Battery size46 AHReference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra 1538B Backhoe

Backhoe typeMahindra 1538B BackhoeReference

Transport height302 cmReference

Digging depth238 cmReference

2-Foot flat digging depth233 cmReference

Reach from pivot324 cmReference

Loading height160 cmReference

Bucket Rotation175°Reference

Swing Arc180°Reference

Bucket force1315 kgReference

Dipperstick force816 kgReference

General

Make & ModelMitsubishiReference

Rollover protective structureTwo-post foldable ROPS.Reference

Capacities

Capacity166.7 ciReference

Power

Max Power34.5 hpReference

PTO

PTO Power25.2 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTOAvailableReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Mid PTO speed2,000@2,525 RPMReference

Engine Speed on Rear PTO speed540@2,376 RPMReference

Steering & brakes

Brakeswet discReference

Steering typePowerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1* ValvesReference

Steering & Implements flow3.4 gpm (8 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,200.2 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS229.1 cmReference

Overall Length324.6 cmReference

Overall Width160 cmReference

Overall weight1,440.2 kgReference

Operator station

Seat SuspensiontrueReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
