Tractor · 2016Unverified

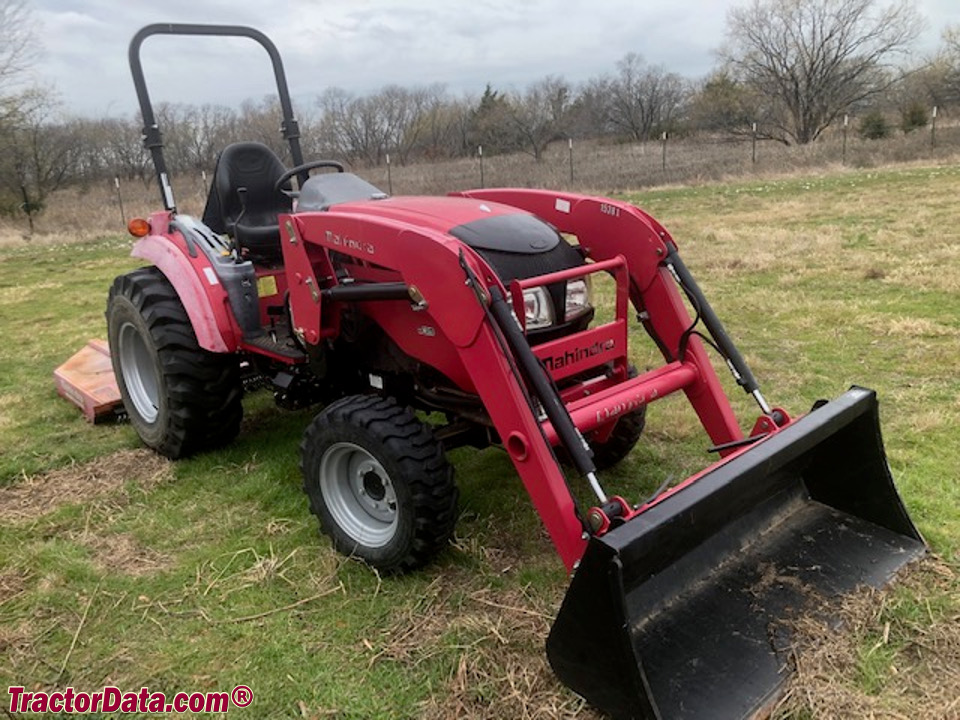

Mahindra 1538
Mahindra 1538 — Compact Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
3175 to 3627 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$23,490 (2016 shuttle ROPS )Reference
Original price$24,480 (2016 hydrostatic ROPS )Reference
Original price$32,468 (2016 hydrostatic cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank29.1 LReference
Engine28.9 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
EmissionsTier IVReference
Power28.9 kWReference
Fuel systemdirect injectionReference
Compression19.5:1Reference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
hydrostaticReference
TypeshuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Shuttle PTO (claimed)22.3 kWReference
Hydro PTO (claimed)20.7 kWReference
Typeopen centerReference
Rear valves1Reference
Pump flow29.1 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1200 kgReference
Rear Armstelescopic stabilizersReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTO Type2000Reference
Engine RPM2000@2525Reference
Dimensions
Weight3175 to 3627 poundsReference
Front tire7x16Reference
Rear tire11.2x24Reference
Weight576 kgReference
Weight367 kgReference
Standard tires (ag)Front: 7x16. Rear: 11.2x24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length324 cmReference
Width157 cmReference
Height (ROPS)232 cmReference
Height (cab)227 cmReference
Shuttle ROPS1445 kgReference
Hydro ROPS1440 kgReference
Hydro cab1645 kgReference
Mahindra 1538 attachments
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Charging volts12Reference
Battery volts12Reference
Battery AH46Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 1538B Backhoe
Backhoe typeMahindra 1538B BackhoeReference
Transport height302 cmReference
Digging depth238 cmReference
2-Foot flat digging depth233 cmReference
Reach from pivot324 cmReference
Loading height160 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1315 kgReference
Dipperstick force816 kgReference
Mahindra 1538C Backhoe
Backhoe typeMahindra 1538C BackhoeReference
Transport height167 cmReference
Digging depth198 cmReference
2-Foot flat digging depth194 cmReference
Reach from pivot269 cmReference
Loading height157 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force1149 kgReference
Dipperstick force606 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
