Tractor · 2018Unverified

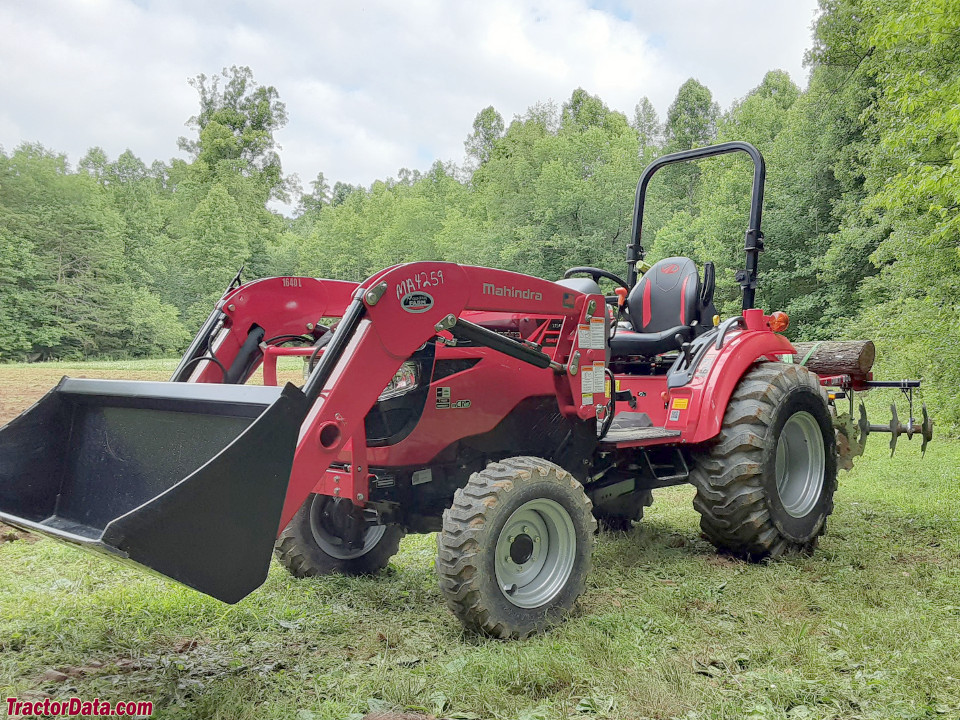

Mahindra 1640
Mahindra 1640 — Compact Utility tractor · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
3175 to 3627 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Compact Utility tractorReference
Original price$25,900 (2018 gear )Reference
Original price$27,300 (2018 hydro )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank29.1 LReference
Engine28.9 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
EmissionsTier IVReference
Power28.9 kWReference
Fuel systemdirect injectionReference
Rated RPM2400Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sync shuttleReference
hydrostaticReference
ROPS gear Operating1445 kgReference
Typesync shuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)20.7 kWReference
Typeopen centerReference
Pump flow29.1 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Shuttle Rear PTOliveReference
Hydro Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTO Type2000Reference
Engine RPM2000@2545Reference
Dimensions
Wheelbase195 cmReference
Weight3175 to 3627 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight567 kgReference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front28x8.5-15Reference
Industrial rear43x16-20Reference
Length324 cmReference
Width157 cmReference
Height (ROPS)227 cmReference
Height (cab)231 cmReference
Ground clearance32 cmReference
ROPS hydro Operating1440 kgReference
Cab hydro Operating1645 kgReference
Mahindra 1640 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery CCA925Reference
Battery volts12Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount Mahindra 1672MReference
Cutting width182 cmReference
Mahindra 55B Backhoe
Backhoe typeMahindra 55B BackhoeReference
Bucket width40 cmReference
Digging depth241 cmReference
2-Foot flat digging depth237 cmReference
Bucket force1559 kgReference
Dipperstick force1004 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
