Tractor · 2007Unverified

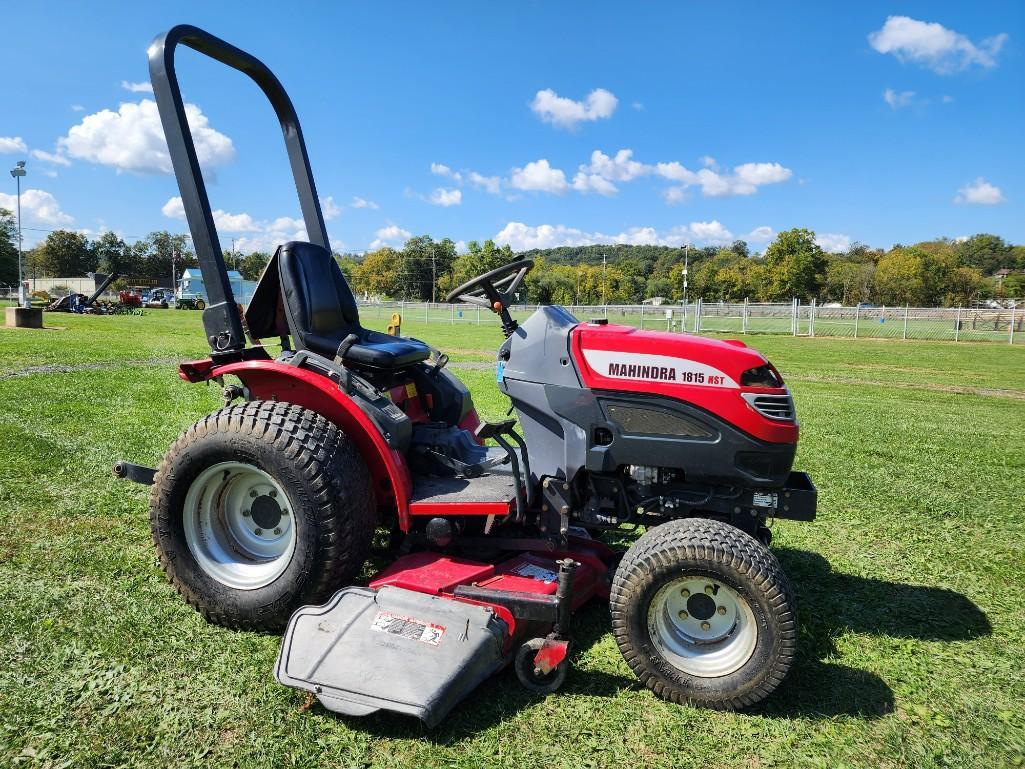

Mahindra 1815
Mahindra 1815 — 15 Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
687 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$10,920 (2007)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine13.4 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power13.4 kWReference
Fuel systemindirect injectionReference
Compression23:1Reference
Rated RPM2600Reference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)10.1 kWReference
Typeopen centerReference
Valves1Reference
Pump flow17.0 lpmReference
Steering flow8.7 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift635 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2376Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Engine RPM2000@2556Reference
Dimensions
Weight687 kgReference
Front tire6x12Reference
Rear tire9.5x16Reference
Ag front6x12Reference
Ag rear9.5x16Reference
Lawn/turf front20x8.0-10Reference
Lawn/turf rear29x12.5-15Reference
Industrial front20x8.0-10Reference
Industrial rear27x12.5-15Reference
Length256 cmReference
Width128 cmReference
Mahindra 1815 attachments
52" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Charging volts12Reference
Battery volts12Reference
Battery AH35Reference
Attachment overview
52" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
52" Mower deck
Typemid-mount MahindraReference
Cutting width132 cmReference
Mahindra 1710A Backhoe
Backhoe typeMahindra 1710A BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
