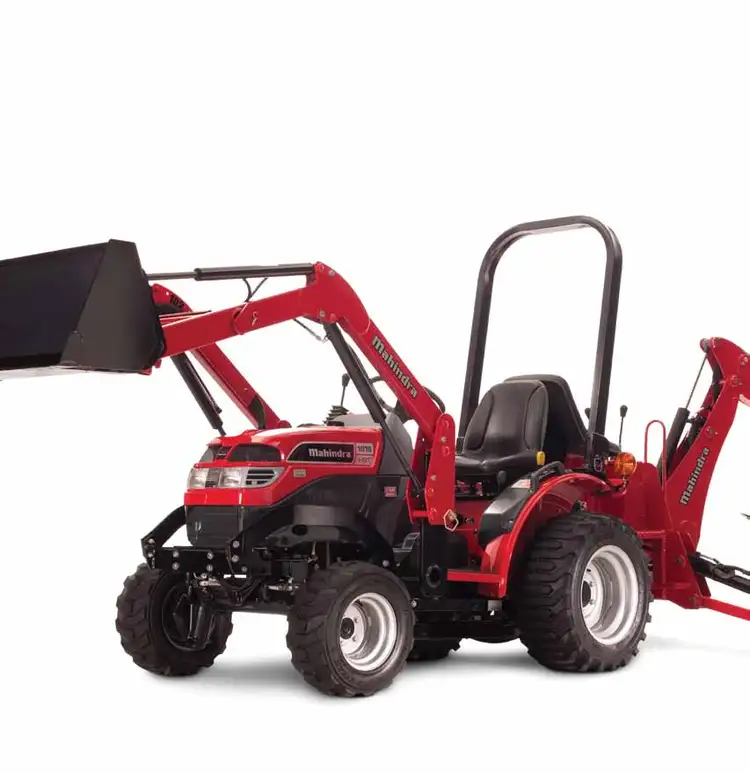

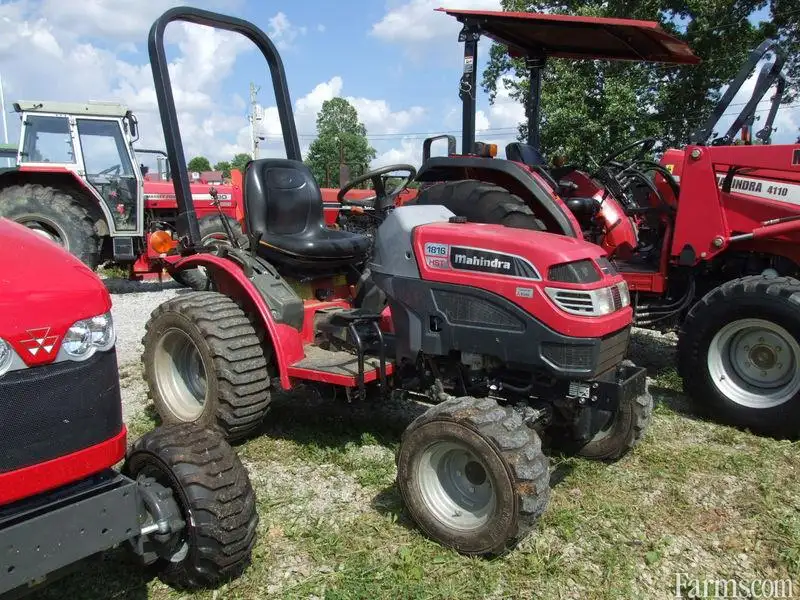

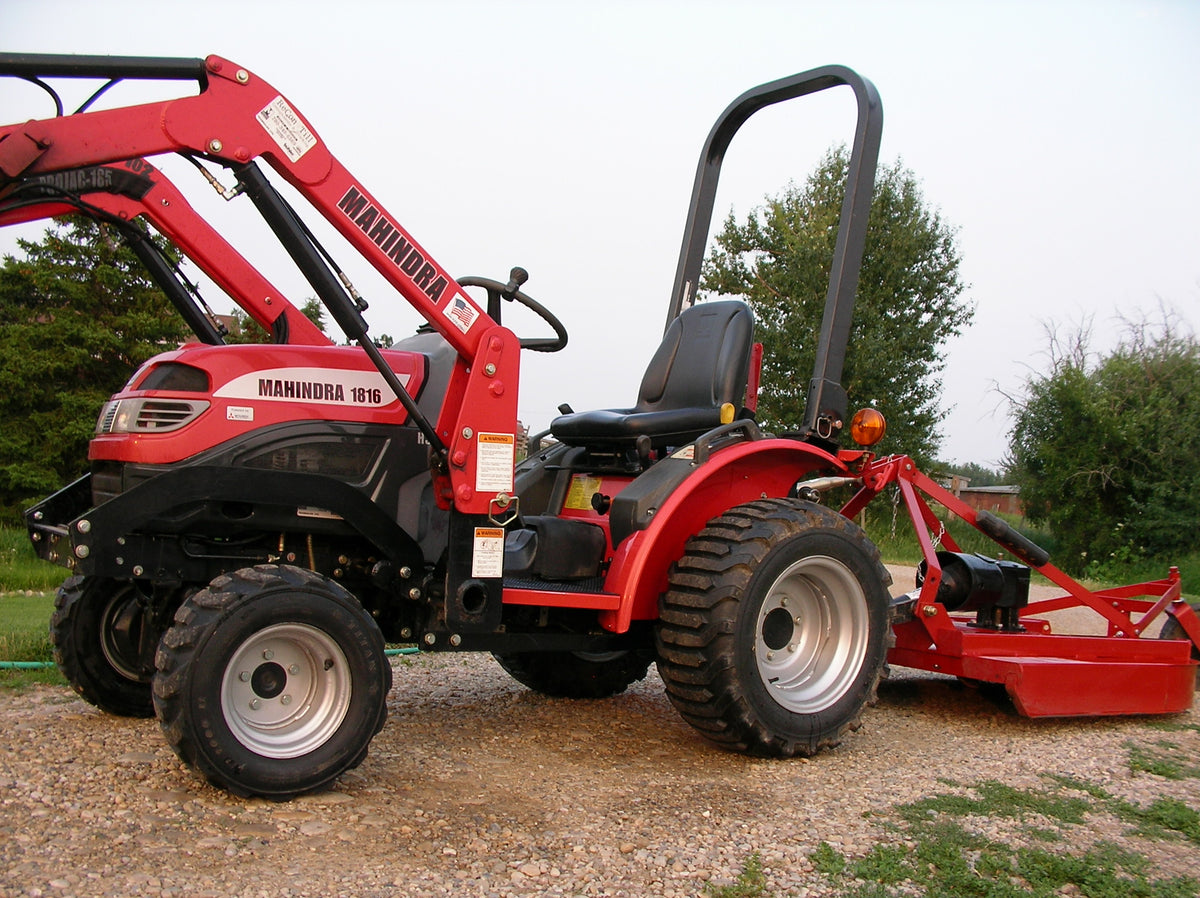

The Mahindra 1816 is a tractor with a rated output of 14 hp — making it one of the more compact options in its class. The 1816 was produced in 2008. Under the hood is a 3-cylinder diesel liquid-cooled engine, driving through four-wheel drive with a hydrostatic transmission. Listed weight is 687 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Max power
18 hp
Weight
687 kg
Catalogue coverage
Variants represented
2
Richest spec table
88 rows
Recorded power
14 hp
Recorded weight
687 kg
Transmissions
hydrostatic
Production years
2008-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$11,310 (2009 )Reference
Original price$11,875 (2013 )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Flat platform with folding ROPSReference
Engine
Mitsubishi 1.0L 3-cyl dieselReference
Engine13.4 kWReference
Mitsubishi L3EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke76 x 70 mmReference
Power13.4 kWReference
Compression23:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Fuel TypedieselReference
No of Cylinders3 cylinderReference
Rated engine speed2,600 RPMReference
Bore and stroke3.00x2.76 inchesReference
Compression ratio23:1Reference
Cooling systemliquid-cooledReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Transmission TypeHSTReference
forward and reverse optionsHydrostatic : Infinite F and R (2-range)Reference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)10.1 kWReference
Typeopen centerReference
Valves0 or 1Reference
Pump flow17.0 lpmReference
Steering flow8.7 lpmReference
Rear TypeIReference
Rear lift (at ends)635 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Weight687 kgReference
Lawn/turf front20x8.0-10Reference
Lawn/turf rear29x12.5-15Reference
Industrial front20x8.0-10Reference
Industrial rear27x12.5-15Reference
Length256 cmReference
Width128 cmReference
Operating weight687 kgReference
Mahindra 1816 attachments
52" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH35Reference
Battery size35 AHReference
Attachment overview
52" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
52" Mower deck
Typemid-mount MahindraReference
Cutting width132 cmReference
Mahindra 1710A Backhoe
Backhoe typeMahindra 1710A BackhoeReference
General
Make & ModelMitsubishiReference
Rollover protective structureFlat platform with folding ROPSReference
