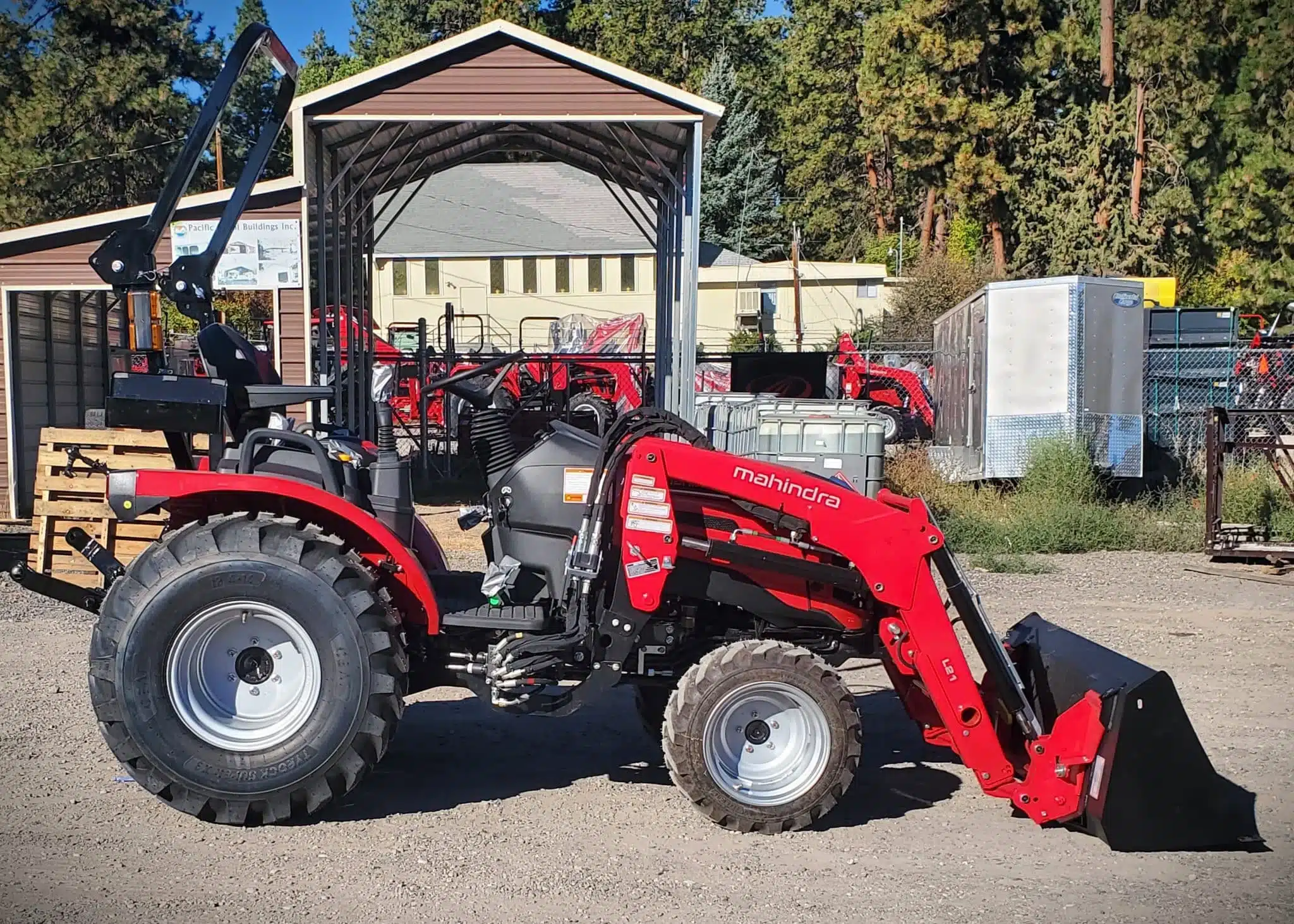

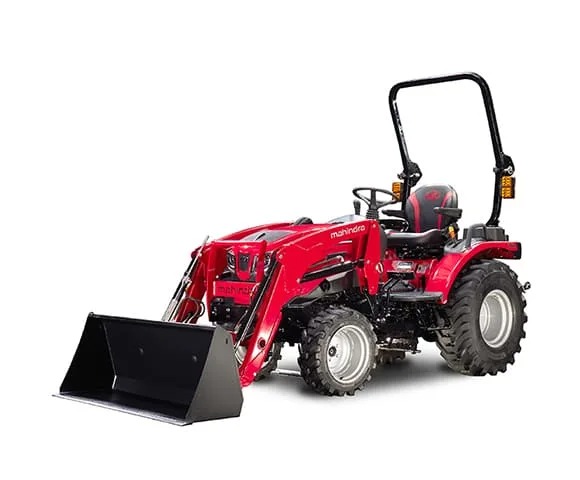

Mahindra 2123
Mahindra 2123 — Compact Utility tractor · 17 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
2101 to 2607 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank22.0 LReference
Engine17.1 kWReference
Mitsubishi MVS3L2Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power17.1 kWReference
Fuel systemindirect injectionReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)12.5 kWReference
Typeopen centerReference
Rear valves2Reference
Pump flow42.4 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at 24"/610mm)798 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOindependentReference
Engine RPM2500@2500Reference
Dimensions
Weight2101 to 2607 poundsReference
Weight366 kgReference
Lawn/turf front8.5-14Reference
Lawn/turf rear12.4-16Reference
Industrial front8.5-14Reference
Industrial rear12.4-16Reference
Length286 cmReference
Width138 cmReference
Height (ROPS)237 cmReference
Height (cab)214 cmReference
ROPS Weight953 kgReference
Cab Weight1182 kgReference
Mahindra 2123 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA650Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra B21 Backhoe
Backhoe typeMahindra B21 BackhoeReference
Digging depth231 cmReference
2-Foot flat digging depth223 cmReference
Bucket force1323 kgReference
Dipperstick force779 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
