Tractor · 2008Unverified

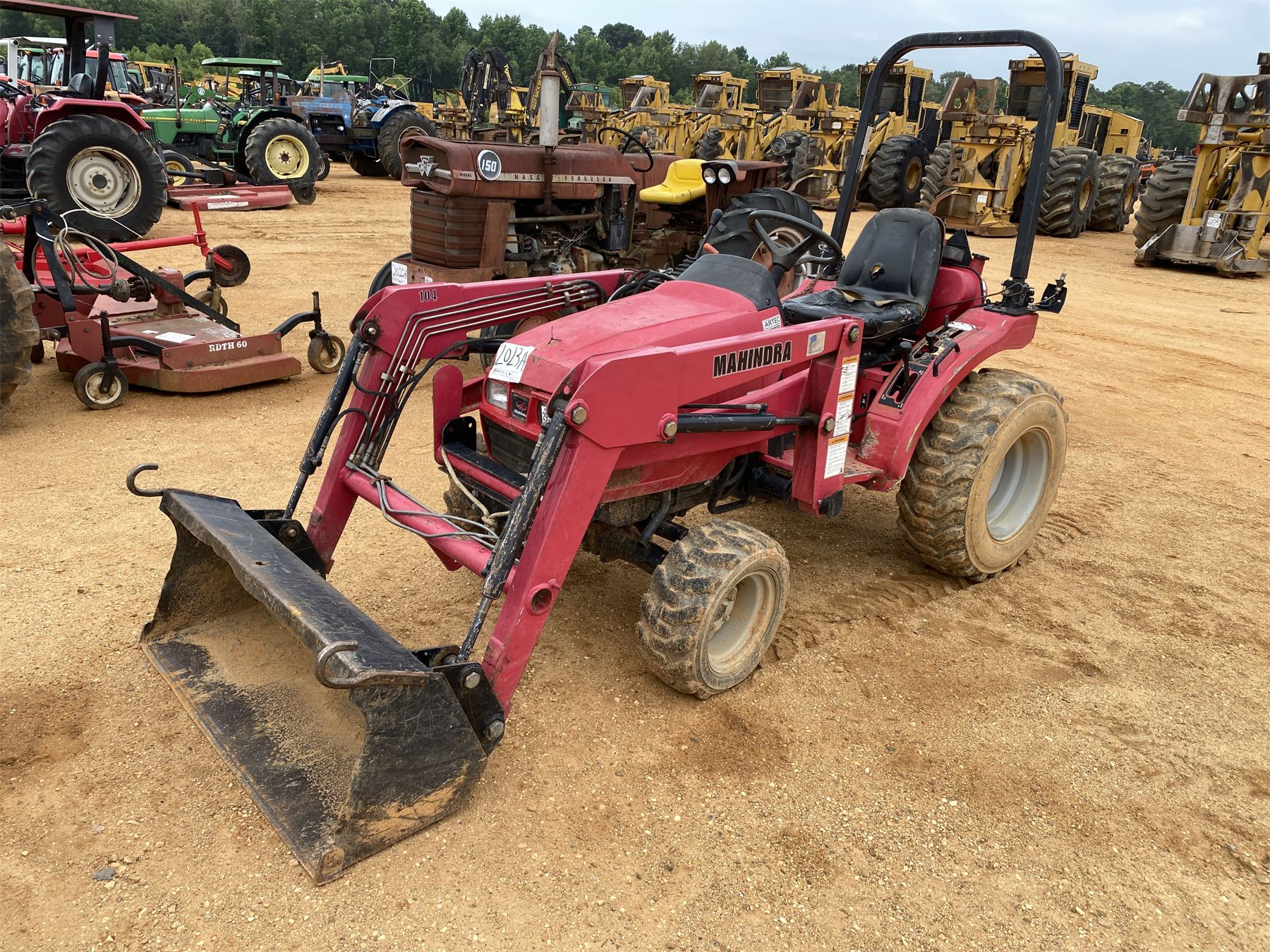

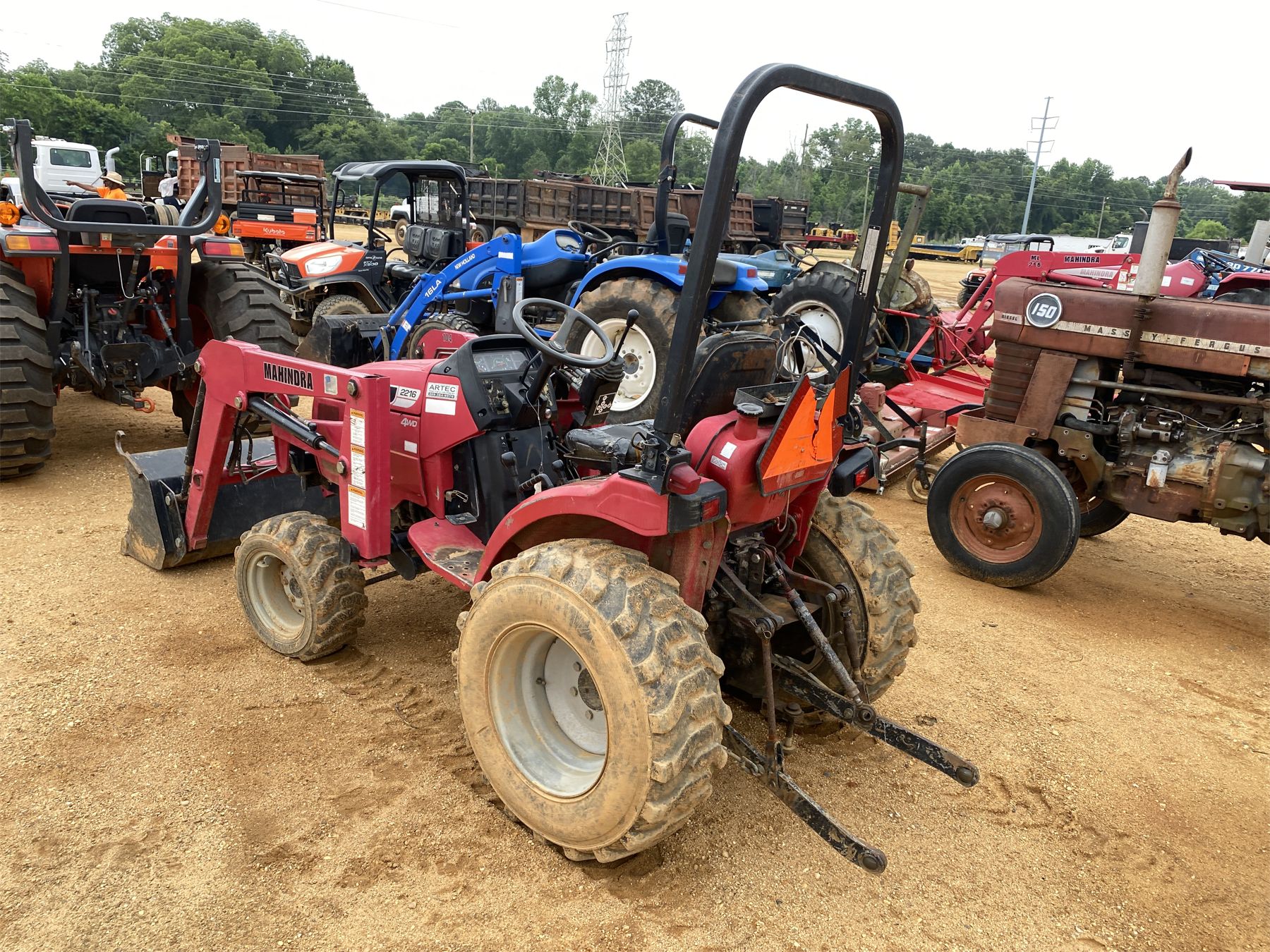

Mahindra 2216
Mahindra 2216 — 16 Series · 16 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
1819 to 1973 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$12,599 (2009 hydro )Reference
Original price$11,750 (2013 gear )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry shoe brakesReference
Folding ROPSReference
Engine
Mitsubishi 1.1L 3-cyl dieselReference
Engine16.4 kWReference
Mitsubishi S3LReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 79 mmReference
Power16.4 kWReference
Compression22:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
hydrostaticReference
TypegearReference
Gears6 forward and 2 reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)11.9 kWReference
PTO (claimed)13.0 kWReference
Typeopen centerReference
Valves0 or 1Reference
Pump flow22.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at ends)635 kgReference
Rear PTOtransmission (gear)Reference
Rear PTOlive (hydro)Reference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Weight1819 to 1973 poundsReference
Industrial front23x8.5-12Reference
Industrial rear12x16.5Reference
Length270 cmReference
Width135 cmReference
Operating weight825 kgReference
Operating weight894 kgReference
Mahindra 2216 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Battery AH46Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 1710C Backhoe
Backhoe typeMahindra 1710C BackhoeReference
Mahindra 2710 Backhoe
Backhoe typeMahindra 2710 BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
