Tractor · 2007Unverified

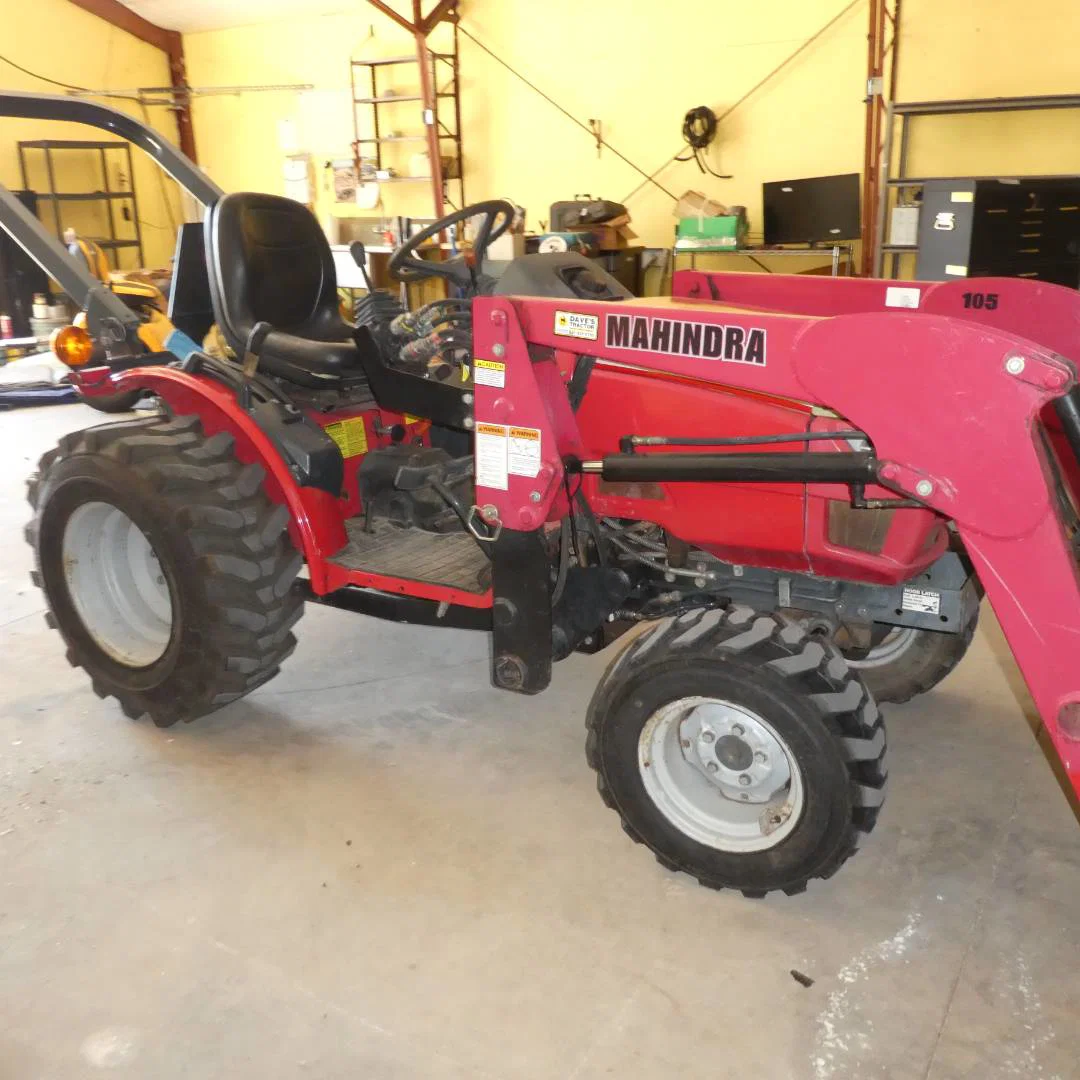

Mahindra 2415
Mahindra 2415 — 15 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1819 to 1863 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$12,805 (2007)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Engine17.9 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power17.9 kWReference
Compression22:1Reference
Rated RPM2500Reference
Starter volts12Reference
Transmission
8-speed sync shuttleReference
hydrostaticReference
Gear Weight825 kgReference
Typesync shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)16.0 kWReference
PTO (claimed)14.9 kWReference
Typeopen centerReference
Valves1Reference
Pump flow22.0 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Rear lift1000 kgReference
Rear PTOtransmission (gear)Reference
Rear PTOlive (hydro)Reference
Rear PTO Type540Reference
Engine RPM540@2376Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Engine RPM2000@2526Reference
Dimensions
Weight1819 to 1863 poundsReference
Front tire7x12Reference
Rear tire9.5x16Reference
Ag front7x12Reference
Ag rear9.5x16Reference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear33x12.5-16.5Reference
Industrial front23x8.5-12Reference
Industrial rear12x16.5Reference
Length277 cmReference
Width137 cmReference
Hydro Weight845 kgReference
Mahindra 2415 attachments
60" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Battery AH35Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
60" Mower deck
Typemid-mount MahindraReference
Cutting width152 cmReference
Mahindra 1710B Backhoe
Backhoe typeMahindra 1710B BackhoeReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
