Tractor · 2008Unverified

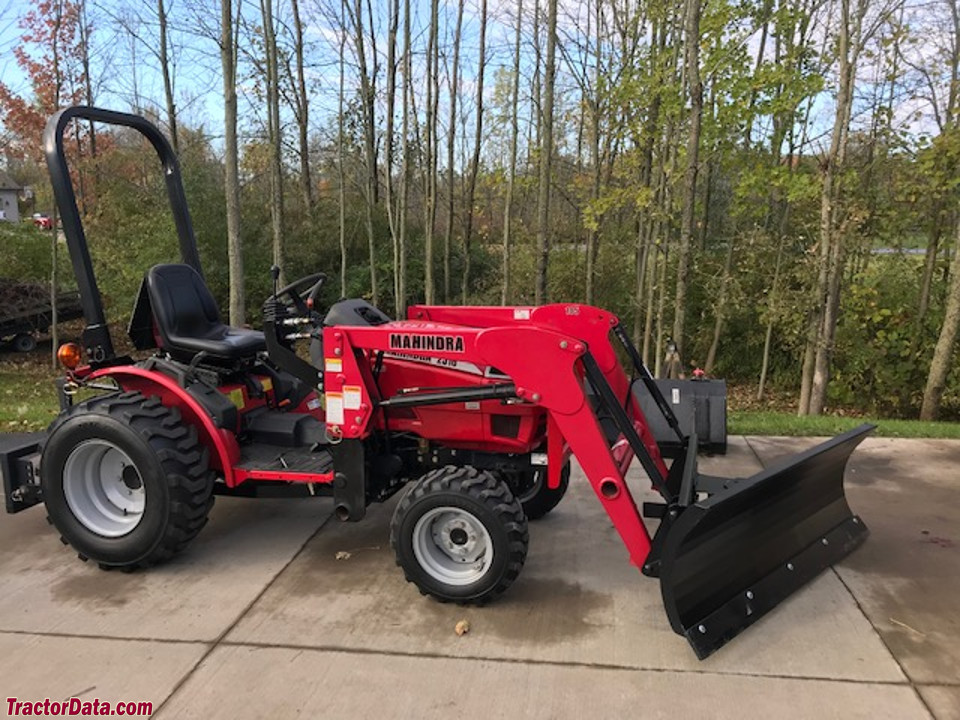

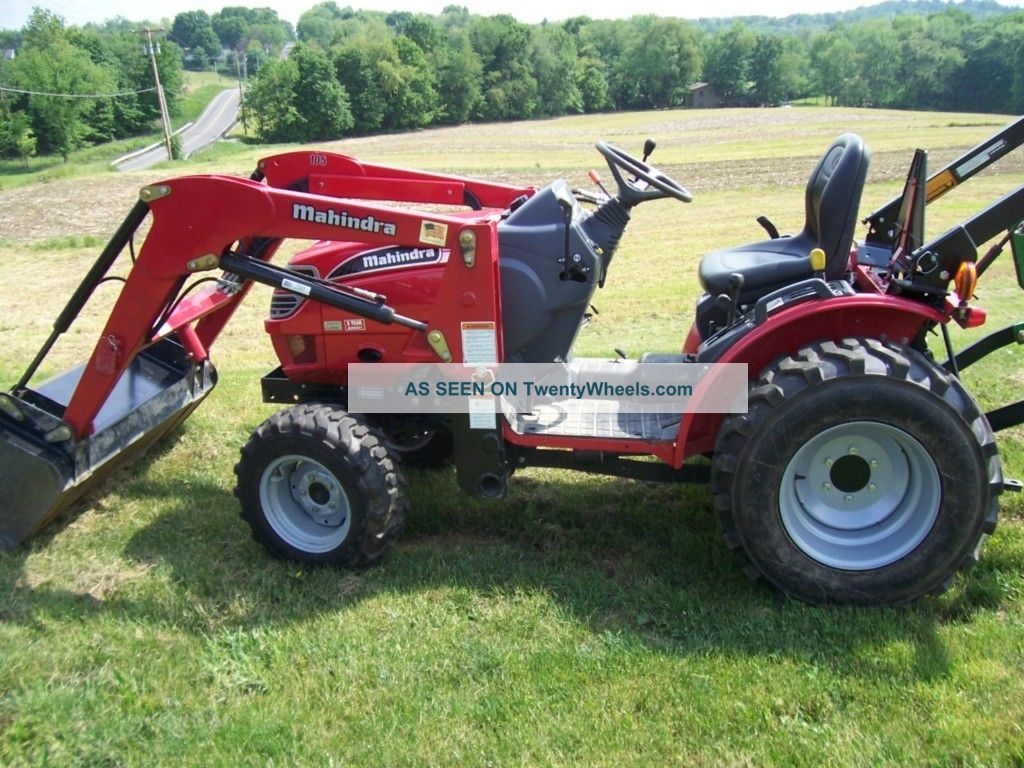

Mahindra 2516
Mahindra 2516 — 16 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1819 to 1863 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$13,195 (2009 hydro )Reference
Original price$12,750 (2013 shuttle )Reference
Original price$13,688 (2013 hydro )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Flat platform with folding ROPSReference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Engine18.6 kWReference
Mitsubishi S3L2Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power18.6 kWReference
Compression22:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed shuttleReference
hydrostaticReference
Gear Operating weight825 kgReference
TypeshuttleReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Hydro PTO (claimed)16.0 kWReference
Gear PTO (claimed)14.9 kWReference
Typeopen centerReference
Valves0 or 1Reference
Pump flow22.0 lpmReference
Steering flow10.2 lpmReference
Rear TypeIReference
Rear lift (at ends)1000 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Weight1819 to 1863 poundsReference
Industrial front23x8.5-12Reference
Industrial rear12x16.5Reference
Length277 cmReference
Width137 cmReference
Hydro Operating weight845 kgReference
Mahindra 2516 attachments
60" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Battery AH35Reference
Attachment overview
60" mid-mount mower deckReference
Front-end loaderReference
60" Mower deck
Typemid-mount MahindraReference
Cutting width152 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
