Tractor · 2016Unverified
Mahindra 2540
Mahindra 2540 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1490 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Compact Utility tractorReference
Original price was $23,220 in 2016Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine29.8 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
EmissionsTier IVReference
Power29.8 kWReference
Fuel systemdirect injectionReference
Compression19.5:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Typeopen centerReference
Rear valves1 or 2Reference
Pump flow31.0 lpmReference
Steering flow17.0 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2650Reference
Dimensions
Weight1490 kgReference
Front tire8.3x16Reference
Rear tire12.4x24Reference
Weight620 kgReference
Standard tires (ag)Front: 8.3x16. Rear: 12.4x24Reference
Industrial front10-16.5Reference
Industrial rear43x16-20Reference
Length303 cmReference
Width151 cmReference
Height (ROPS)239 cmReference
Mahindra 2540 attachments

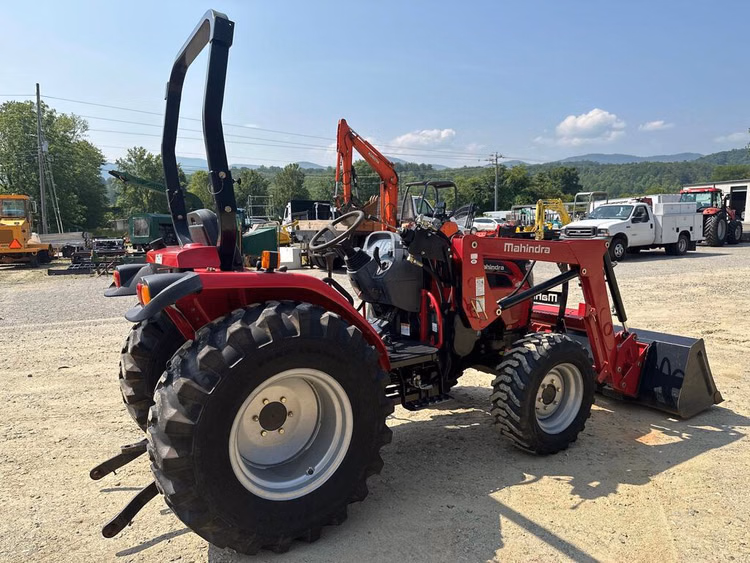

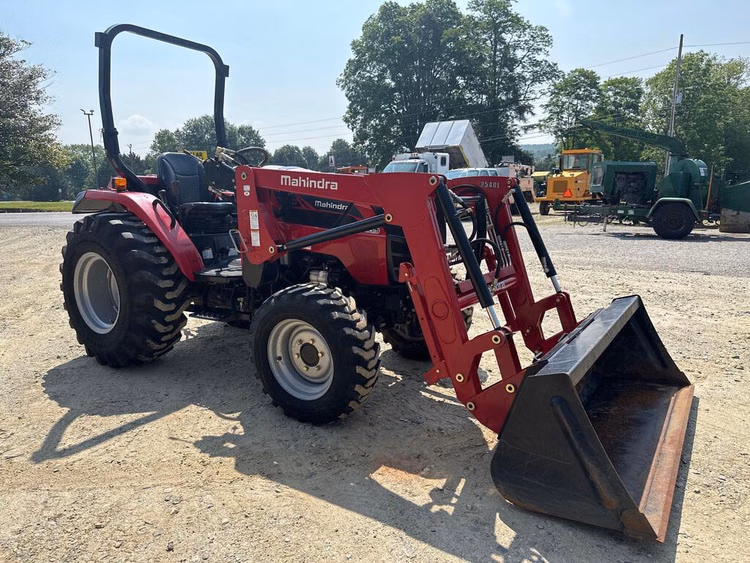

front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Charging volts12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Front-end loaderReference
BackhoeReference

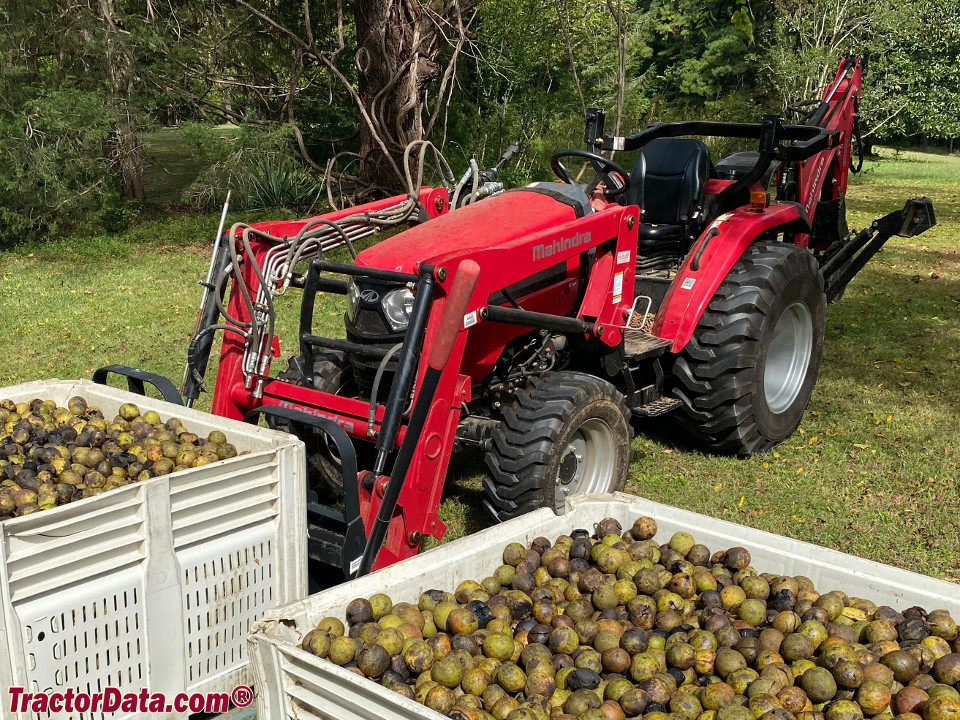

Mahindra 2540B Backhoe
Backhoe typeMahindra 2540B BackhoeReference
Transport height205 cmReference
Digging depth233 cmReference
2-Foot flat digging depth228 cmReference
Reach from pivot284 cmReference
Loading height220 cmReference
Bucket Rotation140°Reference
Swing Arc180°Reference
Bucket force1397 kgReference
Dipperstick force979 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
