Tractor · 2016Unverified

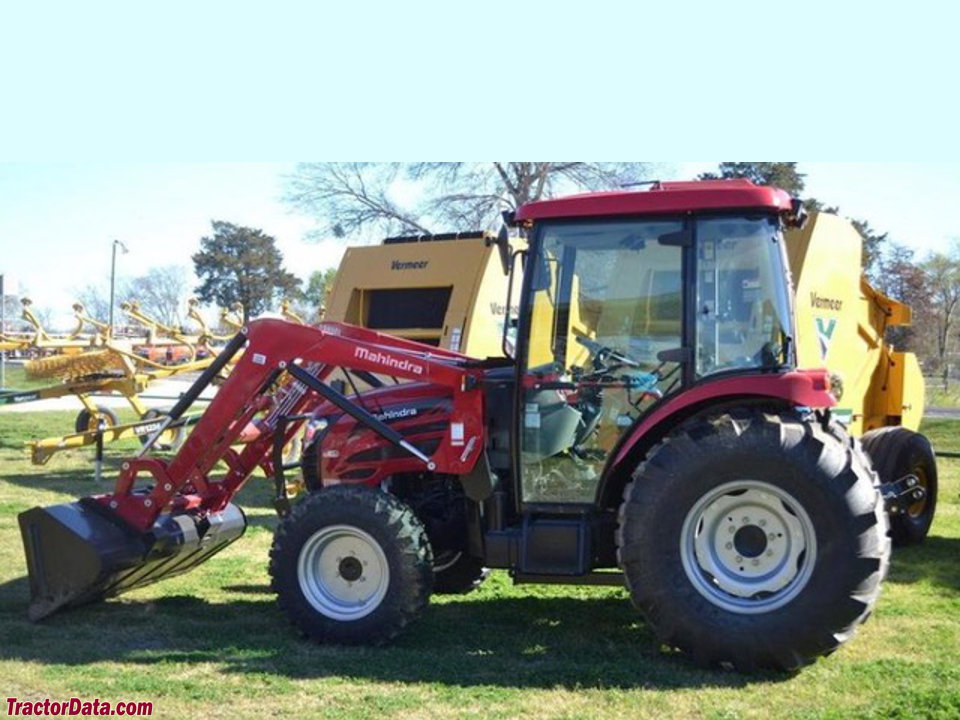

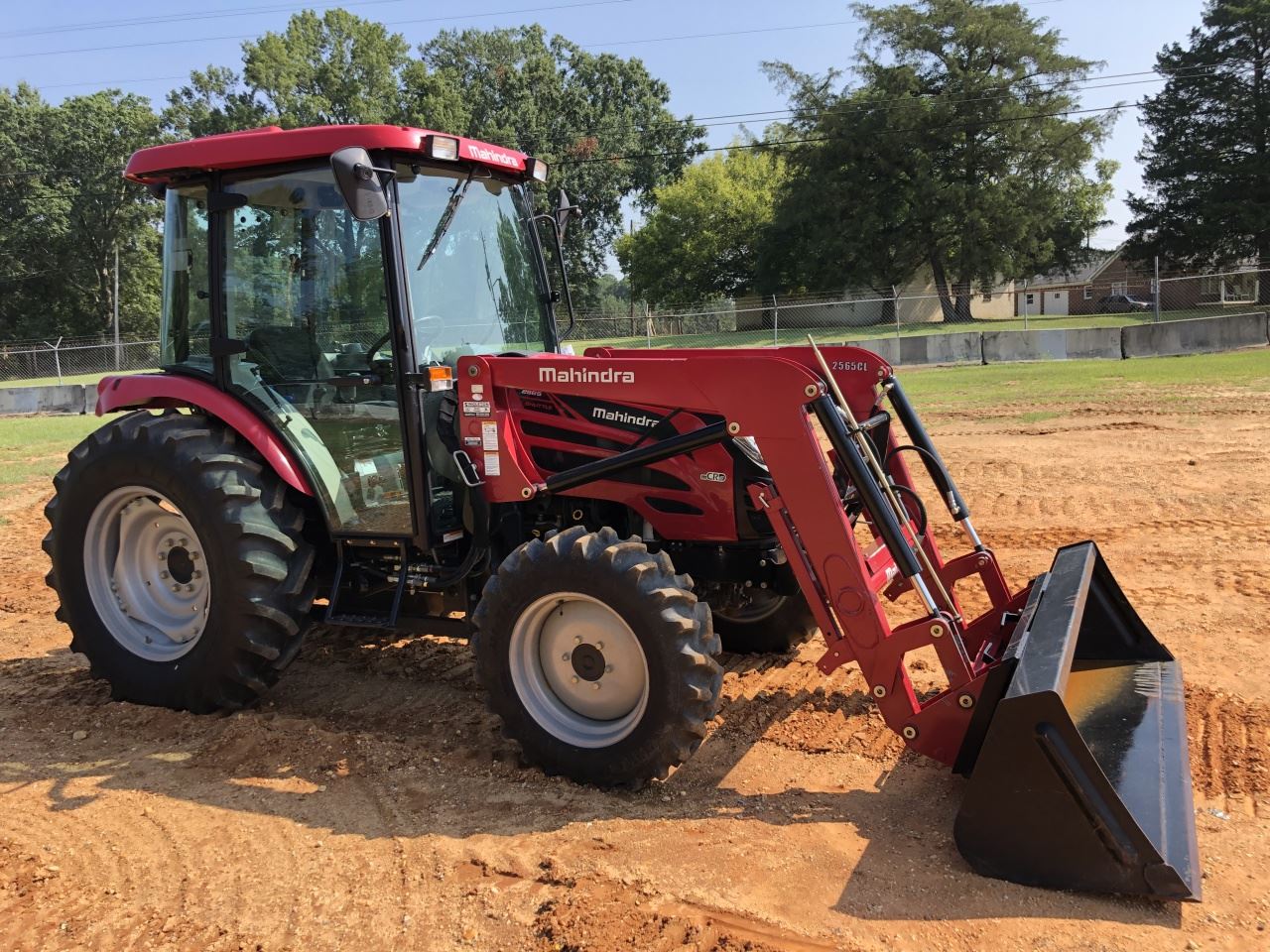

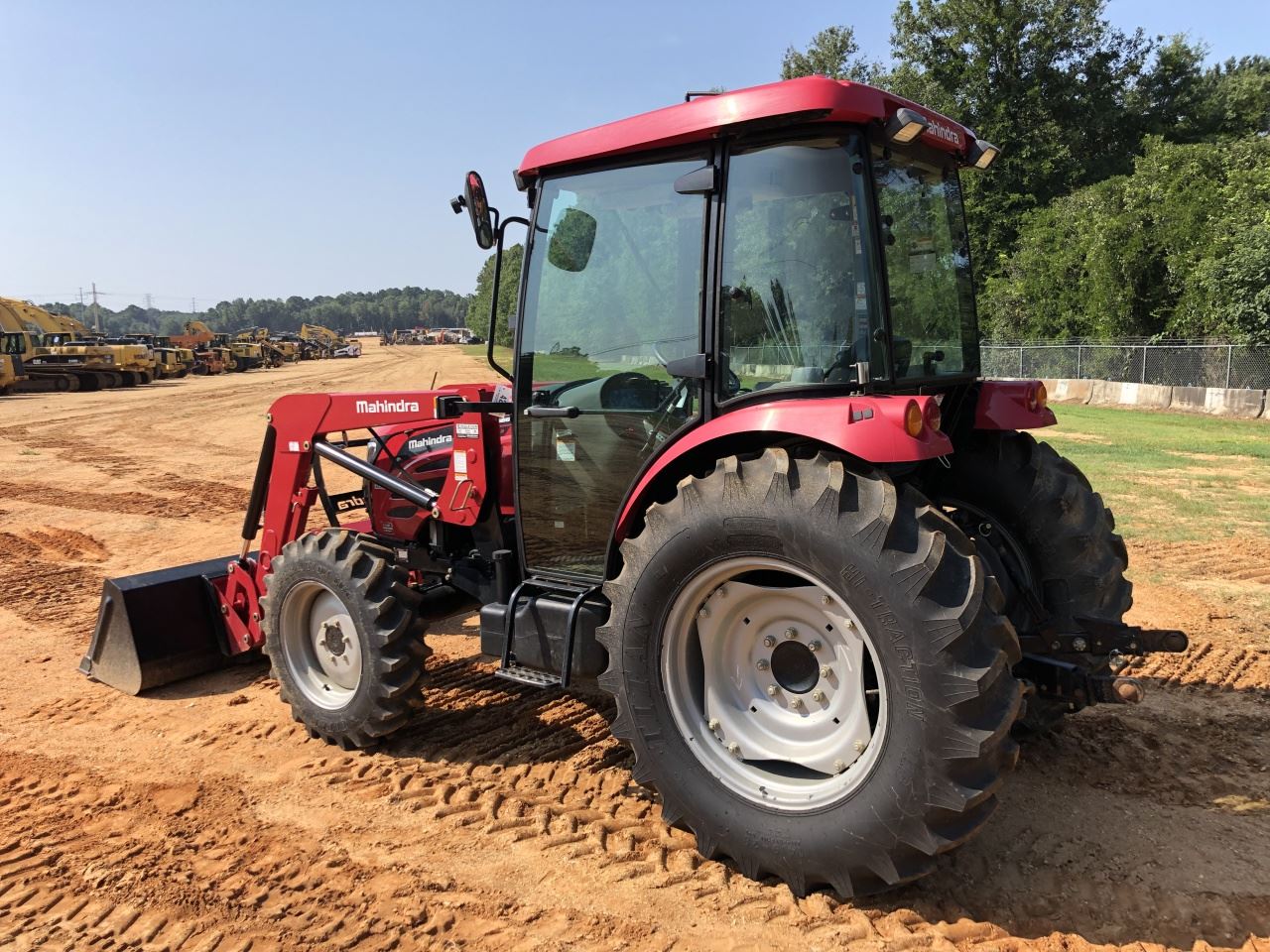

Mahindra 2565
Mahindra 2565 — Compact Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
2299 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Compact Utility tractorReference
Original price was $38,813 in 2016Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Engine
Mahindra 2.6L 3-cyl dieselReference
Fuel tank60.6 LReference
Engine48.5 kWReference
MahindraReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.6 LReference
Bore/Stroke96 x 122 mmReference
EmissionsTier IVReference
Power48.5 kWReference
Fuel systemdirect injectionReference
Compression17.2:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed shuttleReference
TypeshuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Typeopen centerReference
Rear valves1 or 2Reference
Pump flow41.6 lpmReference
Steering flow20.4 lpmReference
Rear TypeIIReference
Controlposition and draftcontrolReference
Rear lift1599 kgReference
Rear Armstelescopic stabilizersReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2300Reference
Dimensions
Weight2299 kgReference
Front tire9.5x20Reference
Rear tire14.9x28Reference
Weight646 kgReference
Standard tires (ag)Front: 9.5x20. Rear: 14.9x28Reference
Lawn/turf frontLSW305-521Reference
Lawn/turf rearLSW750-648Reference
Industrial front10.5/80x18Reference
Industrial rear18.4x24Reference
Length360 cmReference
Width181 cmReference
Height (cab)251 cmReference
Mahindra 2565 attachments
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps90Reference
Charging volts12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 75BH Backhoe
Backhoe typeMahindra 75BH BackhoeReference
Transport height236 cmReference
Digging depth294 cmReference
2-Foot flat digging depth293 cmReference
Reach from pivot388 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force2610 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
