Tractor · 2018Unverified

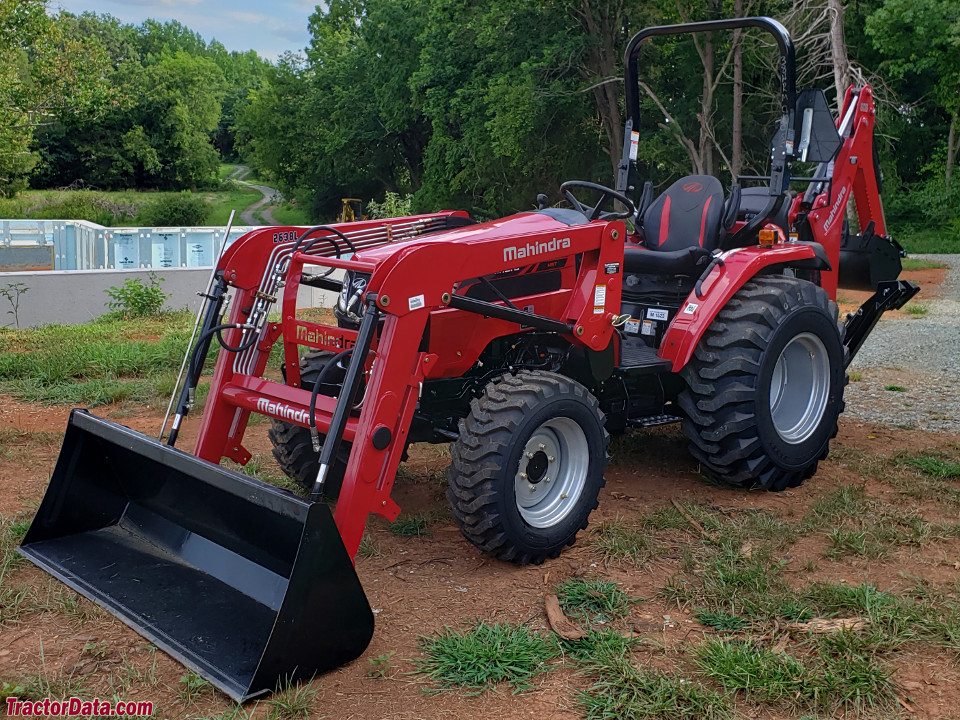

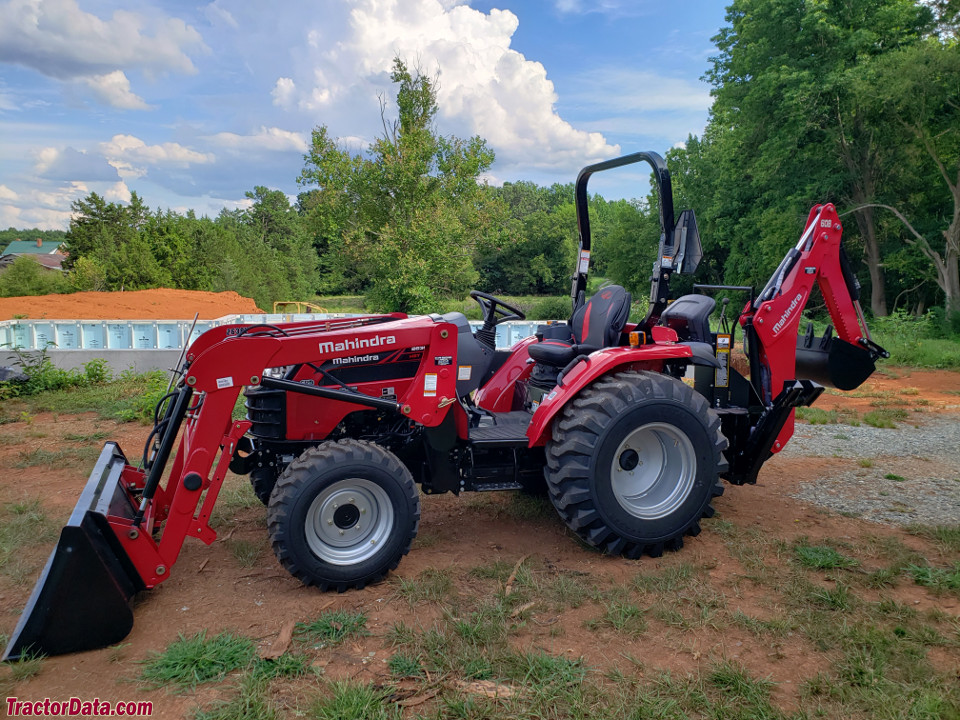

Mahindra 2638
Mahindra 2638 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
3130 to 3351 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Compact Utility tractorReference
Original price was $24,080 in 2018Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank34.1 LReference
Engine27.9 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
EmissionsTier IVReference
Power27.9 kWReference
Fuel systemdirect injectionReference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Typeopen centerReference
Rear valves1Reference
Pump flow28.8 lpmReference
Steering flow15.5 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1200 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2385Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Dimensions
Weight3130 to 3351 poundsReference
Front tire7-16Reference
Rear tire11.2-24Reference
Weight567 kgReference
Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Industrial front10-16.5Reference
Industrial rear43x16-20Reference
Length303 cmReference
Width160 cmReference
Height240 cmReference
ROPS Weight1419 kgReference
Cab Weight1520 kgReference
Ground clearance32 cmReference
Mahindra 2638 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference

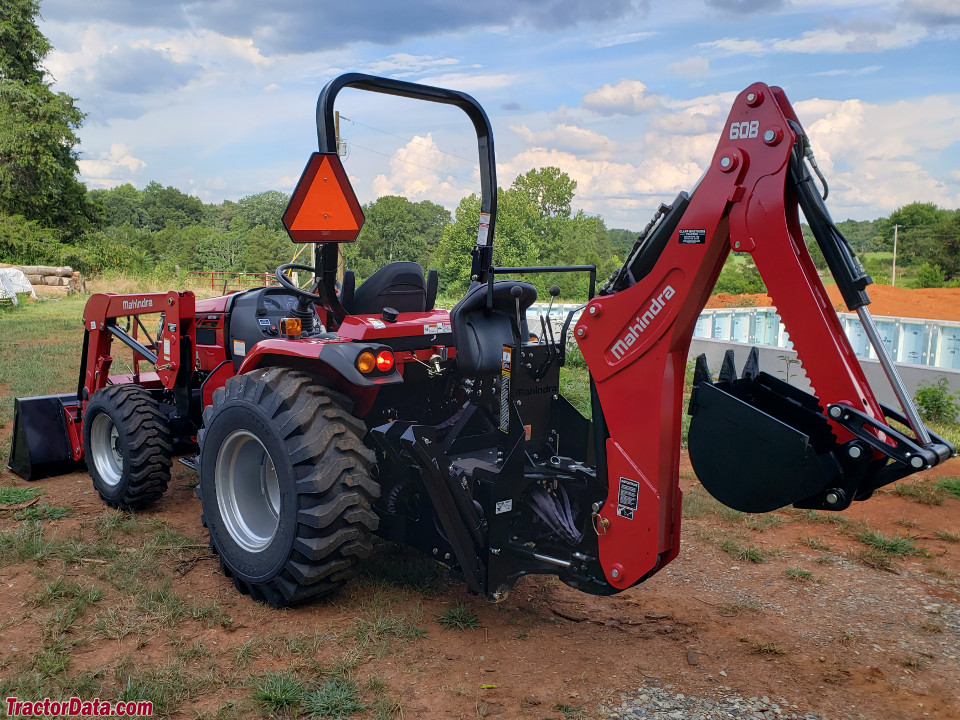

Mahindra 60B Backhoe
Backhoe typeMahindra 60B BackhoeReference
Transport height223 cmReference
Digging depth241 cmReference
2-Foot flat digging depth240 cmReference
Reach from pivot327 cmReference
Loading height185 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1559 kgReference
Dipperstick force1004 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
