Tractor · 2002Unverified

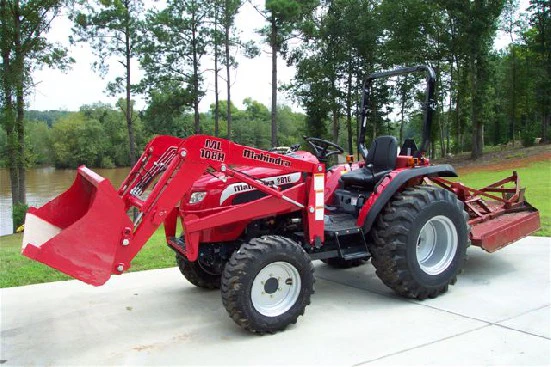

Mahindra 2810
Mahindra 2810 — 10 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
1389 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Compact Utility tractorReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Engine
Daedong 1.4L 3-cyl dieselReference
Engine20.9 kWReference
Daedong 3A139Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke80 x 92 mmReference
Power20.9 kWReference
Fuel systemindirect injectionReference
Compression22:1Reference
Rated RPM2700Reference
Starter volts12Reference
Transmission
12-speed synchomesh shuttleReference
hydrostaticReference
Gear Length314 cmReference
Typesynchomesh shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)17.2 kWReference
Typeopen centerReference
Gear Pump flow22.3 lpmReference
Hydro Pump flow23.8 lpmReference
Gear Steering flow11.6 lpmReference
Hydro Steering flow17.2 lpmReference
Rear TypeIReference
Controlposition controlReference
Gear Rear lift941 kgReference
Hydro Rear lift943 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Engine RPM540@2541 (gear)Reference
Engine RPM540@2775 (hydro)Reference
Mid PTOindependent (hydro only)Reference
Mid PTO Type2000Reference
Engine RPM2000@2650Reference
Dimensions
Weight1389 kgReference
Hydro Length289 cmReference
Width132 cmReference
Mahindra 2810 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Charging volts12Reference
Battery volts12Reference
Battery AH75Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
