Tractor · 2006Unverified

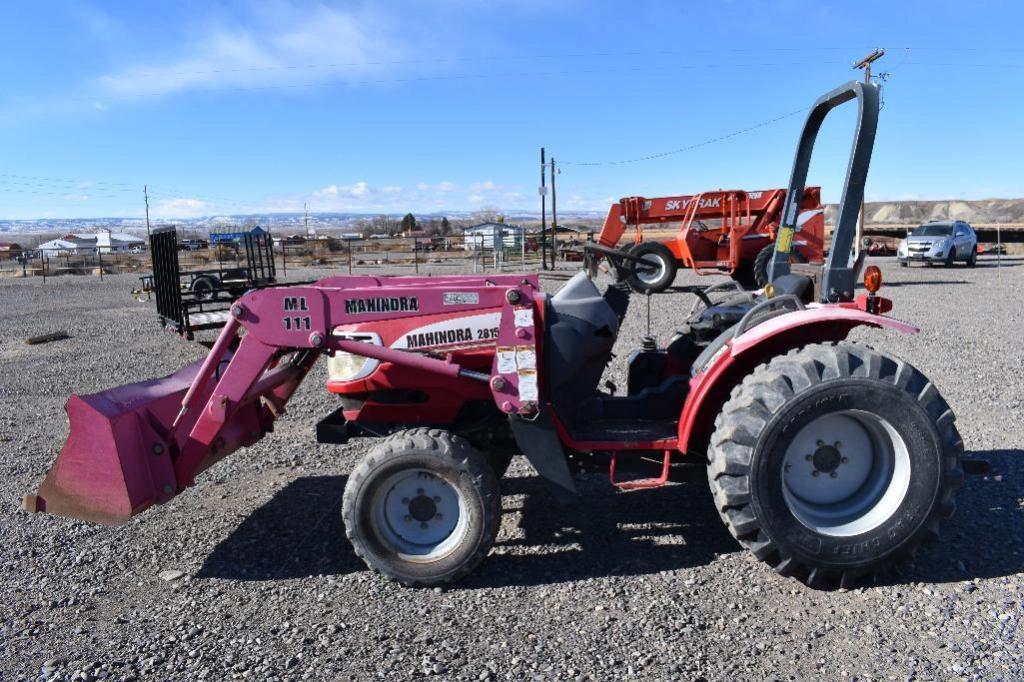

Mahindra 2815
Mahindra 2815 — 15 Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1158 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$10,660 (2009)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Engine20.9 kWReference
Mitsubishi S3L3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power20.9 kWReference
Compression22.5:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)16.4 kWReference
Typeopen centerReference
Valves0 or 1Reference
Total flow28.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2376Reference
Mid PTO Type2000Reference
Engine RPM2000@2525Reference
Dimensions
Weight1158 kgReference
Front tire7x16Reference
Rear tire11.2x24Reference
Ag front7x16Reference
Ag rear11.2x24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear13.6x16Reference
Industrial front27x8.5-15Reference
Industrial rear15x19.5Reference
Length308 cmReference
Width151 cmReference
Operating weight1158 kgReference
Mahindra 2815 attachments
72" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH55Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
72" Mower deck
Typemid-mount MahindraReference
Cutting width182 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
