Tractor · 2003Unverified

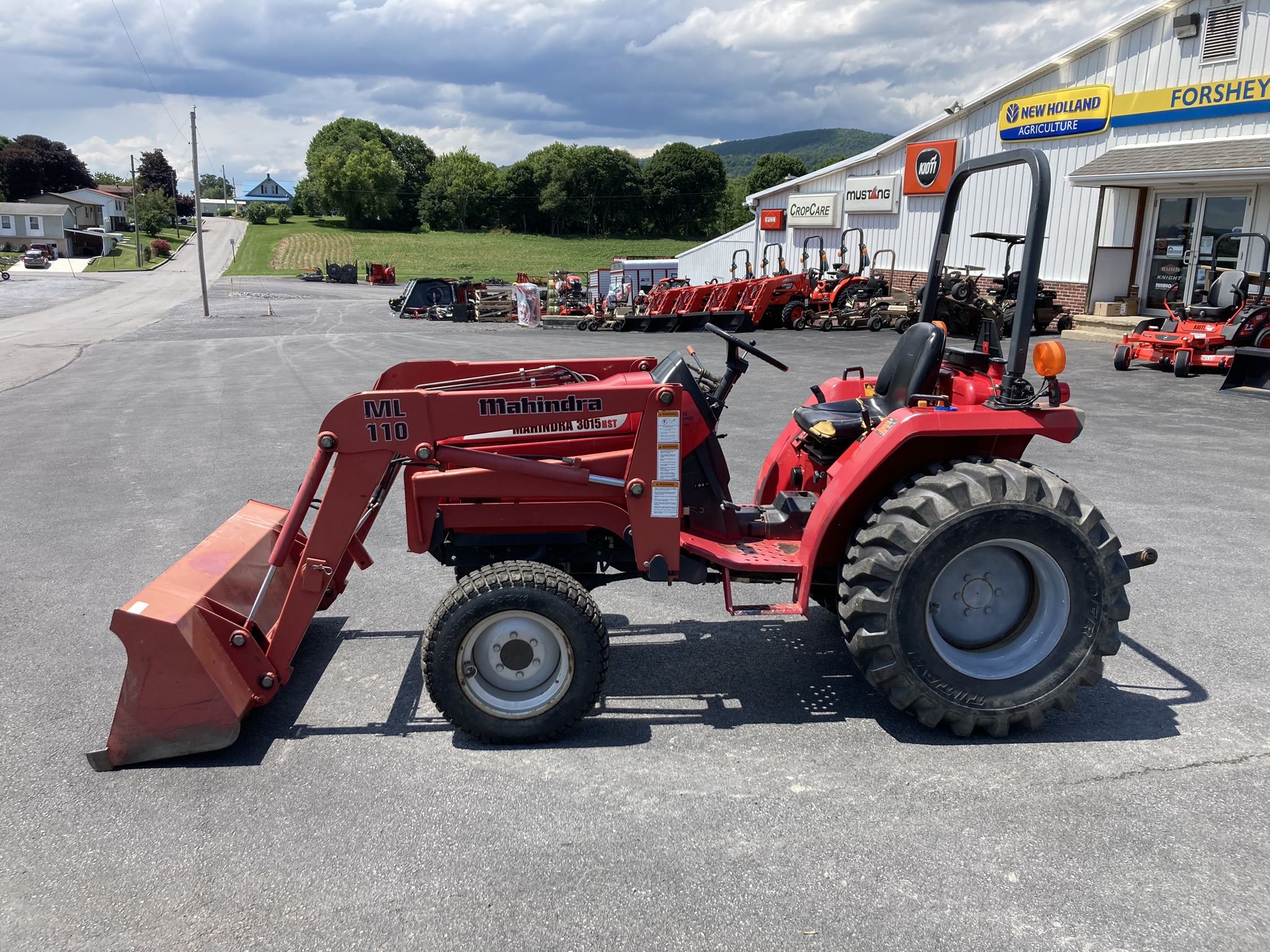

Mahindra 3015
Mahindra 3015 — 15 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
1179 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Engine22.4 kWReference
Mitsubishi K3M-DReference
dieselReference
3-cylinderReference
liquid-cooledReference
Early naturally-aspirated engine.Reference
Displacement1.5 LReference
Bore/Stroke84 x 90 mmReference
Power22.4 kWReference
Compression18:1Reference
Rated RPM2750Reference
Starter volts12Reference
Mitsubishi K3M-Y2DTReference
turbocharged dieselReference
Turbocharged engine added to the 3015 to meet emissions regulations.Reference
Fuel systemindirect injectionReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)17.9 kWReference
Typeopen centerReference
Valves1Reference
Pump flow29.9 lpmReference
Steering flow13.6 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1000 kgReference
Rear PTOliveReference
Clutchdry single plateReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTO Type2000Reference
Engine RPM2000@2632Reference
Dimensions
Weight1179 kgReference
Front tire8x16Reference
Rear tire12.4x24Reference
Ag front8x16Reference
Ag rear12.4x24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear41x14-20Reference
Industrial front27x8.5-15Reference
Industrial rear15x19.5Reference
Length292 cmReference
Width136 cmReference
Mahindra 3015 attachments
72" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH46Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
72" Mower deck
Typemid-mount MahindraReference
Cutting width182 cmReference
Mahindra Backhoe
Backhoe typeMahindra BackhoeReference
Digging depth294 cmReference
2-Foot flat digging depth233 cmReference
Reach from pivot322 cmReference
Loading height160 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
