Tractor · 2011Unverified

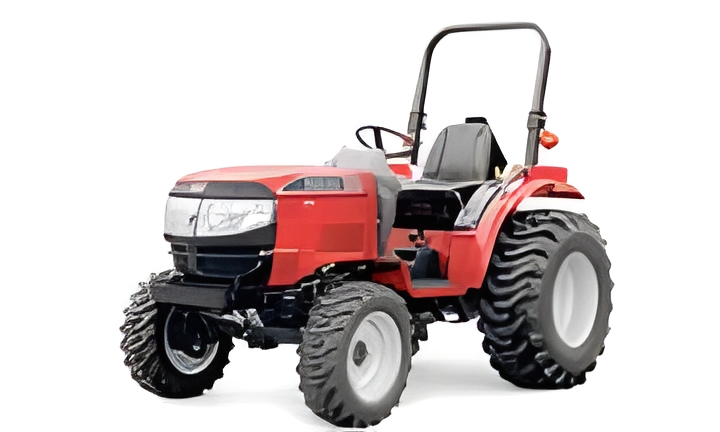

Mahindra 3016
Mahindra 3016 — 16 Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2437 to 2459 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$15,750 (2013 shuttle )Reference
Original price$16,810 (2013 hydro )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Mitsubishi 1.3L 3-cyl dieselReference
Fuel tank26.9 LReference
Engine20.9 kWReference
MitsubishiReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.3 LReference
Bore/Stroke78 x 92 mmReference
Power20.9 kWReference
Fuel systemindirect injectionReference
Compression22:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
hydrostaticReference
Gear Operating weight1105 kgReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)17.2 kWReference
Hydro PTO (claimed)15.7 kWReference
Typeopen centerReference
Valves1Reference
Pump flow29.5 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift1200 kgReference
Gear Rear PTOindependentReference
Hydro Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2376Reference
Mid PTOoptionalReference
Mid PTO Type2000Reference
Engine RPM2000@2525Reference
Dimensions
Weight2437 to 2459 poundsReference
Front tire7x16Reference
Rear tire11.2x24Reference
Weight557 kgReference
Standard tires (ag)Front: 7x16. Rear: 11.2x24Reference
Lawn/turf front25x8.5-14Reference
Lawn/turf rear13.6x16Reference
Industrial front27x8.5-15Reference
Industrial rear15x19.5Reference
Length308 cmReference
Width151 cmReference
Hydro Operating weight1115 kgReference
Mahindra 3016 attachments

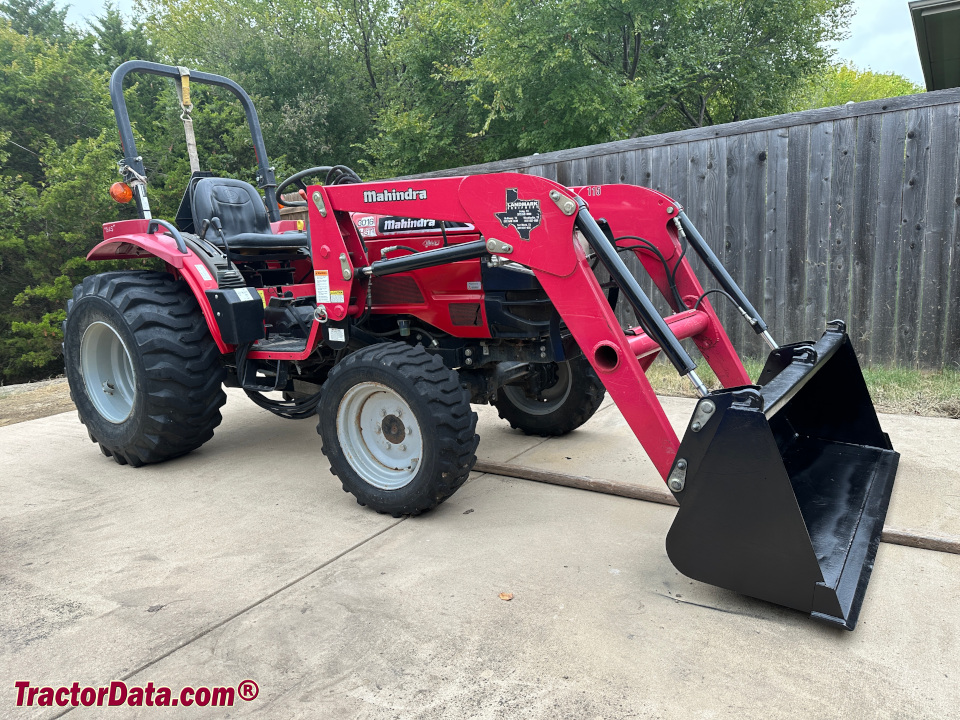

front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Battery AH46Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 3715 Backhoe
Backhoe typeMahindra 3715 BackhoeReference
Digging depth238 cmReference
2-Foot flat digging depth233 cmReference
Reach from pivot322 cmReference
Loading height160 cmReference
Bucket Rotation175°Reference
Swing Arc180°Reference
Bucket force1315 kgReference
Dipperstick force498 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
