Tractor · 2006Unverified

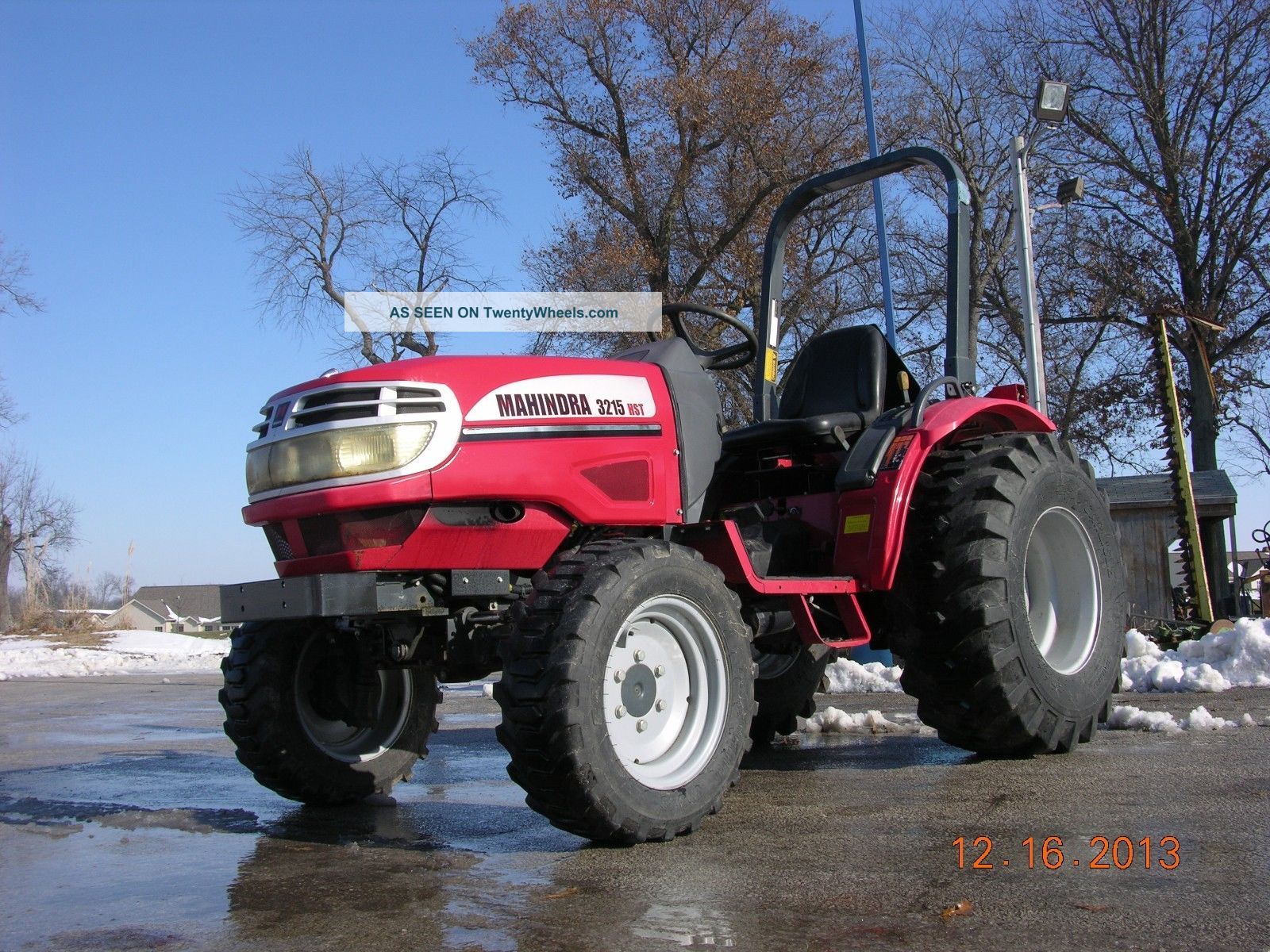

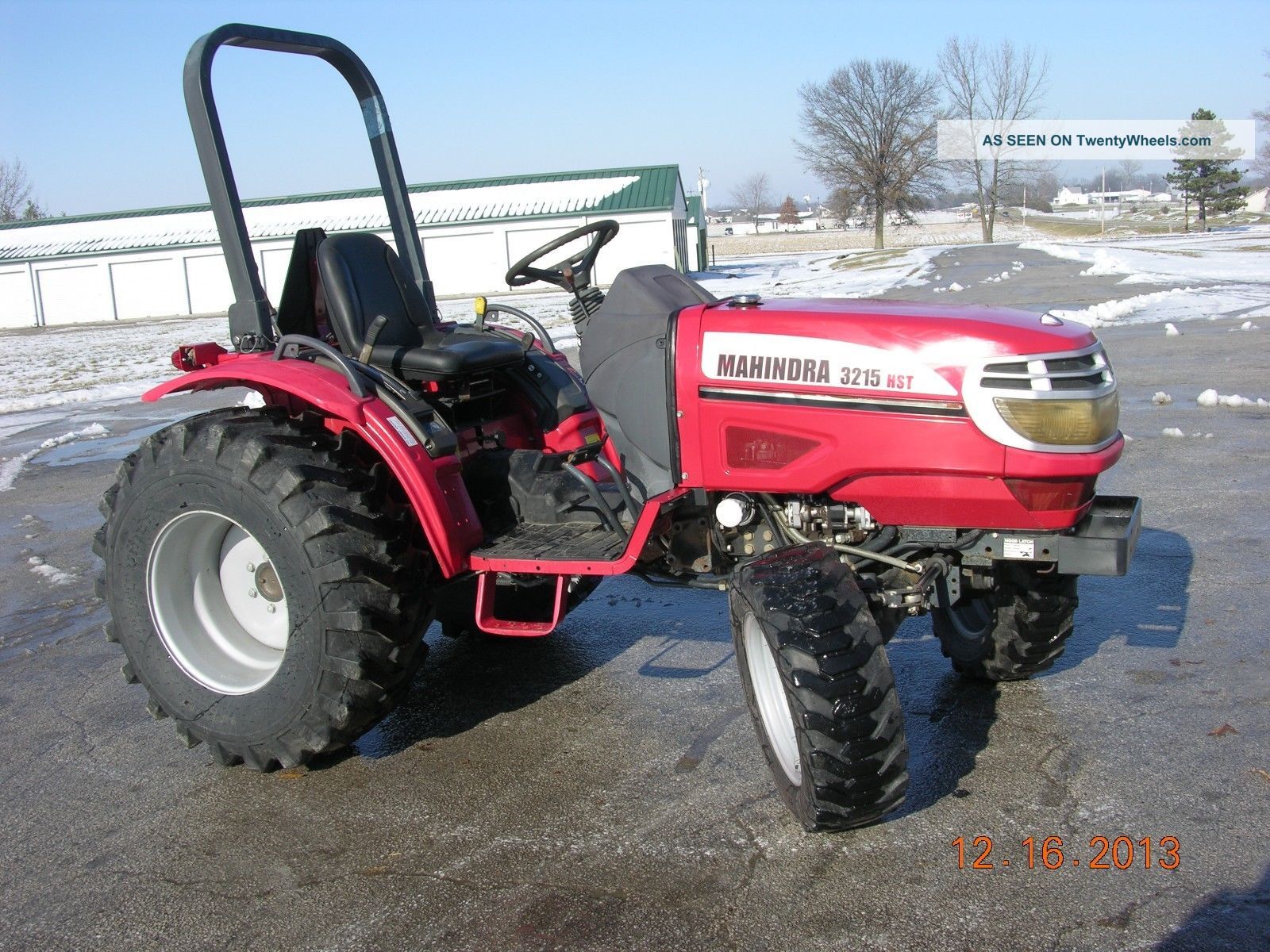

Mahindra 3215
Mahindra 3215 — 15 Series · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
2544 to 2566 pounds
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price$16,640 (2009 - hydro)Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
ROPSReference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Engine23.9 kWReference
Mitsubishi S3L3Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power23.9 kWReference
Fuel systemindirect injectionReference
Compression22.5:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
8-speed gearReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
TypegearReference
Gears8 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
PTO (claimed)20.1 kWReference
Typeopen centerReference
Valves0 or 1Reference
Total flow28.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)1200 kgReference
Rear PTOlive (gear)Reference
Rear PTOindependent (hydro)Reference
Rear PTO Type540Reference
Engine RPM540@2376Reference
Mid PTO Type2000Reference
Engine RPM2000@2525Reference
Dimensions
Weight2544 to 2566 poundsReference
Front tire7x16Reference
Rear tire11.2x24Reference
Ag front7x16Reference
Ag rear11.2x24Reference
Lawn/turf front27x10.5-15Reference
Lawn/turf rear41x14-40Reference
Industrial front27x8.5-15Reference
Industrial rear15x19.5Reference
Length308 cmReference
Width151 cmReference
Operating weight1153 kgReference
Operating weight1163 kgReference
Mahindra 3215 attachments
72" mid-mount mower deckReference
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps46Reference
Battery volts12Reference
Battery AH55Reference
Attachment overview
72" mid-mount mower deckReference
Front-end loaderReference
72" Mower deck
Typemid-mount MahindraReference
Cutting width182 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
