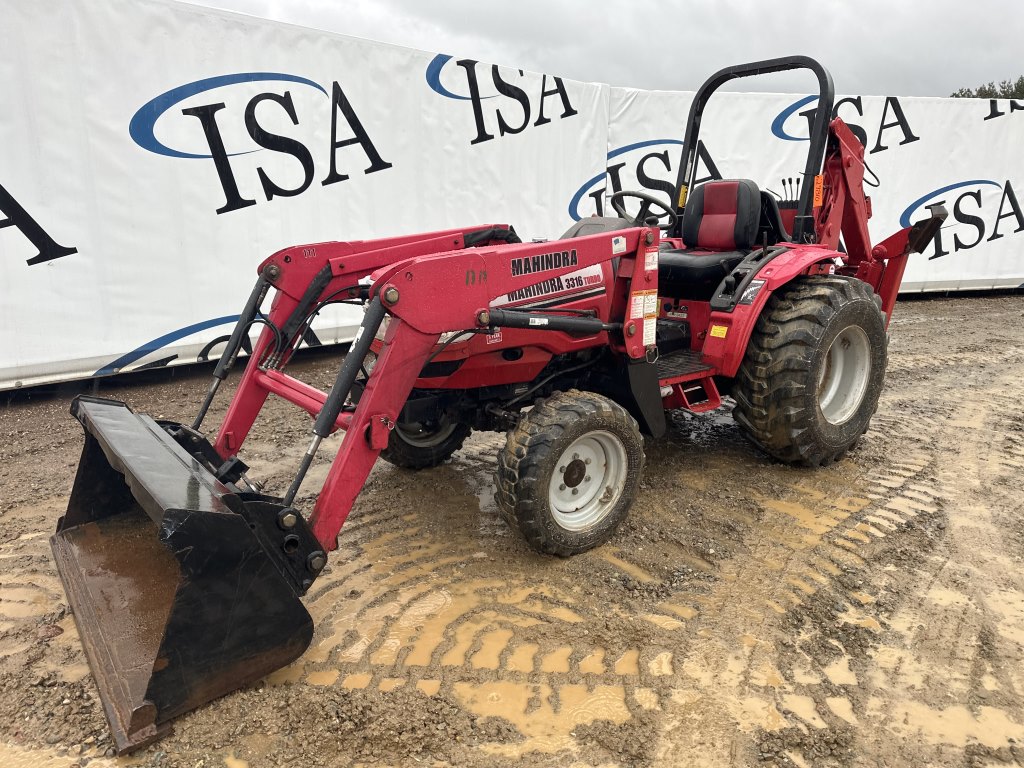

The Mahindra 3316 is a tractor model with a rated power of 25 hp, positioning it at the lighter end of its class. Manufactured from 2008 to 2010, this model features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The operating weight of the Mahindra 3316 is listed as 2544 to 2566 pounds. It is designed for use in operations of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Max power
33 hp
Weight
2544 to 2566 pounds
Catalogue coverage
Variants represented
2
Richest spec table
79 rows
Recorded power
25 hp
Recorded weight
1153 kg
Transmissions
8-speed
Production years
2008-2010
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerMitsubishiReference
Compact Utility tractorReference
Original price was $17,355 in 2009 with hydroReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Flat platform with folding ROPSReference
Engine
Mitsubishi 1.5L 3-cyl dieselReference
Engine24.6 kWReference
Mitsubishi S3L3Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power24.6 kWReference
Compression22.5:1Reference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Fuel TypedieselReference
No of Cylinders3 cylinderReference
Rated engine speed2,500 RPMReference
Compression ratio22.5:1Reference
Cooling systemliquid-cooledReference
Transmission
8-speedReference
hydrostaticReference
Gears8 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
Transmission TypeHSTReference
forward and reverse options8 F and 8 R | Hydrostatic : Infinite (3-range) F and RReference
Wheel Drive4WDReference
PTO & Hydraulics
PTO (claimed)18.6 kWReference
PTO (claimed)20.1 kWReference
Typeopen centerReference
Valves0 or 1Reference
Pump flow28.0 lpmReference
Steering flow12.9 lpmReference
Rear TypeIReference
Rear lift (at ends)1200 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Mid PTO Type2000Reference
Dimensions
Weight2544 to 2566 poundsReference
Industrial front27x8.5-15Reference
Industrial rear15x19.5Reference
Length308 cmReference
Width151 cmReference
Operating weight1153 kgReference
Operating weight1163 kgReference
Mahindra 3316 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH46Reference
Battery size46 AHReference
General
Make & ModelMitsubishiReference
Rollover protective structureFlat platform with folding ROPSReference
