Tractor · 1999Unverified

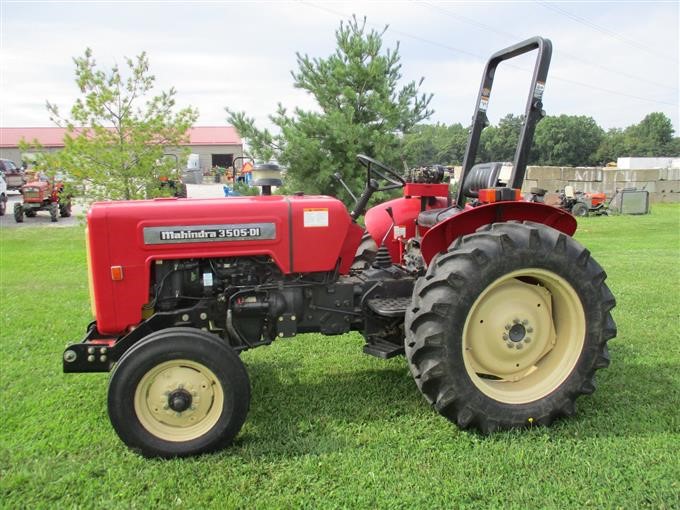

Mahindra 3505
Mahindra 3505 — 05 Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
1769 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post folding ROPS.Reference
Engine
Mahindra 1.9L 3-cyl dieselReference
Engine26.1 kWReference
Mahindra MDI 1895EReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke89 x 102 mmReference
Power26.1 kWReference
Fuel systemdirect injectionReference
Compression19:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)20.1 kWReference
Typeopen centerReference
Valves1Reference
Pump flow31.4 lpmReference
Rear TypeII/IReference
Rear lift1598 kgReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Engine RPM540@1980Reference
Engine RPM1000@2043Reference
Dimensions
Weight1769 kgReference
Front tire6x16Reference
Rear tire11.2x28Reference
Ag front6x16Reference
Ag rear11.2x28Reference
Length282 cmReference
Ground clearance33 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
