Tractor · 2015Unverified

Mahindra 3550

Name: Mahindra 3550
Brand: Mahindra

Mahindra 3550 — Utility tractor · 40 hp. Reference specifications; pending source verification.

The Mahindra 3550 is a compact tractor with a rated output of 40 hp, making it a suitable option for smaller-scale operations. Produced from 2015 to 2019, this model features a 4-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission for four-wheel drive. The tractor's weight ranges from 4939 to 6189 pounds, and is designed to handle tasks on areas of approximately up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Max power

49 hp

Weight

4939 to 6189 pounds

Catalogue coverage

Variants represented

Richest spec table

120 rows

Recorded power

40 hp

Recorded weight

1446 kg

Transmissions

12-speed power shuttle

Production years

2015-2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Utility tractorReference

Original price$31,063 (2016 shuttle ROPS )Reference

Original price$32,313 (2016 hydrostatic ROPS )Reference

Original price$40,375 (2016 shuttle cab )Reference

Original price$41,625 (2016 hydrostatic cab )Reference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post foldable ROPS. Cab available with air-conditioning.Reference

Engine

Mahindra 2.7L 4-cyl dieselReference

ROPS Fuel tank42.8 LReference

Cab Fuel tank54.9 LReference

Engine36.5 kWReference

MahindraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke89 x 110 mmReference

EmissionsTier IVReference

Power36.5 kWReference

Fuel systemdirect injectionReference

Compression19.5:1Reference

Rated RPM2800Reference

Torque140.5 NmReference

Torque RPM1800Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,800 RPMReference

Emissions complianceTier IVReference

Engine torque at rated speed47 kgReference

Bore and stroke3.50x4.33 inchesReference

Compression ratio19.5:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed power shuttleReference

hydrostaticReference

Typepower shuttleReference

Gears12 forward and reverseReference

Clutchwet discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypePower ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

Shuttle PTO (claimed)29.8 kWReference

Hydro PTO (claimed)29.5 kWReference

Typeopen centerReference

Rear valves1Reference

Pump flow41.6 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Controlposition and draft controlReference

Rear lift1401 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2404Reference

Dimensions

Weight4939 to 6189 poundsReference

Front tire9.5-20Reference

Rear tire16.9-24Reference

Weight1446 kgReference

Standard tires (ag)Front: 9.5-20. Rear: 16.9-24Reference

Lawn/turf front31x13.50-15Reference

Lawn/turf rear21.5L-16.1Reference

Industrial front14x17.5Reference

Industrial rear19.5Lx24Reference

Length327 cmReference

Width191 cmReference

Height (ROPS)249 cmReference

Height (cab)228 cmReference

Shuttle ROPS2240 kgReference

Hydro ROPS2444 kgReference

Shuttle cab2603 kgReference

Hydro cab2807 kgReference

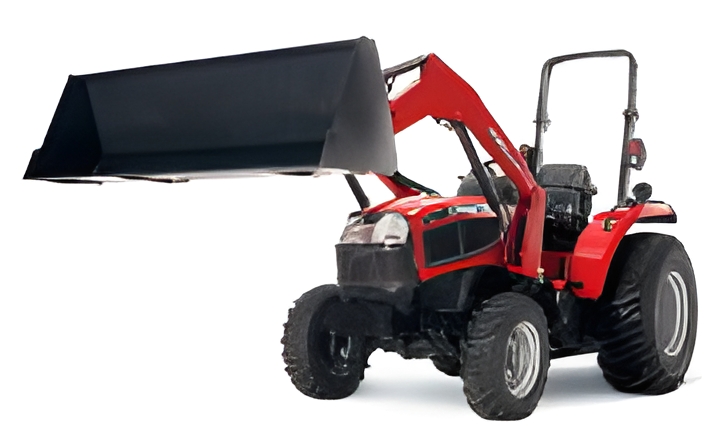

Mahindra 3550 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

ROPS Charging amps45Reference

Cab Charging amps120Reference

Charging volts12Reference

Battery volts12Reference

Battery AH96Reference

Battery size96 AHReference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra 50B Backhoe

Backhoe typeMahindra 50B BackhoeReference

Digging depth292 cmReference

2-Foot flat digging depth289 cmReference

Reach from pivot391 cmReference

Loading height210 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force2590 kgReference

Dipperstick force1446 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post foldable ROPSReference

Capacities

Capacity166.6 ciReference

Fuel tank54.9 LReference

Power

Max Power49 hpReference

PTO

PTO Power40 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,404 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1 ValveReference

Steering & Implements flow5 gpm (11 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,401.6 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Height Over Cab228.1 cmReference

Height Over ROPS249.2 cmReference

Overall Length327.4 cmReference

Overall Width191.5 cmReference

Overall weight2,444.4 kgReference

Operator station

Cab AvailabilityCab available with air-conditioning.Reference

Seat SuspensionTRUEReference
