Tractor · 2020Unverified

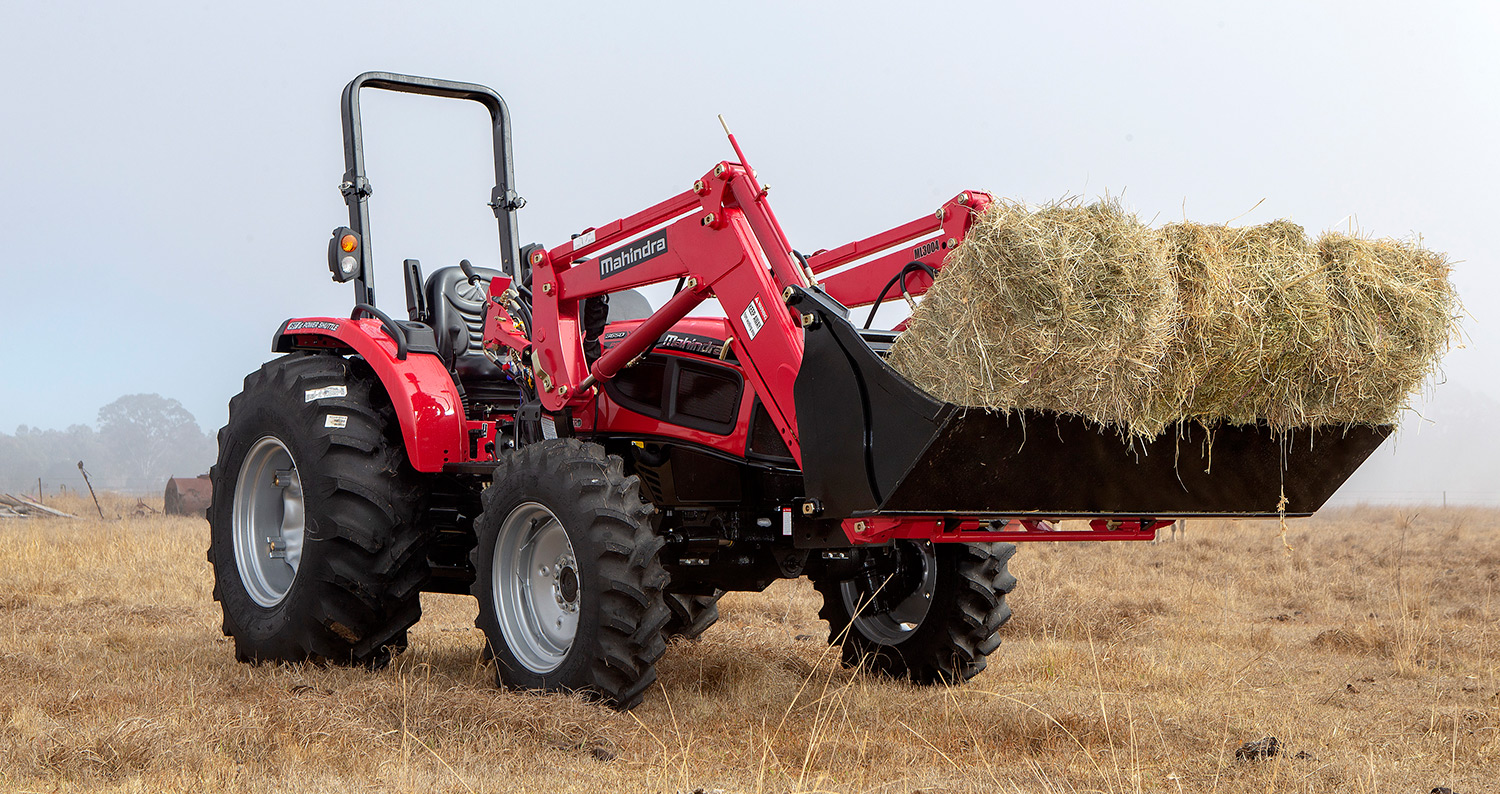

Mahindra 3650
Mahindra 3650 — Compact Utility tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Weight
498 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with air-conditioning.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
ROPS Fuel tank42.8 LReference
Cab Fuel tank54.9 LReference
Engine36.5 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
Power36.5 kWReference
Fuel systemdirect injectionReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed power shuttleReference
hydrostaticReference
Typepower shuttleReference
Gears12 forward and reverseReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Hydro PTO (claimed)29.5 kWReference
Gear PTO (claimed)29.8 kWReference
Typeopen centerReference
Rear valves1Reference
Pump flow41.6 lpmReference
Total flow60.6 lpmReference
Rear TypeII/IReference
Rear lift1401 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2405Reference
Dimensions
Wheelbase190 cmReference
Weight498 kgReference
Length327 cmReference
Height (ROPS)250 cmReference
Height (cab)254 cmReference
Ground clearance34 cmReference
Mahindra 3650 attachments
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps45Reference
Cab Charging amps90Reference
Charging volts12Reference
Battery CCA925Reference
Battery volts12Reference
Mahindra 65B Backhoe
Backhoe typeMahindra 65B BackhoeReference
Bucket width45 cmReference
Digging depth284 cmReference
2-Foot flat digging depth279 cmReference
Bucket force1766 kgReference
Dipperstick force1069 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
