Tractor · 1999Unverified

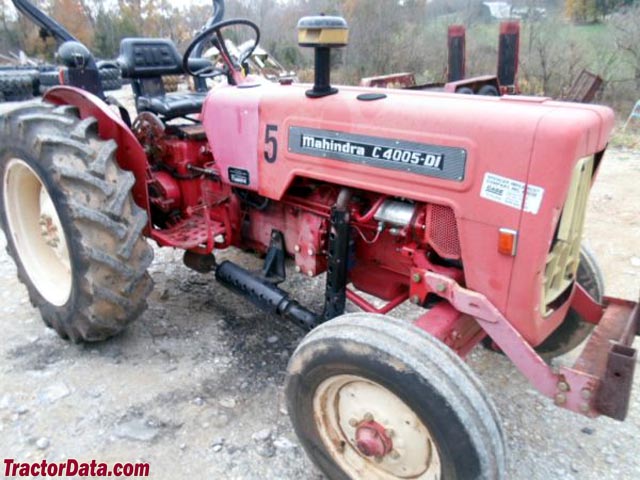

Mahindra 4005
Mahindra 4005 — 05 Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1821 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post folding ROPS.Reference
Engine
Mahindra 2.4L 4-cyl dieselReference
Engine29.5 kWReference
Mahindra MDI 2385EReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 96 mmReference
Power29.5 kWReference
Fuel systemdirect injectionReference
Compression17:1Reference
Rated RPM2300Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)23.5 kWReference
Typeopen centerReference
Valves1Reference
Pump flow31.4 lpmReference
Rear TypeII/IReference
Rear lift1598 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2058Reference
Dimensions
Weight1821 kgReference
Front tire6x16Reference
Rear tire12.4x28Reference
Ag front6x16Reference
Ag rear12.4x28Reference
Length298 cmReference
Ground clearance8 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
