Tractor · 2012Unverified

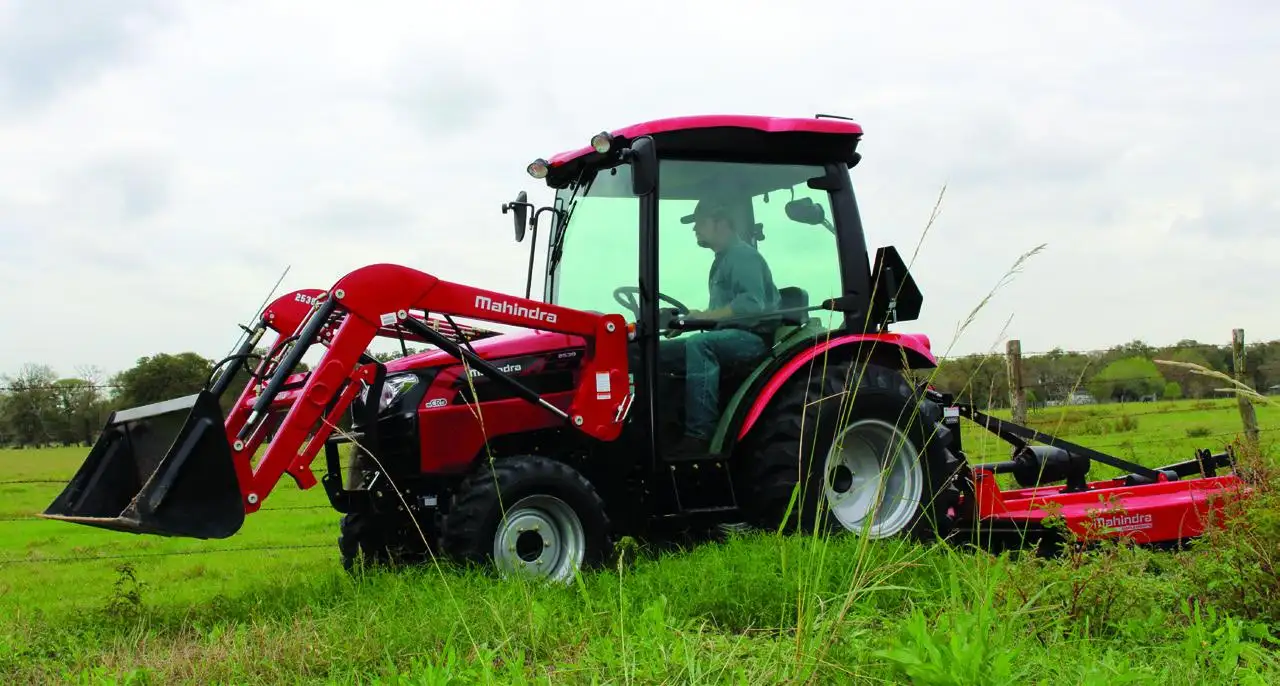

Mahindra 4010

Name: Mahindra 4010
Brand: Mahindra

Mahindra 4010 — 10 Series · 31 hp. Reference specifications; pending source verification.

The Mahindra 4010 is a tractor with a rated power output of 31 hp, positioning it at the lighter end of its class. It was manufactured from 2012 to 2015. The tractor features a 3-cylinder diesel liquid-cooled engine and four-wheel drive with a hydrostatic transmission. Its operating weight is listed at 1390 kg, making it suitable for operations up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

31 hp

Max power

38 hp

Weight

1390 kg

Catalogue coverage

Variants represented

Richest spec table

98 rows

Recorded power

31 hp

Recorded weight

1390 kg

Transmissions

9-speed constant mesh

Production years

2012-2015

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Compact Utility tractorReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Daedong 1.8L 3-cyl dieselReference

Fuel tank34.1 LReference

Engine28.3 kWReference

Daedong 3B183LWReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.8 LReference

Bore/Stroke87 x 102 mmReference

Power28.3 kWReference

Compression22:1Reference

Rated RPM2600Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,600 RPMReference

Bore and stroke3.43x4.03 inchesReference

Compression ratio22:1Reference

Cooling systemliquid-cooledReference

Transmission

9-speed constant meshReference

hydrostaticReference

Typeconstant meshReference

Gears9 forward and 3 reverseReference

Clutchdry discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeGearReference

Wheel Drive4WDReference

PTO & Hydraulics

Gear PTO (claimed)23.1 kWReference

Hydro PTO (claimed)21.6 kWReference

Typeopen centerReference

Valves2 (optional)Reference

Pump flow31.0 lpmReference

Steering flow17.0 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift1200 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2650Reference

Dimensions

Weight1390 kgReference

Front tire8x16Reference

Rear tire12.4x24Reference

Weight476 kgReference

Standard tires (ag)Front: 8x16. Rear: 12.4x24Reference

Industrial front10-16.5Reference

Industrial rear43x14-20Reference

Length303 cmReference

Width151 cmReference

Operating weight1390 kgReference

Mahindra 4010 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Batteries12Reference

Battery volts12Reference

Battery AH80Reference

Battery size80 AHReference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra ANBH76 Backhoe

Backhoe typeMahindra ANBH76 BackhoeReference

Digging depth228 cmReference

2-Foot flat digging depth228 cmReference

Reach from pivot284 cmReference

Loading height200 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1397 kgReference

Dipperstick force979 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post foldable ROPS.Reference

Capacities

Capacity111.4 ciReference

Power

Max Power38 hpReference

PTO

PTO Power31 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves2 (optional) ValvesReference

Steering & Implements flow4.5 gpm (8.2 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity1,200.2 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length303 cmReference

Overall Width151.9 cmReference

Overall weight1,390.3 kgReference

Wheels & tyres

Rear Wheel TypeStandard tires (ag):\\tRear: 12.4x24 | Industrial rear:43x14-20Reference

Front Wheel TypeStandard tires (ag): Front: 8x16. | Industrial front:10-16.5Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
