Tractor · 2008Unverified
Mahindra 4025
Mahindra 4025 — 25 Series · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
4389 to 4950 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Original price was $13,325 in 2009Reference
The 4WD version of the Mahindra 4025 became available for the 2012 model year.Reference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post foldable ROPSReference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank55.3 LReference
Engine30.6 kWReference
Mahindra MDI 2700R2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
Power30.6 kWReference
Compression19.5:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sliding meshReference
Typesliding meshReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
Typeopen centerReference
Valves0 or 1Reference
Total flow31.4 lpmReference
Steering flow18.2 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift (at ends)1599 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540Reference
Engine RPM540@2058Reference
Dimensions
Weight4389 to 4950 poundsReference
Front tire6x16Reference
Rear tire12.4x28 (2WD)Reference
Weight519 kgReference
Standard tires (ag)Front: 6x16. Rear: 12.4x28 (2WD)Reference
Standard tires (ag)Front: 9.5x16. Rear: 12.4x28 (4WD)Reference
Industrial front12.x16.5 (4WD)Reference
Industrial rear16.9x24 (4WD)Reference
2WD Length292 cmReference
4WD Length327 cmReference
2WD Width176 cmReference
4WD Width228 cmReference
2WD Operating weight1990 kgReference
4WD Operating weight2245 kgReference
Mahindra 4025 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Charging volts12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview

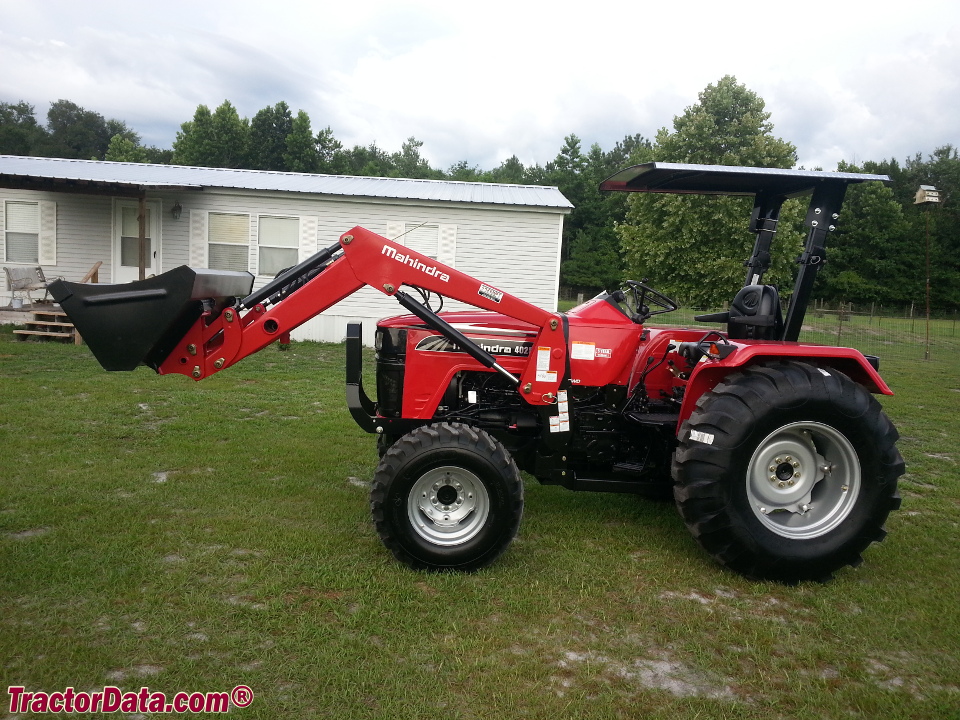

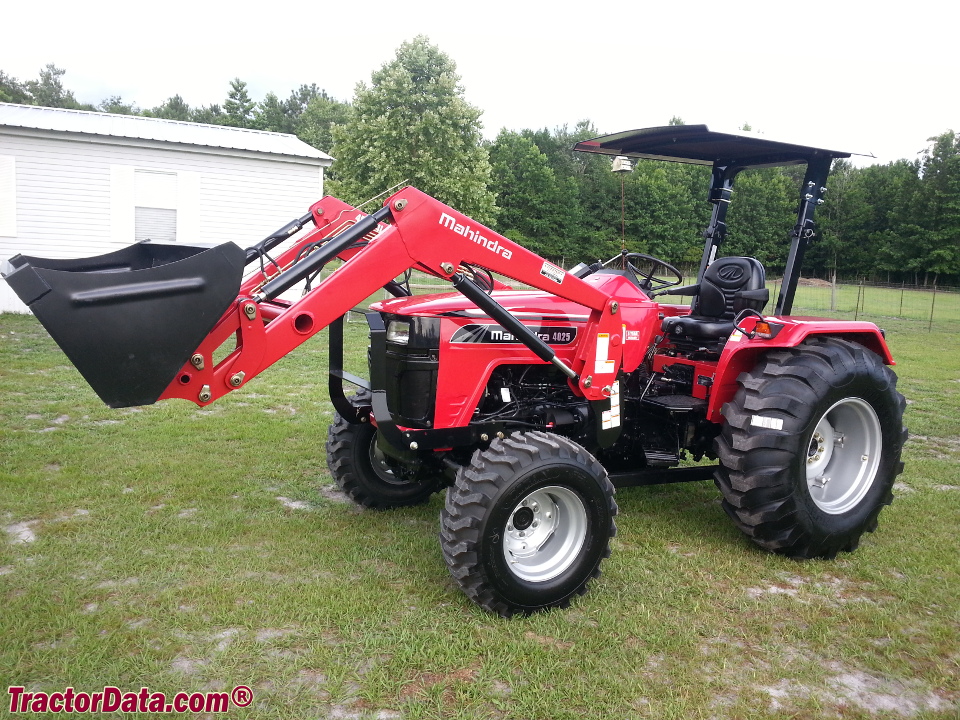

Mahindra ML232 loaderReference
Mahindra ANBH86 loaderReference
BackhoeReference
The ML232 loader was advertised for the 2WD model 4025, while the ML234 was for the 4WD version. The ANBH86 backhoe was only listed for the 4WD version.Reference
Mahindra ANBH86 Backhoe
Backhoe typeMahindra ANBH86 BackhoeReference
Digging depth266 cmReference
Reach from pivot342 cmReference
Loading height248 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force1664 kgReference
Dipperstick force1047 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
