Tractor · 2009Unverified

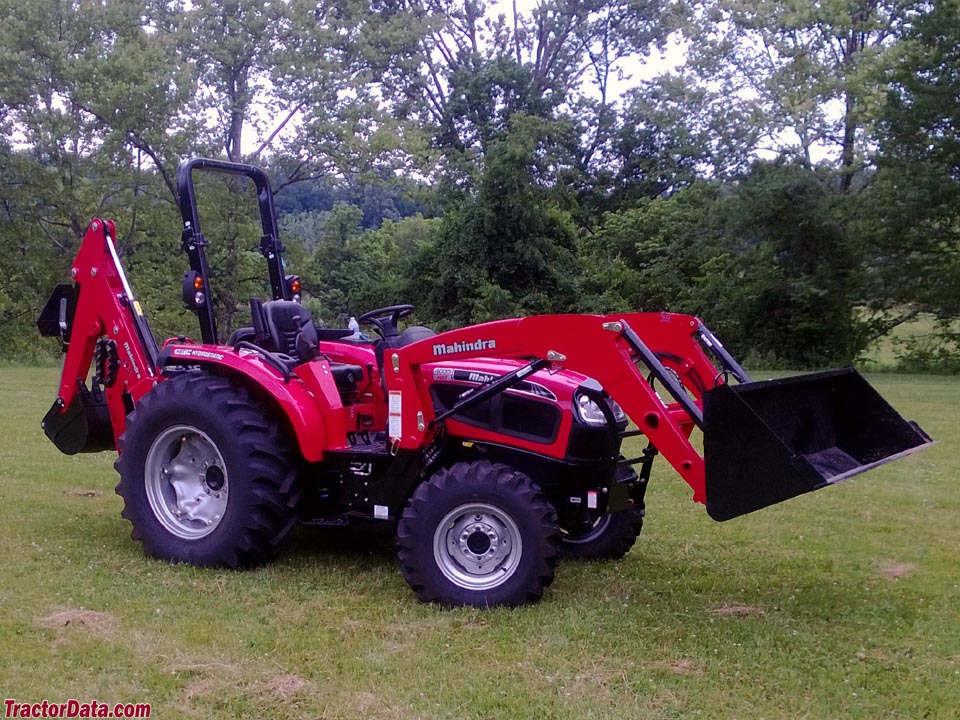

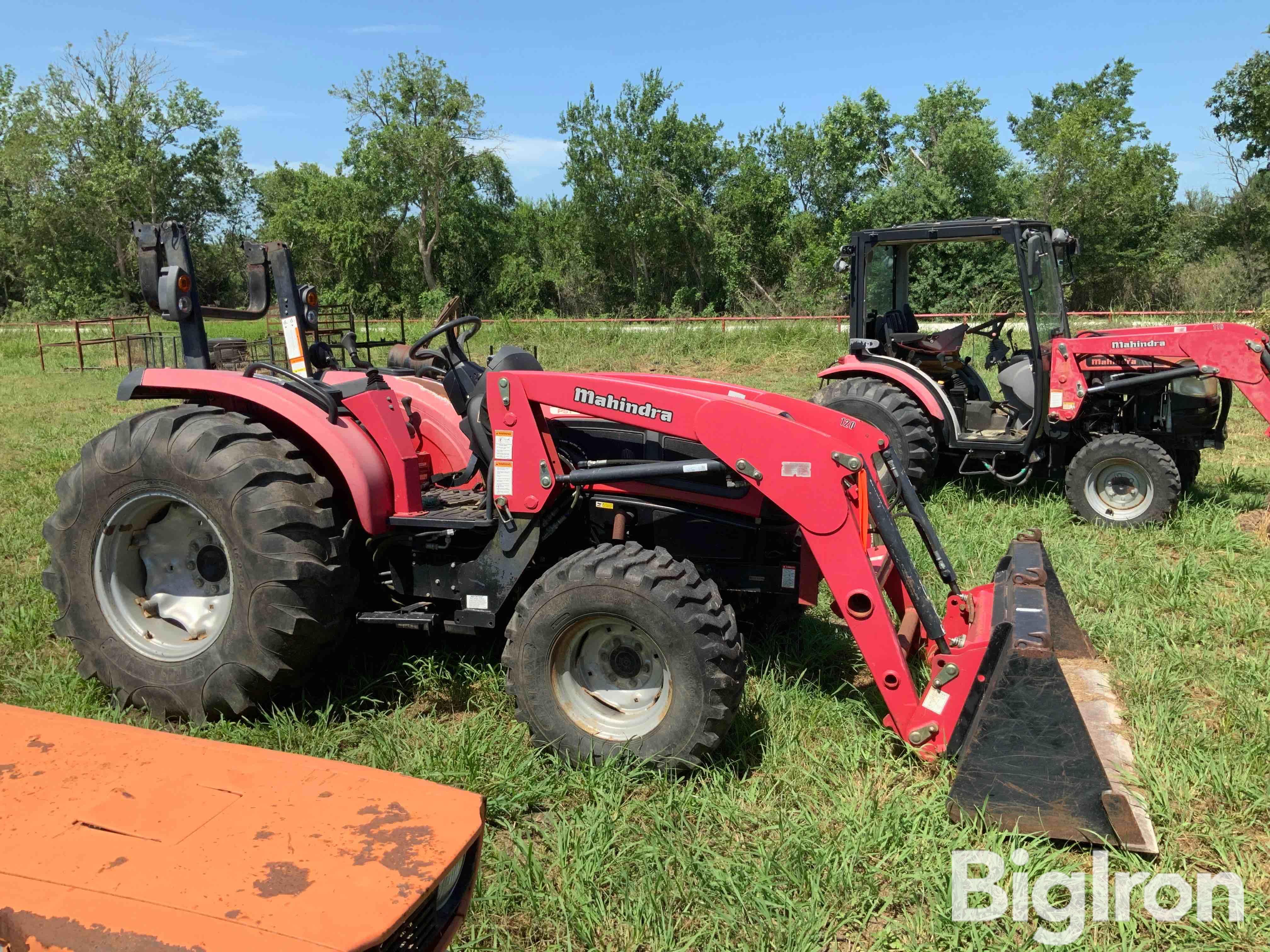

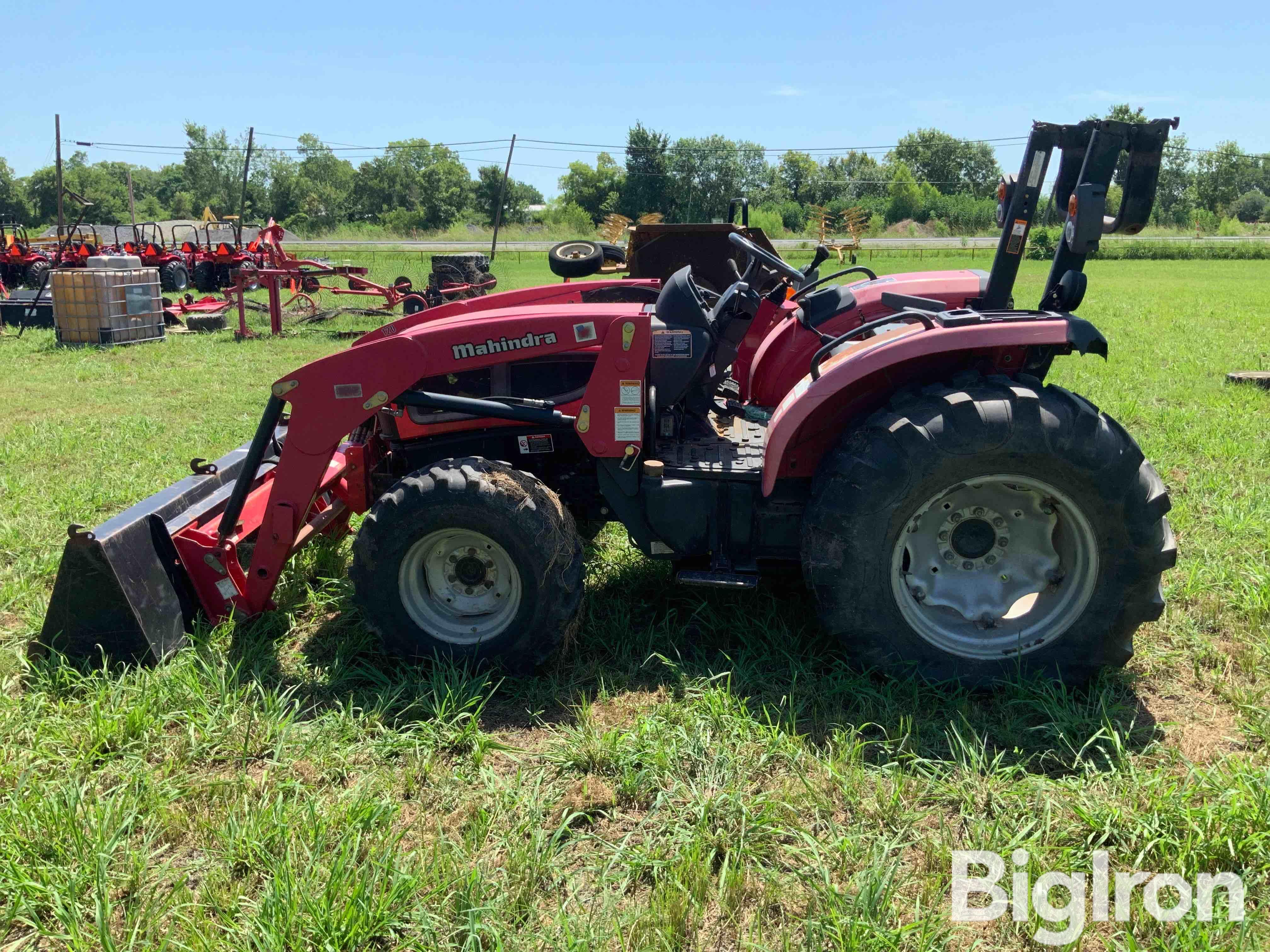

Mahindra 4035

Name: Mahindra 4035
Brand: Mahindra

Mahindra 4035 — 35 Series · 33 hp. Reference specifications; pending source verification.

The Mahindra 4035 is a compact tractor model with a 33 hp rating, manufactured in 2009. It features a 3-cylinder diesel liquid-cooled engine, paired with a hydrostatic transmission and four-wheel drive. The tractor's weight ranges from 4367 to 4817 pounds. It is designed to handle tasks on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Max power

40 hp

Weight

4367 to 4817 pounds

Catalogue coverage

Variants represented

Richest spec table

99 rows

Recorded power

33 hp

Recorded weight

458 kg

Transmissions

12-speed synchro shuttle

Production years

2009-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Compact Utility tractorReference

Built in Maharashtra, IndiaReference

Original price$23,720 (2013 hydro )Reference

Original price$22,970 (2013 power shuttle )Reference

Original price$22,220 (2013 sync shuttle )Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mahindra 1.9L 3-cyl dieselReference

Engine29.8 kWReference

Mahindra CE40Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

EmissionsTier IVReference

Power29.8 kWReference

Fuel systemdirect injectionReference

Compression19.5:1Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Emissions complianceTier IVReference

Compression ratio19.5:1Reference

Cooling systemliquid-cooledReference

Transmission

12-speed synchro shuttleReference

12-speed power shuttleReference

hydrostaticReference

Typesynchro shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Typepower shuttleReference

Clutchwet discReference

TypehydrostaticReference

Gearsinfinite forward and reverse (3-range)Reference

Transmission TypeSync ShuttleReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)24.6 kWReference

PTO (claimed)23.5 kWReference

Typeopen centerReference

Rear valves0 to 2Reference

Total flow41.6 lpmReference

Steering flow18.9 lpmReference

Rear TypeIReference

Rear lift1401 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM540@2404Reference

Dimensions

Weight4367 to 4817 poundsReference

Front tire9.5-16Reference

Rear tire14.9-24Reference

Weight458 kgReference

Ag front9.5-16Reference

Ag rear14.9-24Reference

Industrial front12-16.5Reference

Industrial rear16.9-24Reference

Length314 cmReference

Width187 cmReference

Operating weight1980 kgReference

Operating weight2184 kgReference

Mahindra 4035 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Battery volts12Reference

Battery AH96Reference

Battery size96 AHReference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra 485 Backhoe

Backhoe typeMahindra 485 BackhoeReference

Digging depth256 cmReference

Bucket force1766 kgReference

Dipperstick force1069 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post foladable ROPSReference

Country of manufacturerMaharashtra, IndiaReference

Capacities

Capacity115.4 ciReference

Power

Max Power40 hpReference

PTO

PTO Power33 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,404 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)11 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 to 2 ValvesReference

Steering & Implements flow5 gpmReference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity1,401.6 kgReference

Dimensions & weight

Overall Length314.7 cmReference

Overall Width187.2 cmReference

Overall weight2,185 kgReference

Wheels & tyres

Rear Wheel TypeAg rear:14.9-24 | Industrial rear:16.9-24Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
