Tractor · 2002Unverified

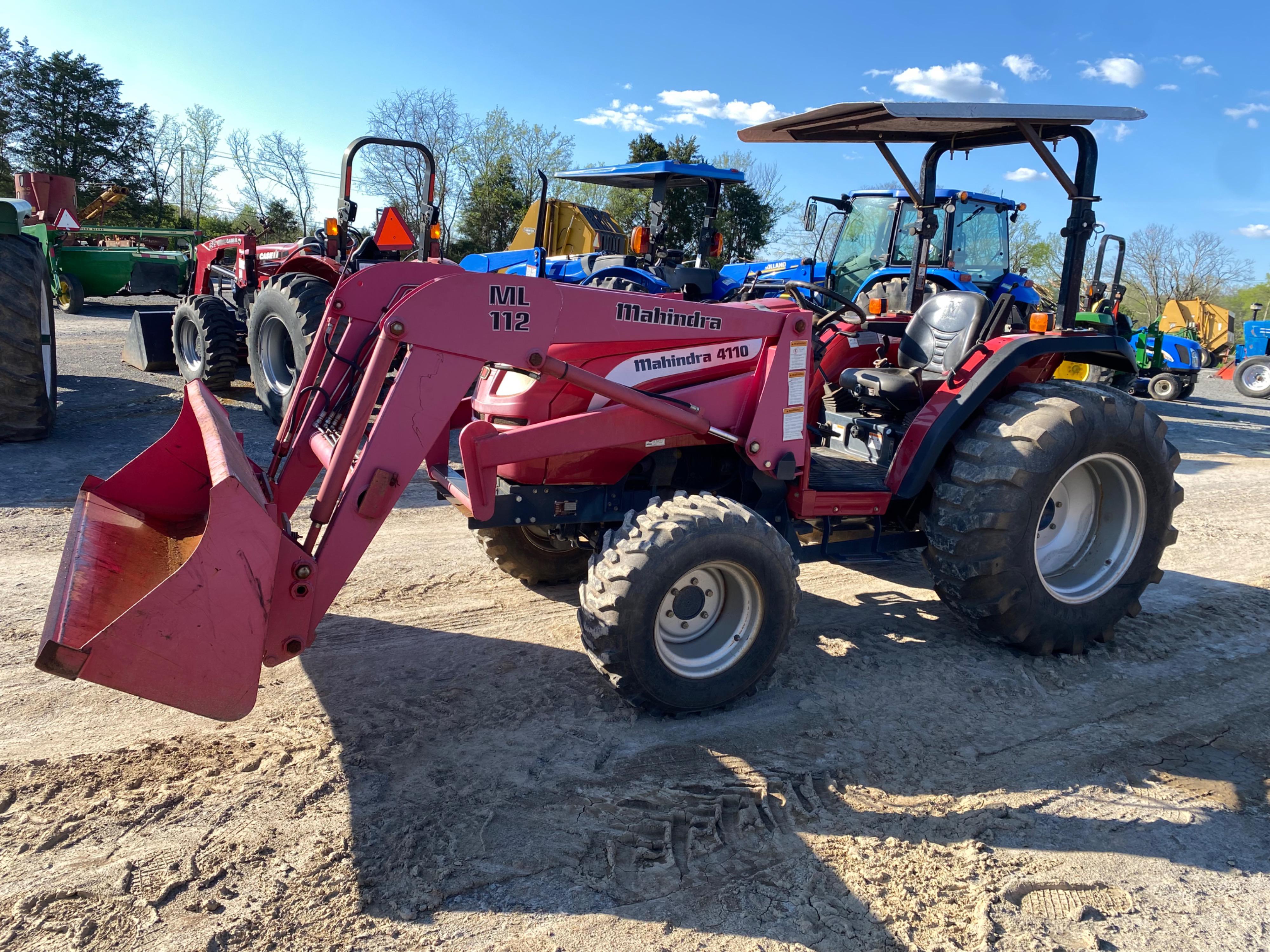

Mahindra 4110

Name: Mahindra 4110
Brand: Mahindra

Mahindra 4110 — 10 Series · 34 hp. Reference specifications; pending source verification.

The Mahindra 4110 is a compact tractor model with a rated output of 34 hp, produced from 2002 to 2009. Powered by a 4-cylinder diesel liquid-cooled engine, it features four-wheel drive with a hydrostatic transmission. The listed weight of the Mahindra 4110 is 1800 kg, and it is suited to jobs covering areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

34 hp

Weight

1800 kg

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

34 hp

Recorded weight

1800 kg

Transmissions

12-speed synchomesh shuttle

Production years

2002-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerTYMReference

Compact Utility tractorReference

Built in South KoreaReference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Engine

Mahindra 2.0L 4-cyl dieselReference

Engine30.6 kWReference

Mahindra 4A200Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.0 LReference

Power30.6 kWReference

Fuel systemindirect injectionReference

Compression22:1Reference

Rated RPM2700Reference

Starter volts12Reference

Fuel TypeDieselReference

No of Cylinders4 cylindersReference

Rated engine speed2,700 RPMReference

Compression ratio22:1Reference

Cooling systemwater-cooledReference

Transmission

12-speed synchomesh shuttleReference

Typesynchomesh shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

Transmission TypeSync ShuttleReference

forward and reverse options12F and 12RReference

PTO & Hydraulics

PTO (claimed)25.1 kWReference

Typeopen centerReference

Valves1Reference

Pump flow29.8 lpmReference

Steering flow17.6 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift1299 kgReference

Rear PTOindependentReference

Clutchelectro-hydraulicReference

Rear PTO Type540/1000Reference

Engine RPM540@2524Reference

Engine RPM1000@2866Reference

Dimensions

Weight1800 kgReference

Front tire9.5-16Reference

Rear tire14.9-24Reference

Ag front9.5-16Reference

Ag rear14.9-24Reference

Length353 cmReference

Width149 cmReference

Mahindra 4110 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Charging volts12Reference

Battery volts12Reference

Battery AH110Reference

Battery size110 AHReference

General

Make & ModelTYMReference

Rollover protective structureFoldable ROPSReference

Country of manufacturerOption 1: South Korea\\nOption 2: Compact Utility tractorReference

Capacities

Capacity122 ciReference

Power

Rated Power41 hpReference

PTO

Measuring Protocol for PTO Power@2,524Reference

Rear PTO PowerAvailableReference

Rear PTO RPM1,000 RPMReference

Engine Speed on Rear PTO speed1,000 @ 2,866 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Remote Valves1 ValvesReference

Steering & Implements flow4.4 gpm (9.5 gpm)Reference

Rear Hitch category (SAE designation)Category 1, with check chainsReference

Rear Hitch maximum lift capacity1,299.5 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length353.1 cmReference

Turning radius3.1 mReference

Wheels & tyres

Rear Wheel TypeAg rear - 14.9x24Reference

Front Wheel TypeAg front - 9.5x16Reference

Operator station

Seat SuspensionTRUEReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
