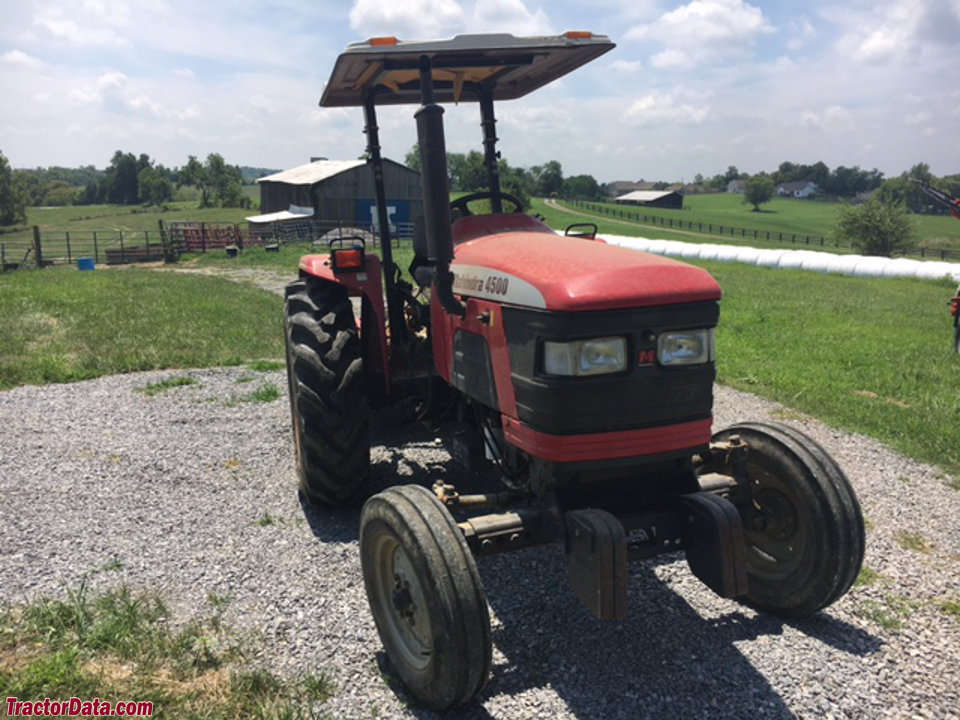

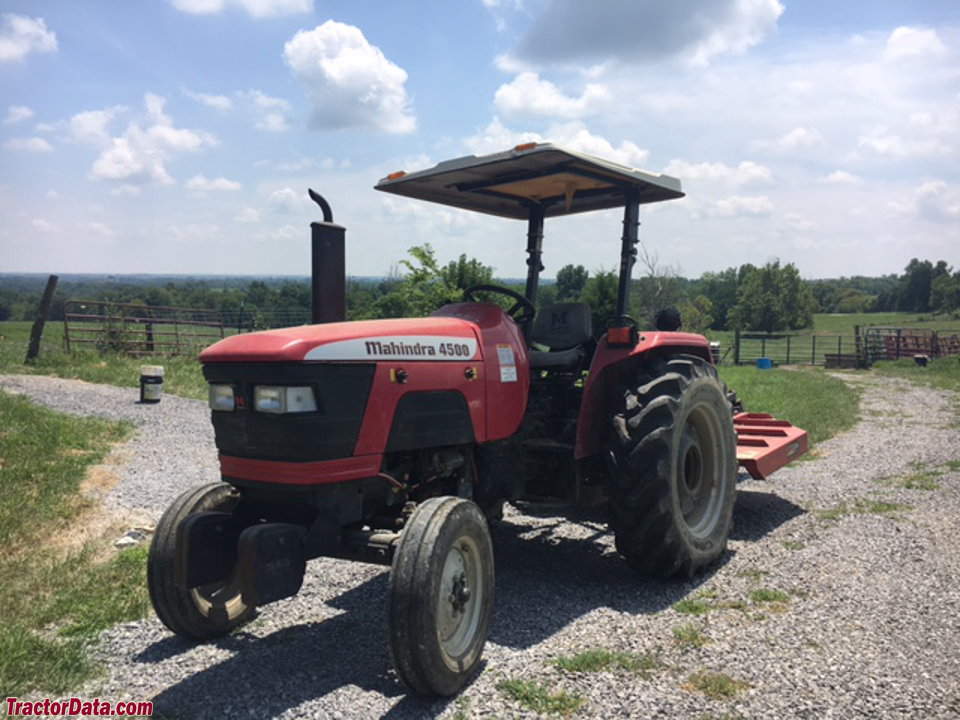

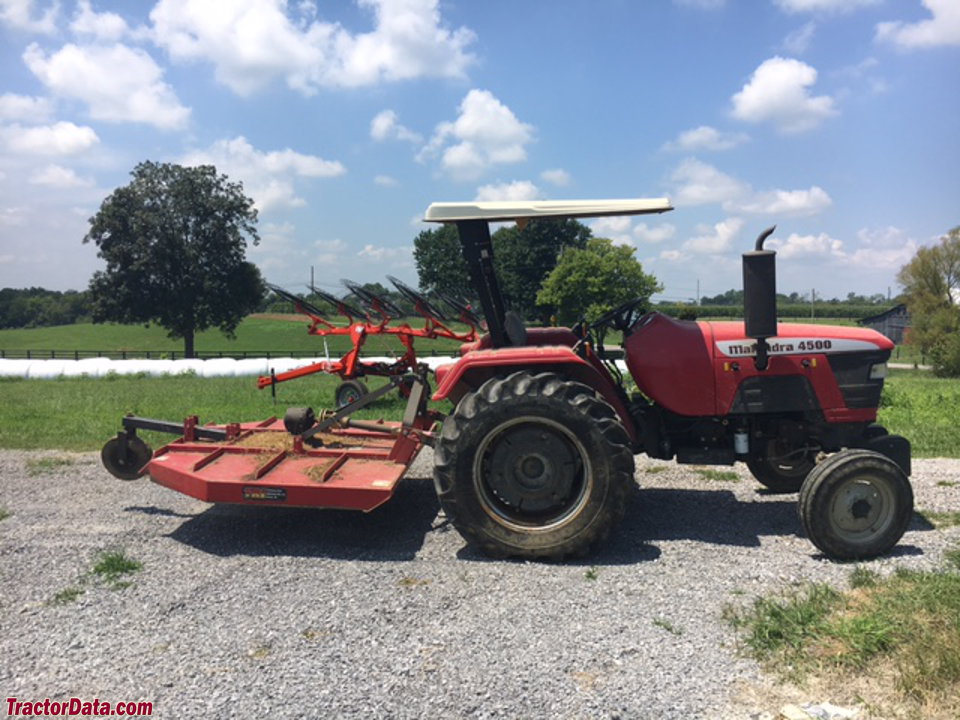

The Mahindra 4500 is a tractor model with a rating of 35 hp, positioned at the lighter end of its class. Manufactured from 2001 to 2008, the model features a 3-cylinder diesel liquid-cooled engine and a four-wheel drive system paired with an 8-speed gearbox. Its operating weight falls within the range of 4752 to 5742 pounds. The 4500 is suitable for operations on land up to 200 acres in size.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
4752 to 5742 pounds
Catalogue coverage
Variants represented
2
Richest spec table
53 rows
Recorded power
35 hp
Recorded weight
2155 kg
Transmissions
8-speed
Production years
2001-2008
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two- or four-wheel driveReference
Power steeringReference
2WD Brakesdry discReference
4WD Brakeswet discReference
Two-post folding ROPS.Reference
Engine
Mahindra 2.4L 3-cyl dieselReference
Engine31.3 kWReference
Mahindra NE342Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Bore/Stroke94 x 115 mmReference
Power31.3 kWReference
Fuel systemdirect injectionReference
Compression19.4:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speedReference
Transmissionconstant meshReference
Gears8 forward and 2 reverseReference
The 8/2 transmission was used the two-wheel drive version of the Mahindra 4500.Reference
Transmissionsynchomesh shuttleReference
Gears8 forward and reverseReference
The 8-speed shuttle was used on the 4500 with four-wheel drive.Reference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Typeopen centerReference
Valves1Reference
Pump flow41.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1799 kgReference
2WD Rear PTOcontinuousReference
4WD Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Weight4752 to 5742 poundsReference
Front tire6-16Reference
Rear tire13.6-28 (2WD)Reference
Standard tires (ag)Front: 6-16. Rear: 13.6-28 (2WD)Reference
Standard tires (ag)Front: 9.5-20. Rear: 14.9-26 (4WD)Reference
Length369 cmReference
Width170 cmReference
2WD Weight2155 kgReference
4WD Weight2604 kgReference
Mahindra 4500 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Mahindra ML245 loaderReference
Mahindra ML260 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
