Tractor · 2008Unverified

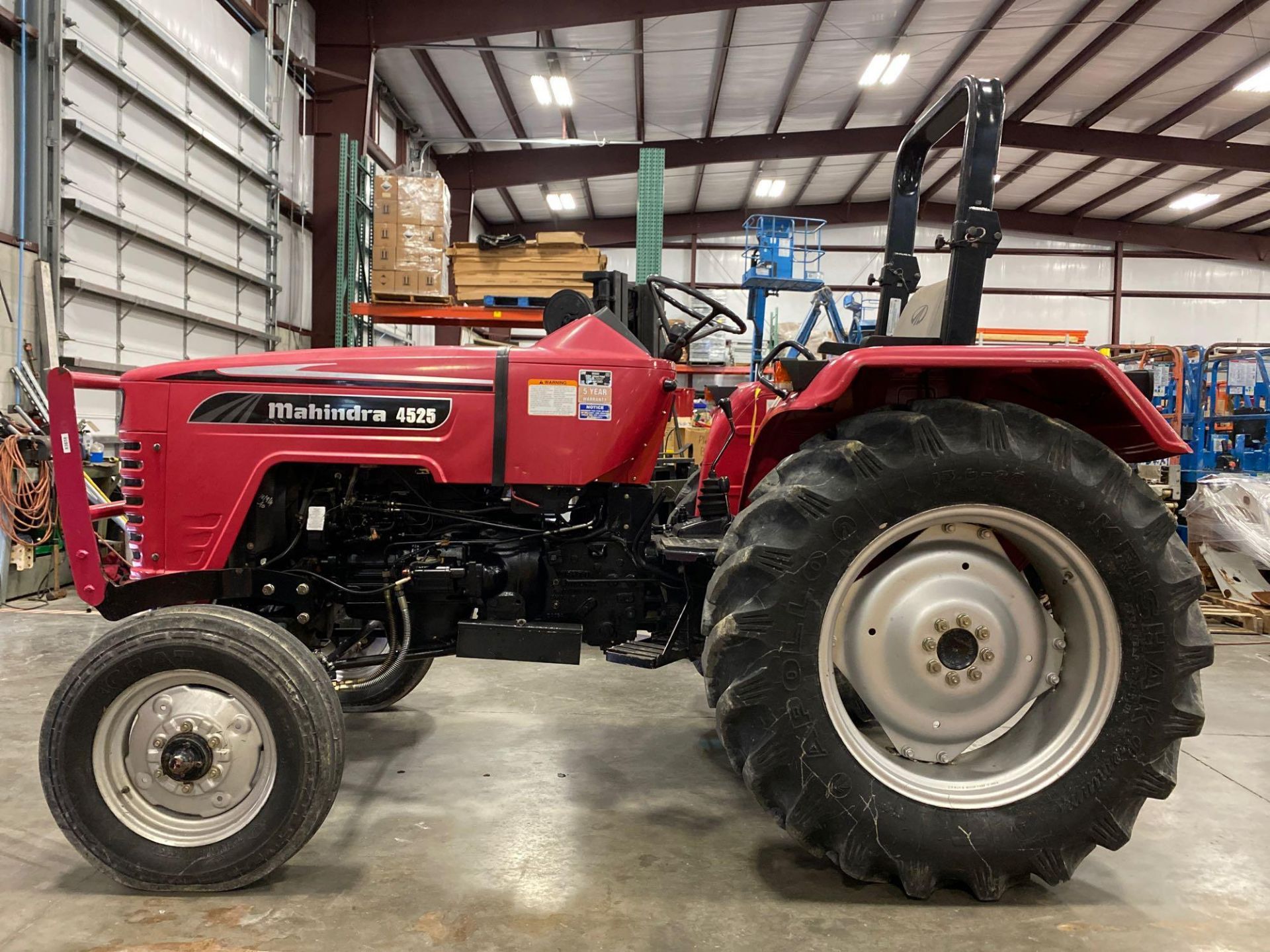

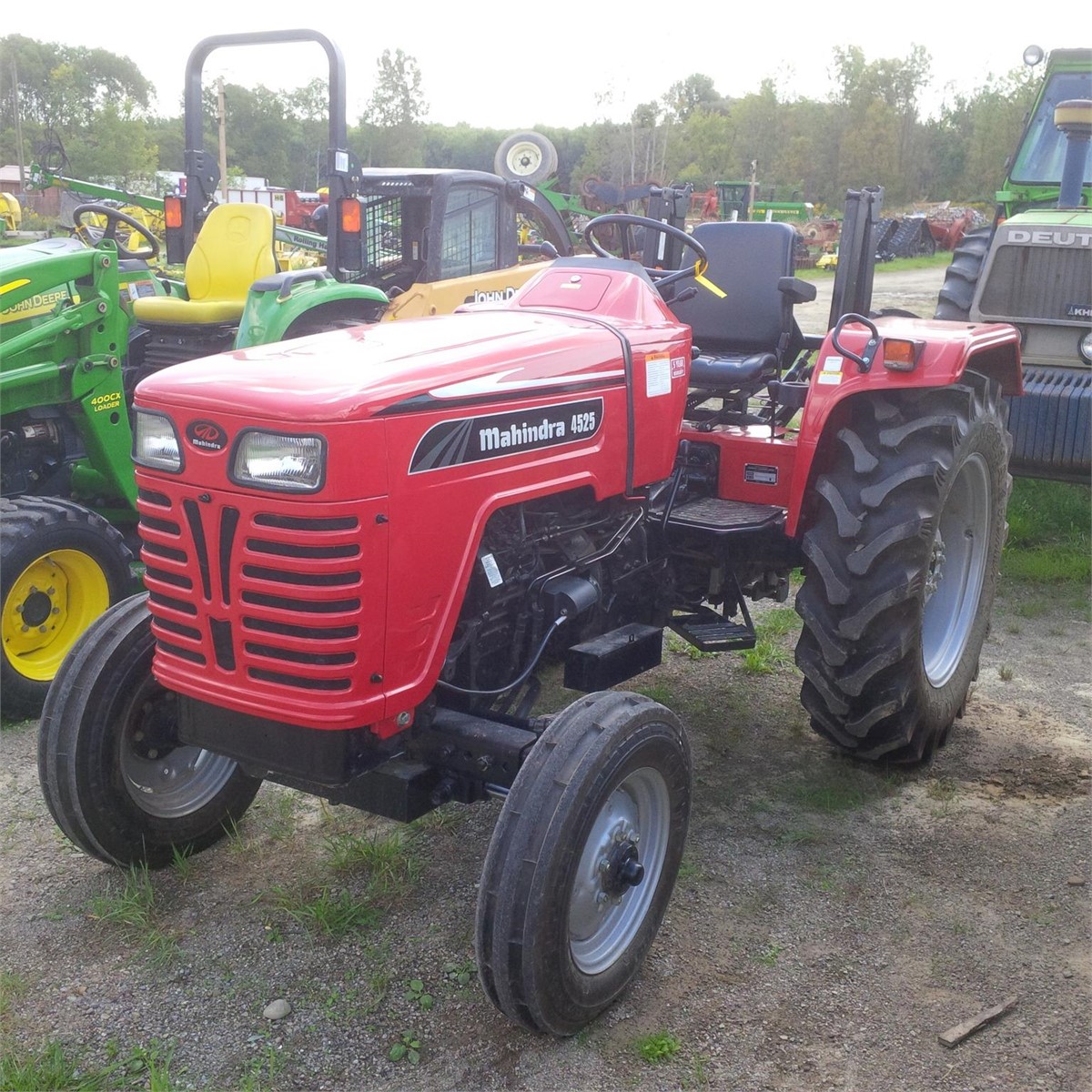

Mahindra 4525

Name: Mahindra 4525
Brand: Mahindra

Mahindra 4525 — 25 Series · 36 hp. Reference specifications; pending source verification.

The Mahindra 4525 is a tractor model rated at 36 hp — making it one of the more compact options in its class. The 4525 was manufactured in 2008. Under the hood is a 4-cylinder diesel liquid-cooled engine, driving through two-wheel drive with a hydrostatic transmission. Listed weight is 1925 kg, and it is aimed at jobs of around up to 200 ac. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

36 hp

Max power

46 hp

Weight

1925 kg

Catalogue coverage

Variants represented

Richest spec table

84 rows

Recorded power

36 hp

Recorded weight

1925 kg

Transmissions

8-speed sliding mesh

Production years

2008-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Utility tractorReference

Built in Maharashtra, IndiaReference

Original price was $14,104 in 2009Reference

Two-wheel driveReference

Steeringhydrostatic powerReference

Dry disc brakesReference

Two-post folding ROPS.Reference

Engine

Mahindra 2.7L 4-cyl dieselReference

Engine34.3 kWReference

Mahindra MDI 2700R1Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke89 x 110 mmReference

Power34.3 kWReference

Fuel systemdirect injectionReference

Compression19.5:1Reference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,300 RPMReference

Bore and stroke3.50x4.331 inchesReference

Compression ratio19.5:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speed sliding meshReference

Typesliding meshReference

Gears8 forward and 2 reverseReference

Transmission TypeCollar ShiftReference

forward and reverse optionsSliding Mesh : 8 F and 2 RReference

Wheel Drive2WDReference

PTO & Hydraulics

PTO (claimed)26.8 kWReference

Typeopen centerReference

Valves0 or 1Reference

Total flow31.4 lpmReference

Steering flow18.2 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at ends)1599 kgReference

Rear PTOlive (2-stage clutch)Reference

Rear PTO Type540Reference

Engine RPM540@2058Reference

Dimensions

Weight1925 kgReference

Front tire6x16Reference

Rear tire13.6x28Reference

Ag front6x16Reference

Ag rear13.6x28Reference

Length295 cmReference

Width177 cmReference

Operating weight1925 kgReference

Mahindra 4525 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps36Reference

Charging volts12Reference

Battery volts12Reference

Battery AH96Reference

Battery size96 AHReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerMaharashtra, IndiaReference

Capacities

Capacity166.7 ciReference

Power

Max Power46 hpReference

PTO

PTO Power36 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,058 RPMReference

Steering & brakes

Brakesdry discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)8.29 gpmReference

Hydraulics Typeopen centerReference

Remote Valves0 or 1 ValvesReference

Steering & Implements flow4.8 gpmReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,599.8 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Length295.4 cmReference

Overall Width177.8 cmReference

Overall weight1,926 kgReference

Wheels & tyres

Rear Wheel TypeAg rear:13.6x28Reference

Front Wheel TypeAg :6x16Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
