Tractor · 2005Unverified

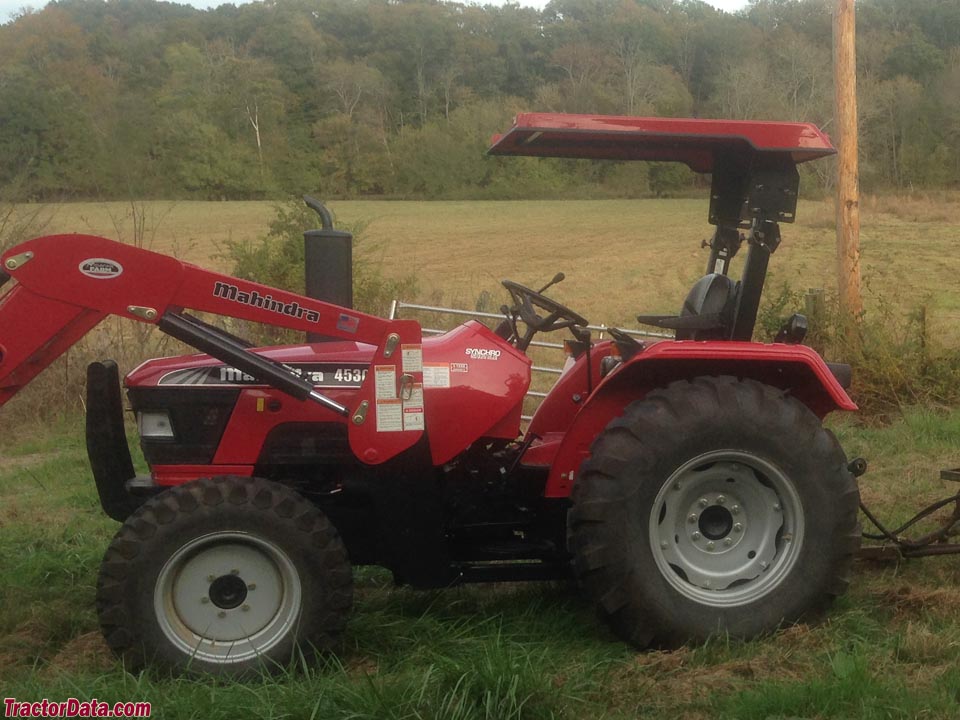

Mahindra 4530
Mahindra 4530 — Model year 2005-20082010-2020 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
2525 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Original price was $22,250 in 2013Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mahindra 2.4L 3-cyl dieselReference
Fuel tank64.7 LReference
Engine32.8 kWReference
MahindraReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Power32.8 kWReference
Fuel systemdirect injectionReference
Compression18:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speed synchro shuttleReference
Typesynchro shuttleReference
Gears8 forward and reverseReference
Clutchdry with cerametallic liningReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
Typeopen centerReference
Valves2 (optional)Reference
Pump flow41.3 lpmReference
Steering flow18.2 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1799 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2010Reference
Dimensions
Weight2525 kgReference
Front tire9.5x20Reference
Rear tire13.6x28Reference
Weight679 kgReference
Ag front9.5x20Reference
Ag rear13.6x28Reference
Industrial front10.5/80x18Reference
Industrial rear16.9x24Reference
Length340 cmReference
Width184 cmReference
Mahindra 4530 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 595 Backhoe
Backhoe typeMahindra 595 BackhoeReference
Digging depth292 cmReference
2-Foot flat digging depth289 cmReference
8-Foot flat digging depth127 cmReference
Reach from pivot391 cmReference
Loading height210 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2590 kgReference
Dipperstick force1446 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
