Tractor · 2014Unverified

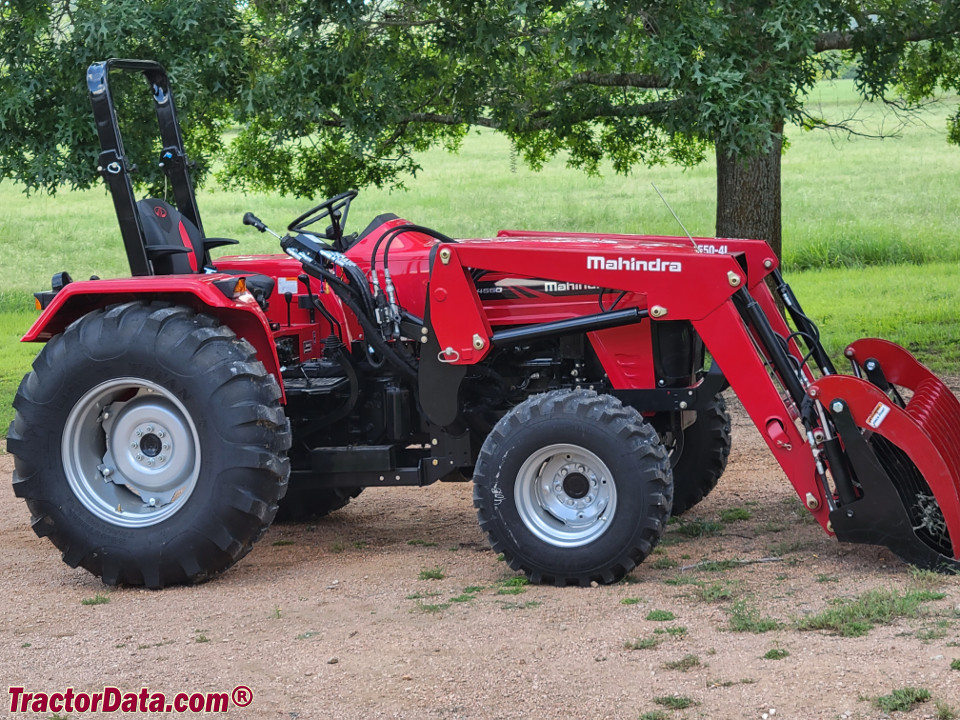

Mahindra 4550
Mahindra 4550 — Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
4267 to 5292 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Original price$20,183 (2016 2WD )Reference
Original price$25,515 (2016 4WD )Reference
Two- or four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mahindra 2.7L 4-cyl dieselReference
Fuel tank55.3 LReference
Engine35.8 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke89 x 110 mmReference
EmissionsTier IVReference
Power35.8 kWReference
Fuel systemdirect injectionReference
Compression18.7:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Rear valves1Reference
Pump flow32.9 lpmReference
Steering flow18.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1599 kgReference
Rear PTOliveReference
Clutchdual-stage clutchReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2058Reference
Dimensions
Weight4267 to 5292 poundsReference
Front tire6x16Reference
2WD Rear tire12.4x28Reference
2WD Standard tires (ag)Front: 6x16. Rear: 12.4x28Reference
4WD Standard tires (ag)Front: 9.5x16. Rear: 12.4x28Reference
Industrial front12.6x16.5Reference
Industrial rear16.9x24Reference
2WD Length303 cmReference
4WD Length322 cmReference
2WD Width179 cmReference
4WD Width186 cmReference
2WD Height (ROPS)234 cmReference
4WD Height (ROPS)237 cmReference
2WD Weight1935 kgReference
4WD Weight2400 kgReference
Mahindra 4550 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Battery volts12Reference
Attachment overview
Mahindra 4550-2L loaderReference
Mahindra 4550-4L loaderReference
BackhoeReference
Mahindra 4550B Backhoe
Backhoe typeMahindra 4550B BackhoeReference
Digging depth256 cmReference
2-Foot flat digging depth255 cmReference
Reach from pivot342 cmReference
Loading height226 cmReference
Bucket Rotation155°Reference
Swing Arc180°Reference
Bucket force1664 kgReference
Dipperstick force1047 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
