Tractor · 1995Unverified

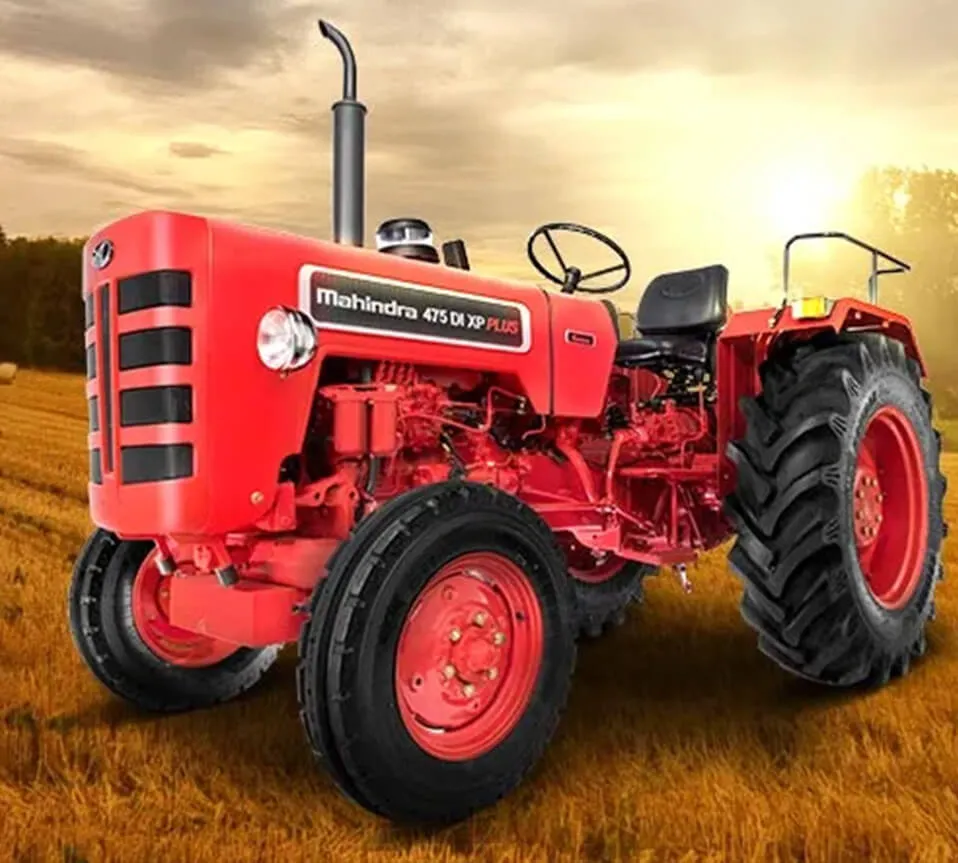

Mahindra 475
Mahindra 475 — Utility tractor · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
1766 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two-wheel driveReference
SteeringmanualReference
Dry disc brakesReference
Open operator station.Reference
Engine
Mahindra 2.4L 4-cyl dieselReference
Mahindra 1.9L 3-cyl dieselReference
Engine29.8 kWReference
MahindraReference
dieselReference
4-cylinderReference
Displacement2.4 LReference
Bore/Stroke89 x 96 mmReference
Power29.8 kWReference
Rated RPM2300Reference
Starter volts12Reference
Coolant capacity9.5 LReference
Mahindra MDI 1895AReference
3-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke89 x 102 mmReference
Compression18:1Reference
Rated RPM2450Reference
Firing order1-3-2Reference
Oil capacity5.0 LReference
Intake valve clearance0.305 mmReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.406 mmReference
Exhaust valve clearance0.508 mmReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity18.0 LReference
Four gears (1-4) plus reverse (R) in high and low ranges.Reference
PTO & Hydraulics
PTO (claimed)27.6 kWReference
Hydraulic system11.0 LReference
Typeopen centerReference
Capacity11.0 LReference
Pump flow31.2 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift997 kgReference
Rear PTOtransmssionReference
Rear PTOlive (optional)Reference
Clutch228.6mm dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1980Reference
Capacities
Fuel35.0 LReference
Dimensions
Wheelbase189 cmReference
Weight1766 kgReference
Front tire6.00x16Reference
Rear tire12.4x28Reference
Ag front6.00x16Reference
Ag rear12.4x28Reference
Length311 cmReference
Width170 cmReference
Height (steering wheel)157 cmReference
Operating weight1766 kgReference
Ground clearance41 cmReference
Front tread121 to 182 cmReference
Rear tread127 to 187 cmReference
Electrical
GroundnegativeReference
Charging amps11Reference
Battery volts12Reference
Battery AH88Reference
Speeds
13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
