Tractor · Unverified

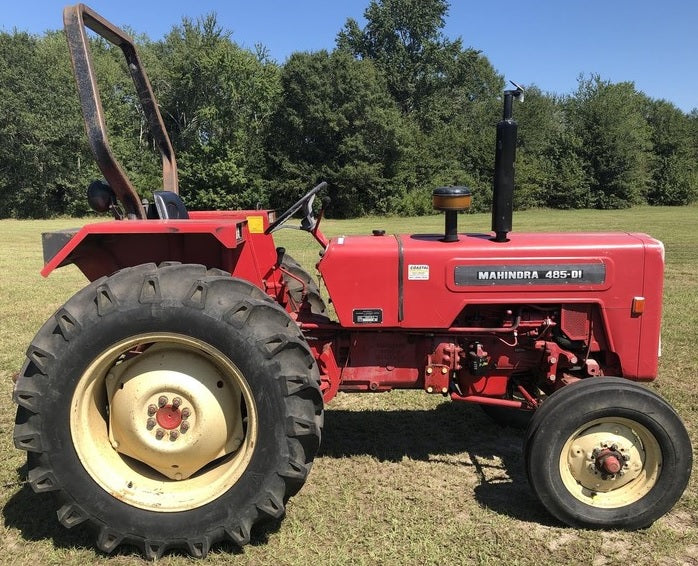

Mahindra 485 DI
Mahindra 485 DI — ???? - 1997 · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1856 kg
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Built in Maharashtra, IndiaReference
Two-wheel driveReference
Differential lockmechanical rearReference
Steeringhydrostatic powerReference
Disc brakesReference
Two-post ROPS.Reference
Engine
Mahindra 2.4L 4-cyl dieselReference
Fuel tank35.0 LReference
Engine33.6 kWReference
Mahindra MDI 2385Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke89 x 96 mmReference
Power33.6 kWReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2300Reference
Idle RPM700-2500Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Oil capacity7.4 LReference
Coolant capacity11.0 LReference
Intake valve clearance0.305 mmReference
Intake valve clearance0.406 mmReference
Exhaust valve clearance0.406 mmReference
Exhaust valve clearance0.508 mmReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity18.0 LReference
Four gears (1-4), plus reverse (R) in two ranges (low/high).Reference
PTO & Hydraulics
PTO (claimed)28.6 kWReference
Typeopen centerReference
Pump flow31.2 lpmReference
Rear TypeII/IReference
Rear lift997 kgReference
Rear PTOliveReference
Clutch228.6mm dry discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2059Reference
Engine RPM1000@2227Reference
Dimensions
Wheelbase190 cmReference
Weight1856 kgReference
Front tire6.00x16Reference
Rear tire13.6/12x28Reference
Ag front6.00x16Reference
Ag rear13.6/12x28Reference
Length294 cmReference
Width180 cmReference
Height (steering wheel)160 cmReference
Operating weight1856 kgReference
Ground clearance26 cmReference
Front tread121 to 182 cmReference
Rear tread127 to 187 cmReference
Electrical
GroundnegativeReference
Charging amps11Reference
Battery volts12Reference
Speeds
With 13.6x28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
