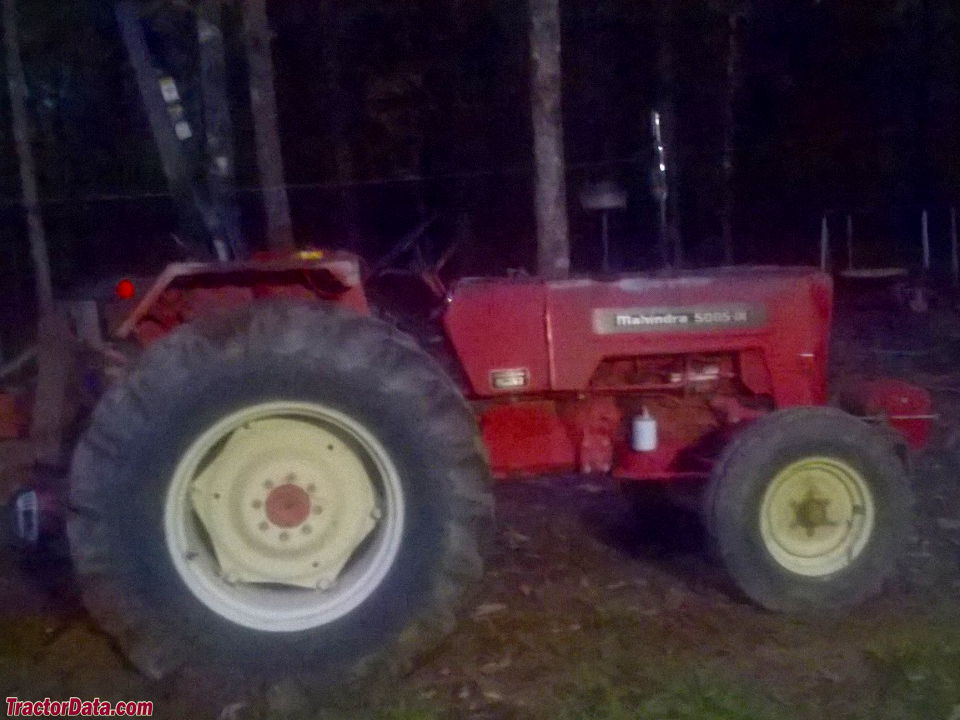

Mahindra 5005 DI
Mahindra 5005 DI — 05 Series · 42 hp. Reference specifications; pending source verification.
The Mahindra 5005 DI is a tractor with a rated power output of 42 hp, placing it at the lower end of its class in terms of power. It was manufactured between 1999 and 2002, and features a 4-cylinder diesel liquid-cooled engine paired with two-wheel drive and an 8-speed gearbox. The tractor has an operating weight of 1931 kg, and is suitable for operations on areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
1931 kg
Catalogue coverage
Variants represented
2
Richest spec table
45 rows
Recorded power
42 hp
Recorded weight
1931 kg
Transmissions
8-speed gear
Production years
1999-2002
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two-wheel driveReference
Power steeringReference
Dry disc brakesReference
Two-post fixed ROPS.Reference
Engine
Mahindra 2.5L 4-cyl dieselReference
Engine38.0 kWReference
Mahindra MDI 3000BReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Bore/Stroke89 x 102 mmReference
Power38.0 kWReference
Fuel systemdirect injectionReference
Compression18:1Reference
Rated RPM2600Reference
Starter volts12Reference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)31.3 kWReference
Typeopen centerReference
Valves1Reference
Pump flow35.6 lpmReference
Rear TypeII/IReference
Rear lift1598 kgReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Engine RPM540@2058Reference
Engine RPM1000@2043Reference
Dimensions
Weight1931 kgReference
Front tire7.5x16Reference
Rear tire16.9x28Reference
Ag front7.5x16Reference
Ag rear16.9x28Reference
Length337 cmReference
Ground clearance38 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
