Tractor · 2011Unverified

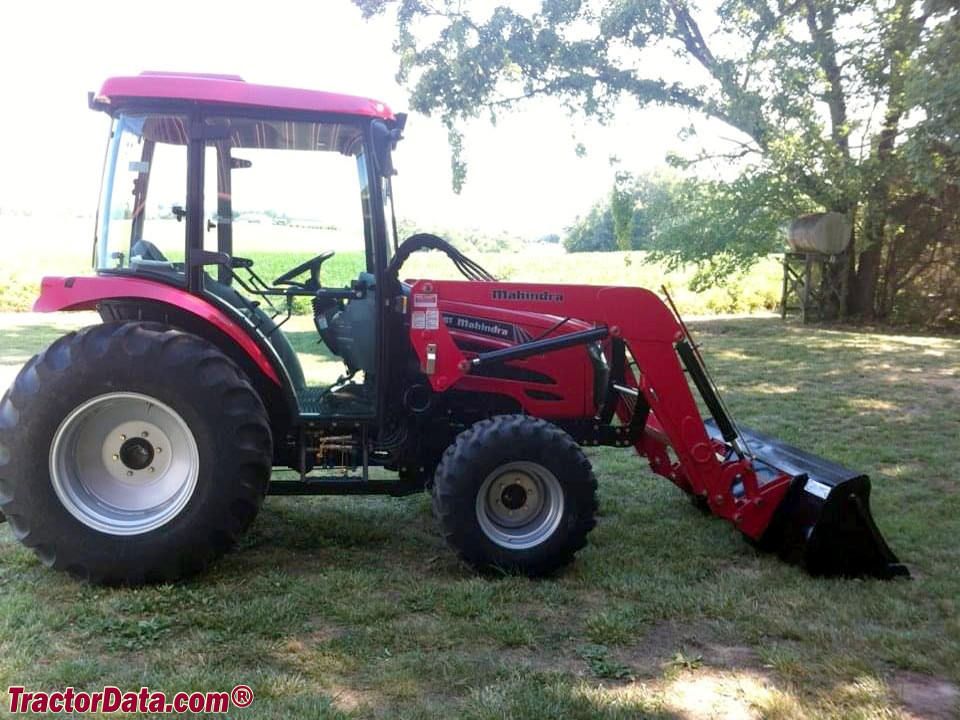

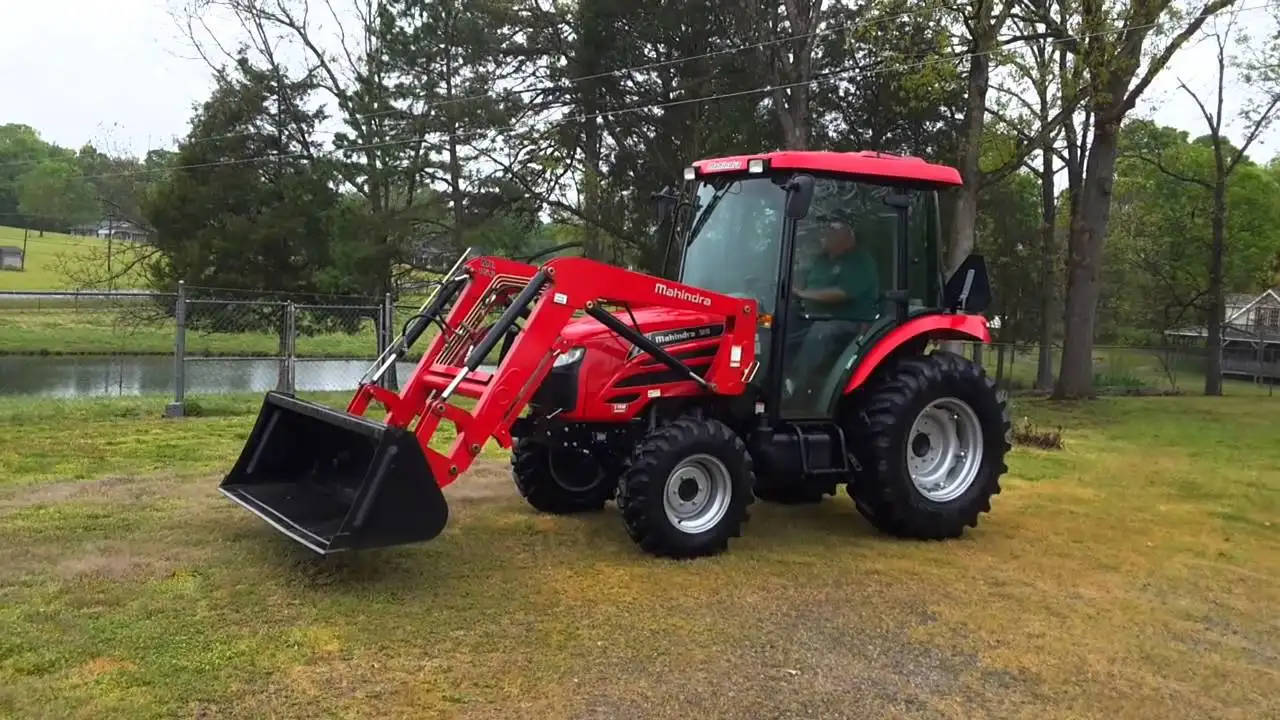

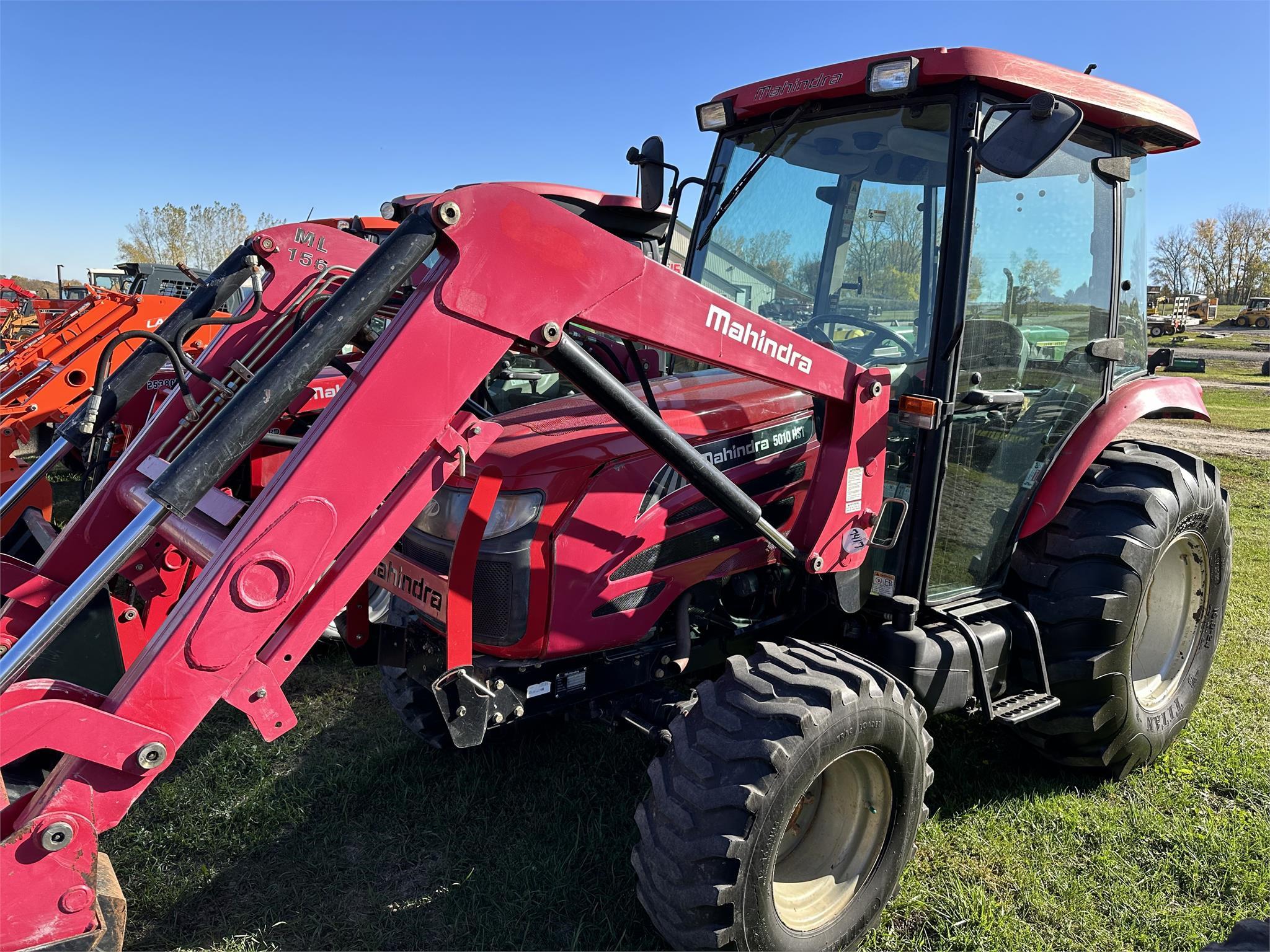

Mahindra 5010
Mahindra 5010 — 10 Series · 42 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
42 hp
Weight
3836 to 4078 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Compact Utility tractorReference
Original price$21,560 (2012 ROPS )Reference
Original price$29,560 (2012 Cab )Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional.Reference
Engine
Daedong 2.4L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine36.5 kWReference
Daedong 4B243LWReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke87 x 102 mmReference
Power36.5 kWReference
Fuel systemindirect injectionReference
Compression22:1Reference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed constant meshReference
hydrostaticReference
Typeconstant meshReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
Gear PTO (claimed)30.9 kWReference
Hydro PTO (claimed)28.3 kWReference
Typeopen centerReference
Valves1Reference
Pump flow36.0 lpmReference
Steering flow18.9 lpmReference
Rear Type1Reference
Controlposition controlReference
Rear lift1503 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540Reference
Engine RPM540@2600Reference
Dimensions
Weight3836 to 4078 poundsReference
Front tire9.5x16Reference
Rear tire14.9x24Reference
Weight629 kgReference
Standard tires (ag)Front: 9.5x16. Rear: 14.9x24Reference
Industrial front12x16.5Reference
Industrial rear19.9x24Reference
Length340 cmReference
Width181 cmReference
Height (cab)251 cmReference
ROPS Operating weight1740 kgReference
Cab Operating weight1849 kgReference
Mahindra 5010 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps50Reference
Battery volts12Reference
Battery AH80Reference
Attachment overview
Front-end loaderReference
BackhoeReference
The ML151 loader was compatible with ROPS models, while the ML156 loader was compatible on the 5010 with a cab. Both loaders had the same ratings.Reference
Mahindra 595 Backhoe
Backhoe typeMahindra 595 BackhoeReference
Digging depth292 cmReference
2-Foot flat digging depth289 cmReference
Reach from pivot391 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2590 kgReference
Dipperstick force1446 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
