Tractor · 2010Unverified

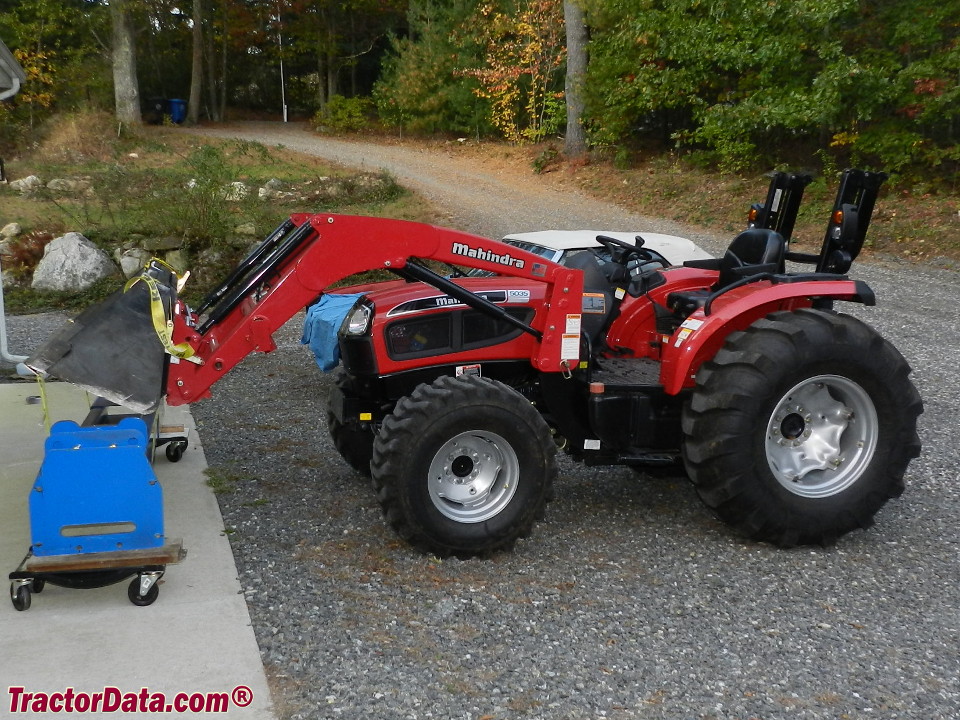

Mahindra 5035
Mahindra 5035 — 35 Series · 43 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
43 hp
Weight
4939 to 5389 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Compact Utility tractorReference
Built in Maharashtra, IndiaReference
Original price$25,750 (2013 sync shuttle )Reference
Original price$26,500 (2013 power shuttle )Reference
Original price$27,250 (2013 hydro )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foladable ROPS.Reference
Engine
Mahindra 2.5L 4-cyl dieselReference
Fuel tank42.8 LReference
Engine36.9 kWReference
Mahindra CE50Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
EmissionsTier IVReference
Power36.9 kWReference
Fuel systemdirect injectionReference
Compression19.5:1Reference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchro shuttleReference
12-speed power shuttleReference
hydrostaticReference
Gear Operating weight2240 kgReference
Typesynchro shuttleReference
Gears12 forward and reverseReference
Clutchdry discReference
Typepower shuttleReference
Clutchwet discReference
TypehydrostaticReference
Gearsinfinite forward and reverse (3-range)Reference
PTO & Hydraulics
PTO (claimed)32.1 kWReference
PTO (claimed)30.9 kWReference
Typeopen centerReference
Rear valves1Reference
Total flow41.6 lpmReference
Steering flow18.9 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1401 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2404Reference
Dimensions
Weight4939 to 5389 poundsReference
Front tire9.5-20Reference
Rear tire16.9-24Reference
Weight674 kgReference
Ag front9.5-20Reference
Ag rear16.9-24Reference
Lawn/turf front31x13.50-15Reference
Lawn/turf rear21.5L-16.1Reference
Industrial front14x17.5Reference
Industrial rear19.5Lx24Reference
Length327 cmReference
Width191 cmReference
Hydro Operating weight2444 kgReference
Mahindra 5035 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Front-end loaderReference
BackhoeReference
Mahindra 595 Backhoe
Backhoe typeMahindra 595 BackhoeReference
Digging depth292 cmReference
Bucket force2590 kgReference
Dipperstick force1446 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
