Tractor · 2021Unverified

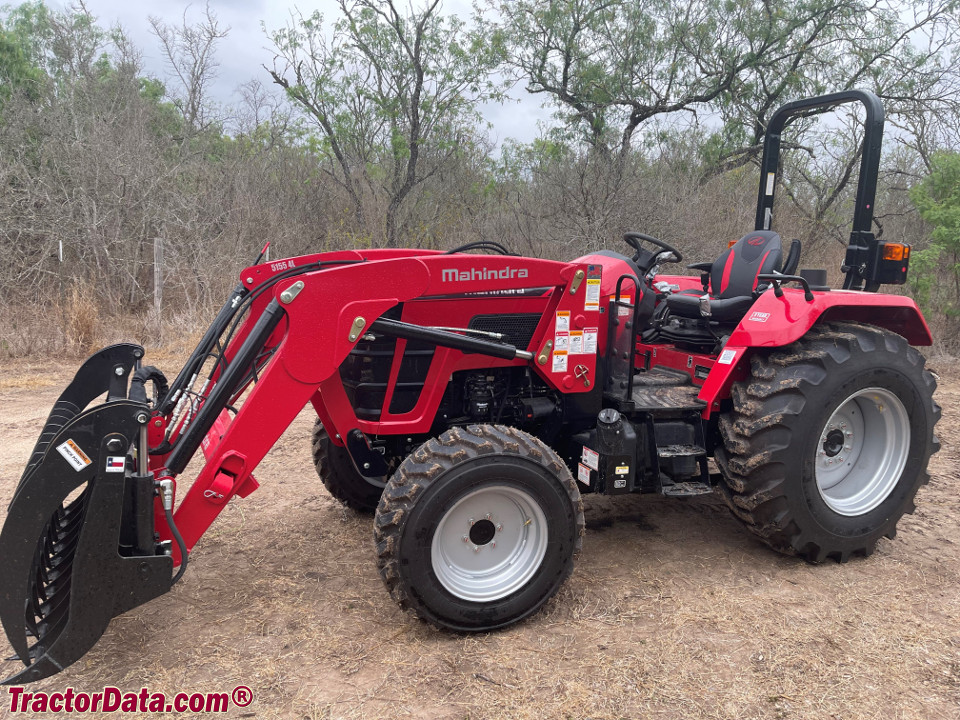

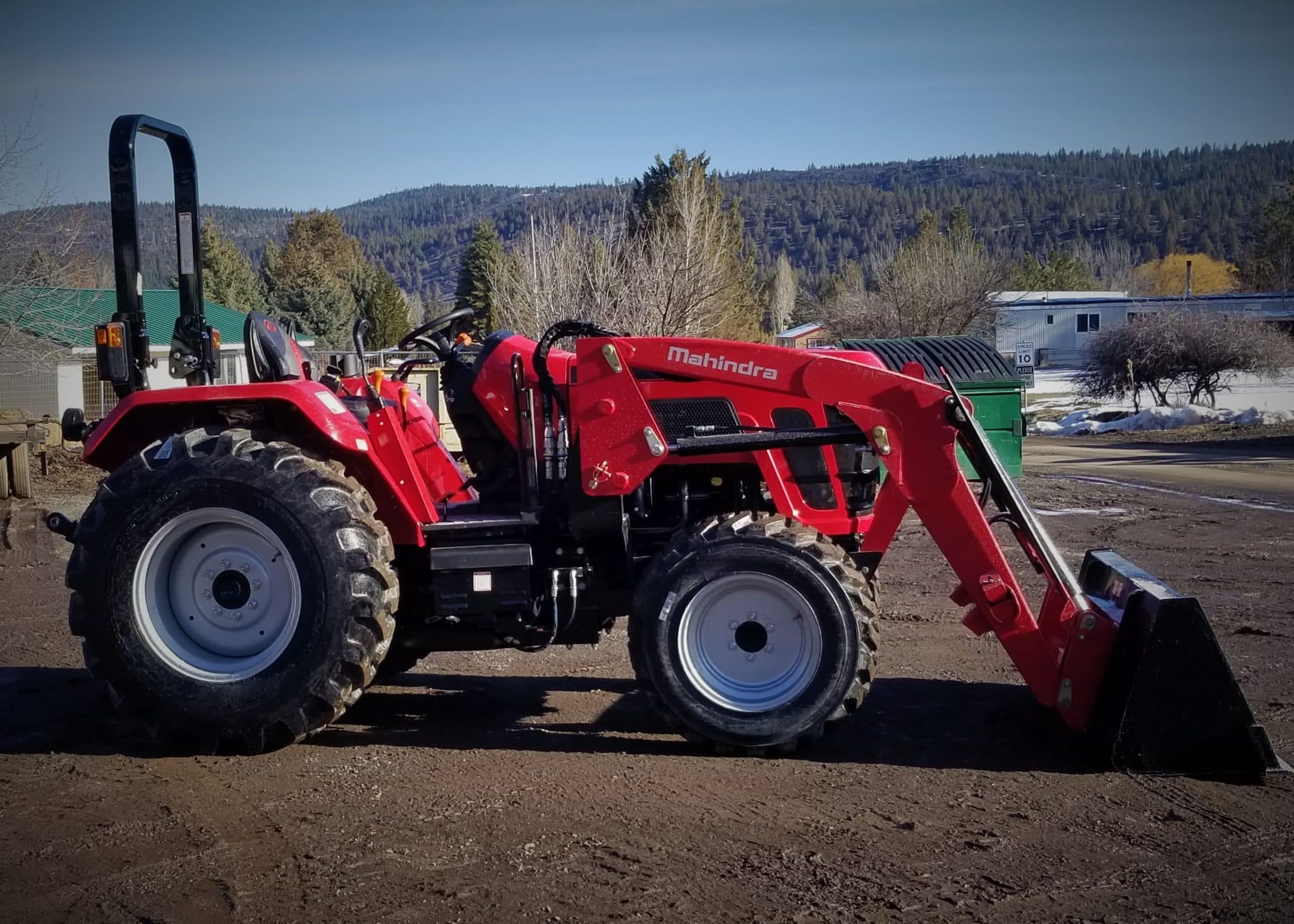

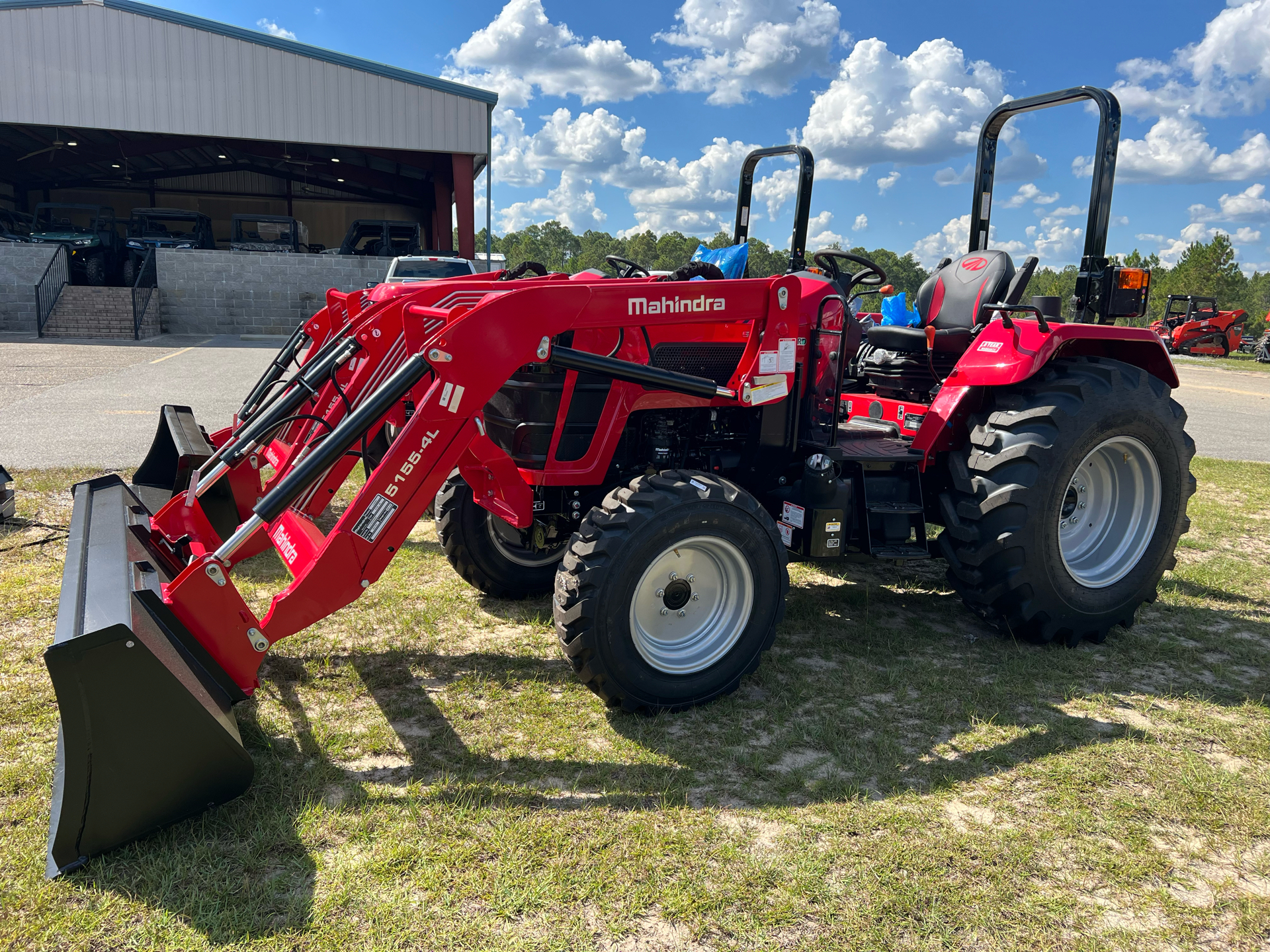

Mahindra 5145

Name: Mahindra 5145
Brand: Mahindra

Mahindra 5145 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.

The Mahindra 5145 is a tractor with a rated power of 38 hp, situated at the lighter end of its class. It was introduced to production in 2021 and features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 12-speed gearbox. The tractor has a listed operating weight of 2444 kg and is suitable for operations spanning up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

38 hp

Weight

2444 kg

Catalogue coverage

Variants represented

Richest spec table

64 rows

Recorded power

38 hp

Recorded weight

2444 kg

Transmissions

12-speed sync shuttle

Production years

2021

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Compact Utility tractorReference

Original price was $27,289 in 2023Reference

Four-wheel driveReference

Power steeringReference

Wet disc ((Sales literature indicates dry disc brakes, the manuals indicate wet disc.)) brakesReference

Two-post folding ROPS.Reference

Engine

Mahindra 2.7L 4-cyl dieselReference

Fuel tank64.7 LReference

Engine33.6 kWReference

MahindraReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke89 x 110 mmReference

Power33.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2300Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed sync shuttleReference

Typesync shuttleReference

Gears12 forward and reverseReference

Clutchdry discReference

PTO & Hydraulics

PTO (claimed)28.3 kWReference

Typeopen centerReference

Pump flow33.0 lpmReference

Steering flow17.5 lpmReference

Rear TypeII/IReference

Controlposition controlReference

Rear lift1700 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2300Reference

Engine RPM540E@1725Reference

Dimensions

Wheelbase197 cmReference

Weight2444 kgReference

Front tire9.5-20Reference

Rear tire14.9-28Reference

Weight498 kgReference

Standard tires (ag)Front: 9.5-20. Rear: 14.9-28Reference

Industrial front10.5/80-18Reference

Industrial rear16.9-24Reference

Length346 cmReference

Width189 cmReference

Height153 cmReference

Ground clearance38 cmReference

Mahindra 5145 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Charging volts12Reference

Battery CCA925Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra 65B Backhoe

Backhoe typeMahindra 65B BackhoeReference

Bucket width45 cmReference

Digging depth284 cmReference

2-Foot flat digging depth279 cmReference

Bucket force1766 kgReference

Dipperstick force1069 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
