Tractor · 2002Unverified
Mahindra 5500
Mahindra 5500 — 00 Series · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Weight
4966 to 6230 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Built in Maharashtra, IndiaReference
Two- or four-wheel driveReference
Power steeringReference
2WD Brakesdry discReference
4WD Brakeswet discReference
Two-post folding ROPS.Reference
Engine
Mahindra 3.0L 4-cyl dieselReference
Engine40.3 kWReference
Mahindra NE452Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke94 x 110 mmReference
Power40.3 kWReference
Fuel systemdirect injectionReference
Compression19.4:1Reference
Rated RPM2100Reference
Starter volts12Reference
Transmission
8-speedReference
Transmissionconstant meshReference
Gears8 forward and 2 reverseReference
The 8/2 transmission was used the two-wheel drive version of the Mahindra 5500.Reference
Transmissionsynchomesh shuttleReference
Gears8 forward and reverseReference
The 8-speed shuttle was used on the 5500 with four-wheel drive.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow41.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1799 kgReference
2WD Rear PTOliveReference
4WD Rear PTOindependentReference
2WD Rear PTO Type540Reference
4WD Rear PTO Type540/1000Reference
Dimensions
Weight4966 to 6230 poundsReference
Front tire7.5x16Reference
2WD Rear tire14.9x28Reference
2WD Standard tires (ag)Front: 7.5x16. Rear: 14.9x28Reference
4WD Standard tires (ag)Front: 9.5x24. Rear: 14.9x28Reference
2WD Lawn/turf front27x12LL-15Reference
4WD Lawn/turf frontLSW305x521Reference
Lawn/turf rearLSW570x648Reference
2WD Industrial front11Lx15Reference
4WD Industrial front12.5/80x18Reference
2WD Industrial rear19.5x24Reference
4WD Industrial rear16.9x24Reference
2WD Length347 cmReference
4WD Length381 cmReference
Width196 cmReference
2WD Weight2252 kgReference
4WD Weight2825 kgReference
Mahindra 5500 attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps36Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Mahindra ML260 loaderReference

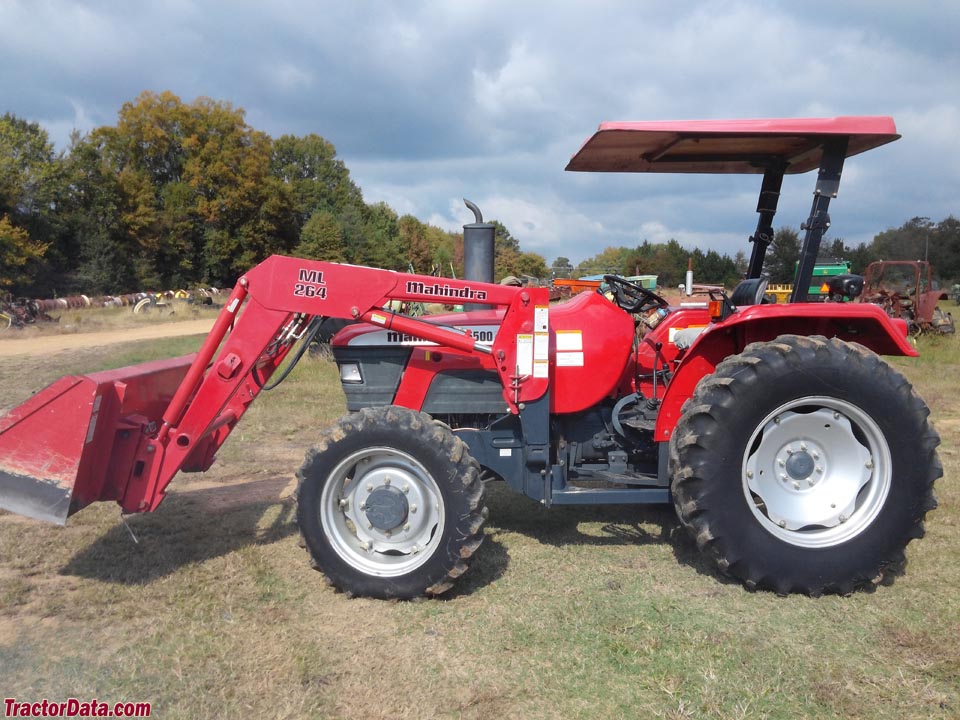

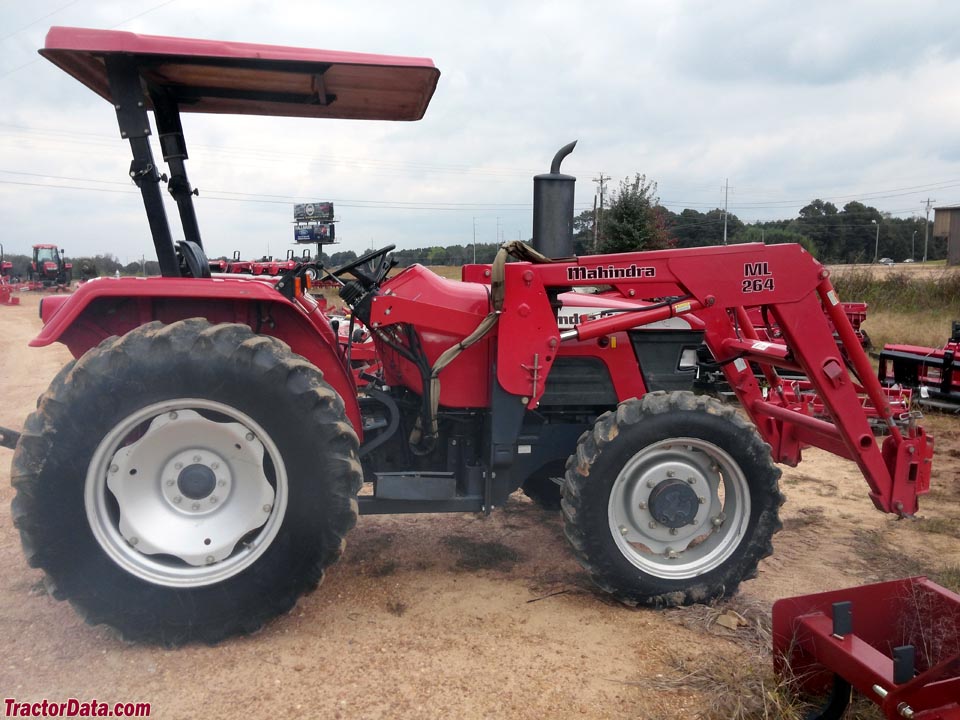

Mahindra ML264 loaderReference
Mahindra ML265 loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
