Tractor · 2007Unverified

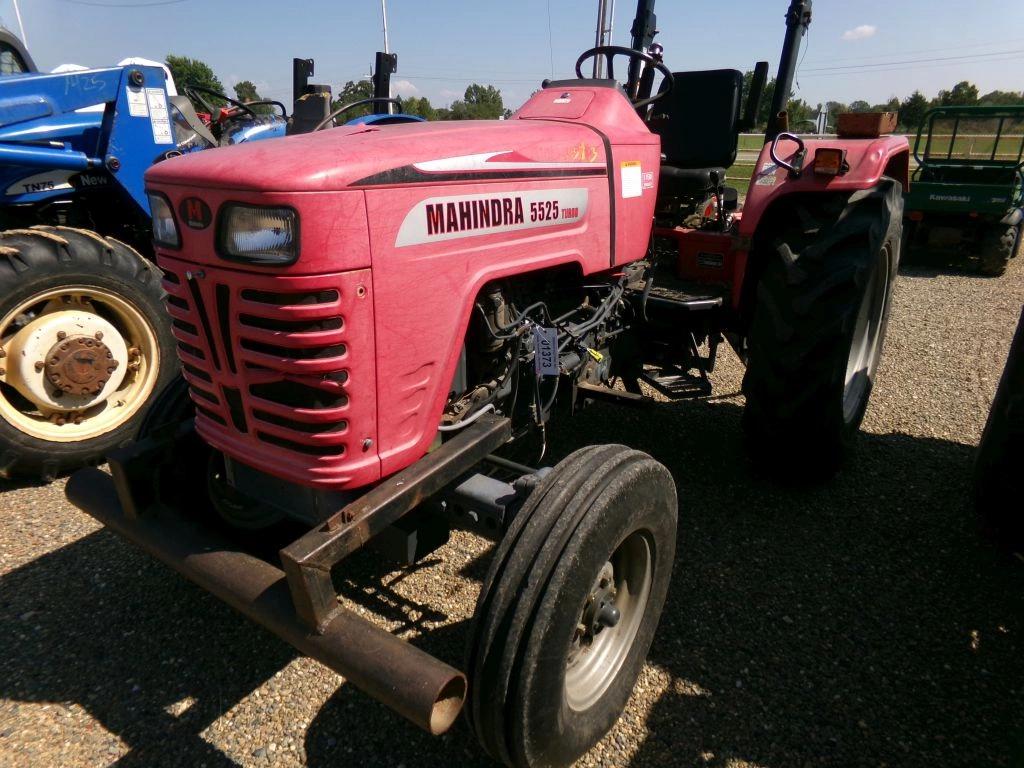

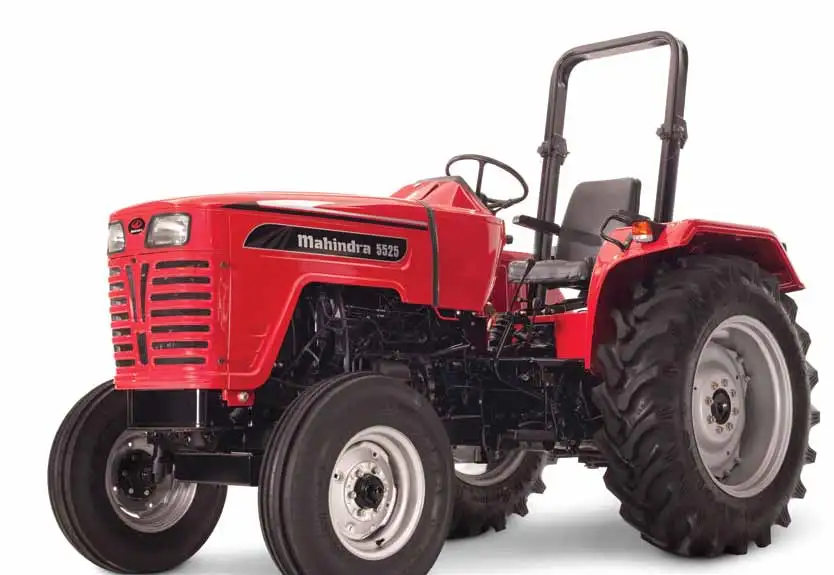

Mahindra 5525

Name: Mahindra 5525
Brand: Mahindra

Mahindra 5525 — 25 Series · 44 hp. Reference specifications; pending source verification.

The Mahindra 5525 is a tractor model with a rated power of 44 hp, positioning it at the lighter end of its class. It was manufactured in 2007. The tractor is equipped with a 4-cylinder turbocharged intercooled diesel liquid-cooled engine, paired with two-wheel drive and a hydrostatic transmission. Its operating weight is listed at 2193 kg, suitable for operations of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

44 hp

Max power

55 hp

Weight

2193 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

44 hp

Recorded weight

2193 kg

Transmissions

8-speed

Production years

2007-2007

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Utility tractorReference

Built in Maharashtra, IndiaReference

Original price$14,879 (2009)Reference

Two-wheel driveReference

Steeringhydrostatic powerReference

Dry disc brakesReference

Two-post folding ROPS.Reference

Engine

Mahindra 3.1L 4-cyl dieselReference

Mahindra 2.5L 3-cyl dieselReference

Engine41.0 kWReference

Mahindra NE452RReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.1 LReference

Bore/Stroke94 x 110 mmReference

Power40.3 kWReference

Compression19.4:1Reference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Mahindra NE352Reference

turbocharged intercooled dieselReference

3-cylinderReference

EPA Tier III/IV engine, replaced the 186ci.Reference

Displacement2.5 LReference

Power41.0 kWReference

Fuel systemdirect injectionReference

Compression17.2:1Reference

Fuel TypedieselReference

No of Cylinders4 cylinderReference

Rated engine speed2,100 RPMReference

Bore and stroke3.701x4.331 inchesReference

Compression ratio19.4:1Reference

Cooling systemliquid-cooledReference

Transmission

8-speedReference

Gears8 forward and 2 reverseReference

Transmission TypeGearReference

forward and reverse options8 F and 2 RReference

Wheel Drive2WDReference

PTO & Hydraulics

PTO (claimed)32.8 kWReference

Typeopen centerReference

Valves1 or 2Reference

Total flow39.7 lpmReference

Steering flow18.2 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift (at ends)1599 kgReference

Rear PTOlive (2-stage clutch)Reference

Rear PTO Type540Reference

Engine RPM540@2059Reference

Dimensions

Weight2193 kgReference

Front tire7.5x16Reference

Rear tire13.6x28Reference

Ag front7.5x16Reference

Ag rear13.6x28Reference

Length302 cmReference

Width198 cmReference

Operating weight2193 kgReference

Mahindra 5525 attachments

front-end loaderReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps36Reference

Charging amps55Reference

Battery volts12Reference

Battery AH96Reference

Battery size96 AHReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post folding ROPS.Reference

Country of manufacturerMaharashtra, IndiaReference

Capacities

Capacity186.2 ciReference

Power

Max Power55 hpReference

PTO

PTO Power44 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Engine Speed on Rear PTO speed540@2,059 RPMReference

Steering & brakes

Brakesdry discReference

Steering typehydrostatic powerReference

Hydraulics

Pump Rated Output (total)10.5 gpmReference

Hydraulics Typeopen centerReference

Remote Valves1 or 2 ValvesReference

Steering & Implements flow4.8 gpmReference

Rear Hitch category (SAE designation)Category II/IReference

Rear Hitch maximum lift capacity1,599.8 kgReference

Rear Hitch Sensing Typeposition and draft controlReference

Dimensions & weight

Overall Length302.3 cmReference

Overall Width198.1 cmReference

Overall weight2,193.6 kgReference

Wheels & tyres

Rear Wheel TypeAg rear:13.6x28Reference

Front Wheel TypeAg :7.5x16Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
