Tractor · 2008Unverified

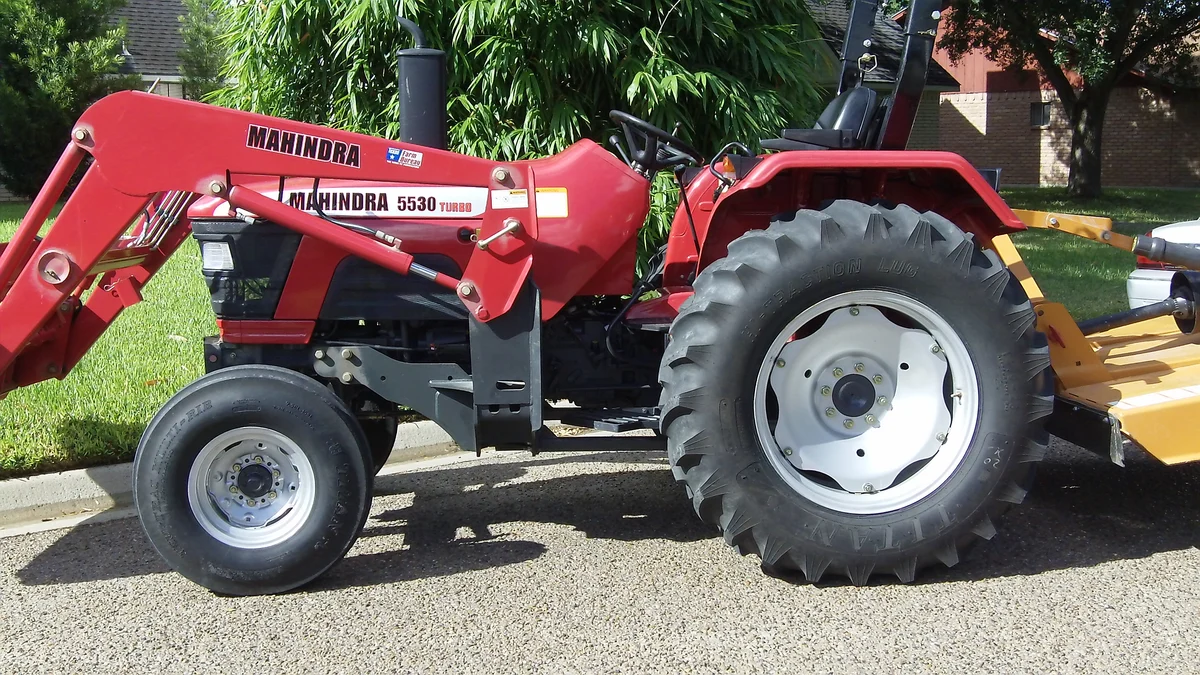

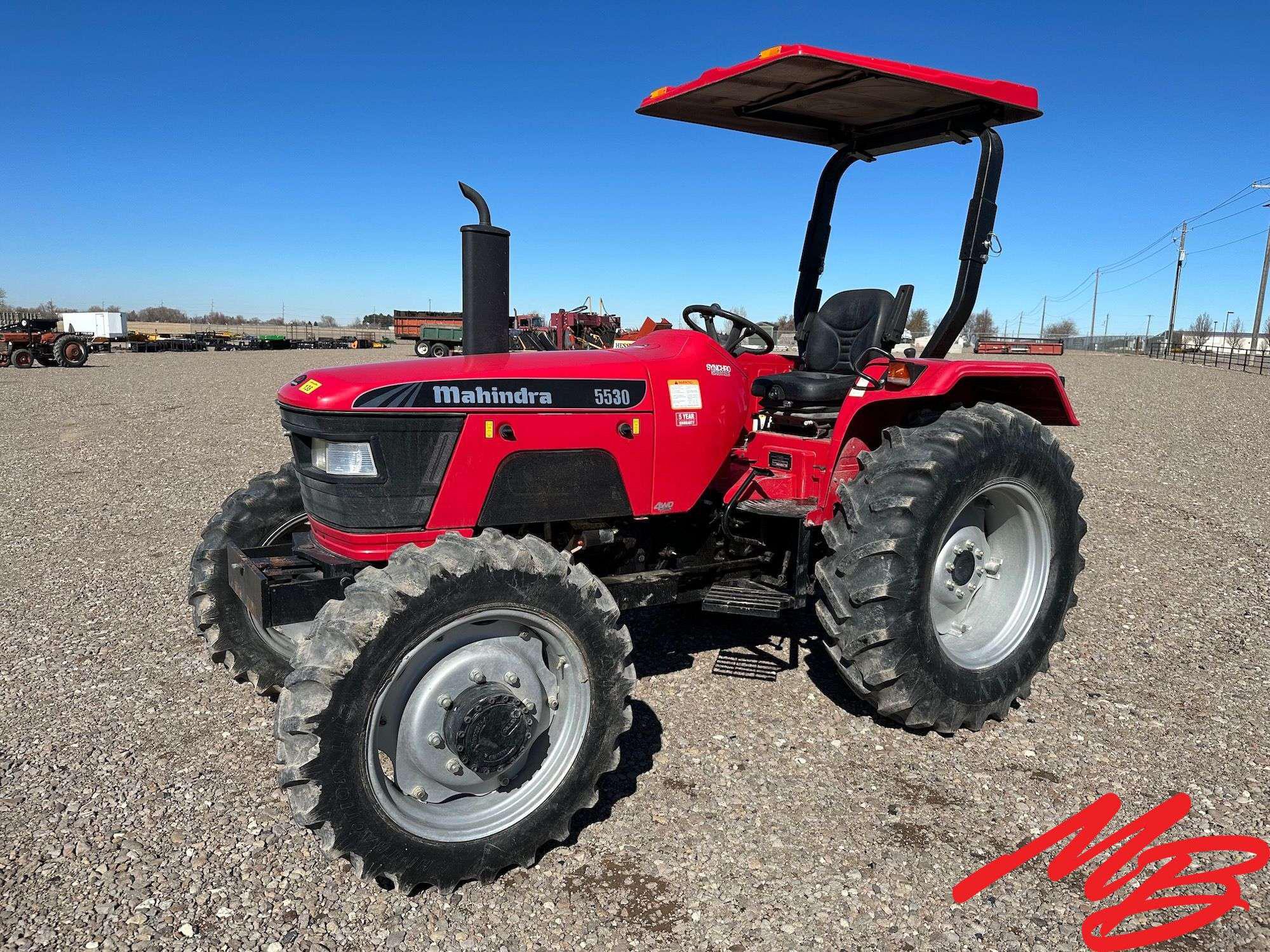

Mahindra 5530
Mahindra 5530 — 30 Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
5464 to 5976 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Original price$24,975 (2013 4WD )Reference
Original price$18,440 (2013 2WD )Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mahindra 2.5L 3-cyl dieselReference
Fuel tank64.7 LReference
Engine41.0 kWReference
MahindraReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Compression17.2:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed synchronized shuttleReference
8-speed synchromeshReference
Typesynchronized shuttleReference
Gears8 forward and reverseReference
TypesynchromeshReference
Full synchromesh transmission used on the 5530 with 4WD.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
Typeopen centerReference
Valves1 or 2Reference
Pump flow40.1 lpmReference
Steering flow17.0 lpmReference
Rear Type1/2Reference
Controlposition and draft controlReference
Rear lift1799 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2059Reference
Dimensions
Weight5464 to 5976 poundsReference
Front tire7.5x16Reference
Rear tire14.9x28 (2WD)Reference
Weight646 kgReference
Weight723 kgReference
Standard tires (ag)Front: 7.5x16. Rear: 14.9x28 (2WD)Reference
Standard tires (ag)Front: 9.5x24. Rear: 14.9x28 (4WD)Reference
Industrial front12.5/80x18Reference
Industrial rear16.9x24Reference
2WD Length347 cmReference
4WD Length355 cmReference
2WD Width190 cmReference
4WD Width200 cmReference
2WD ROPS Operating weight2478 kgReference
4WD ROPS Operating weight2710 kgReference
Mahindra 5530 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Mahindra ML262 loaderReference
Mahindra ML266 loaderReference
BackhoeReference
Mahindra 509 Backhoe
Backhoe typeMahindra 509 BackhoeReference
Digging depth294 cmReference
2-Foot flat digging depth292 cmReference
8-Foot flat digging depth251 cmReference
Reach from pivot388 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1249 kgReference
Mahindra 511 Backhoe
Backhoe typeMahindra 511 BackhoeReference
Digging depth337 cmReference
2-Foot flat digging depth335 cmReference
8-Foot flat digging depth302 cmReference
Reach from pivot439 cmReference
Loading height243 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1386 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
