Tractor · 2015Unverified

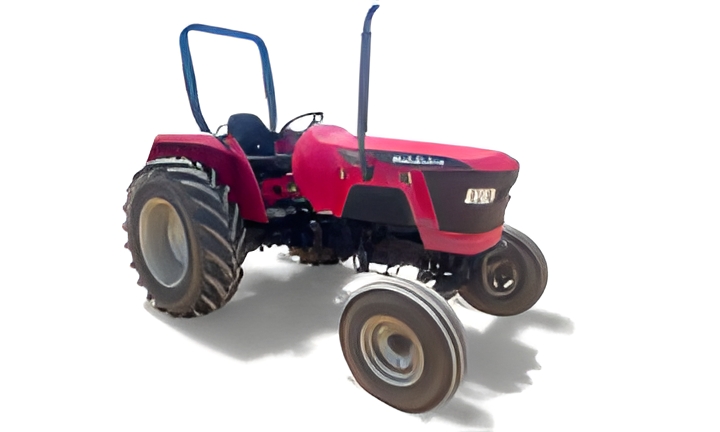

Mahindra 5570
Mahindra 5570 — Utility tractor · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Weight
5557 to 6302 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Original price$26.875 (2016 2WD )Reference
Original price$33,000 (2016 4WD )Reference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post foldable ROPS.Reference
Engine
Mahindra 2.7L 3-cyl dieselReference
Fuel tank45.4 LReference
Engine52.2 kWReference
MahindraReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke96 x 122 mmReference
EmissionsTier IVReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Compression17.2:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
8-speed sync shuttleReference
Typesync shuttleReference
Gears8 forward and reverseReference
Clutchcerametallic dry discReference
PTO & Hydraulics
PTO (claimed)45.5 kWReference
Typeopen centerReference
Rear valves2Reference
Pump flow42.4 lpmReference
Steering flow17.4 lpmReference
Rear TypeII/IReference
Controlposition and draftcontrolReference
Rear lift1799 kgReference
Rear Armstelescopic stabilizersReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2059Reference
Dimensions
Weight5557 to 6302 poundsReference
Front tire9.5Lx15Reference
2WD Rear tire16.9x28Reference
Weight852 kgReference
Weight929 kgReference
2WD Standard tires (ag)Front: 9.5Lx15. Rear: 16.9x28Reference
4WD Standard tires (ag)Front: 11.2x24. Rear: 16.9x30Reference
Industrial front10.5/80x18Reference
Industrial rear16.9x24Reference
2WD Length351 cmReference
4WD Length368 cmReference
2WD Width196 cmReference
4WD Width205 cmReference
2WD Height (ROPS)262 cmReference
4WD Height (ROPS)253 cmReference
2WD Weight2520 kgReference
4WD Weight2858 kgReference
Mahindra 5570 attachments
front-end loaderReference
backhoeReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Charging volts12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Mahindra 5565-2L loaderReference
Mahindra 5565-4L loaderReference
BackhoeReference
Mahindra 75B Backhoe
Backhoe typeMahindra 75B BackhoeReference
Transport height236 cmReference
Digging depth294 cmReference
2-Foot flat digging depth292 cmReference
Reach from pivot388 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1249 kgReference
Mahindra 85B Backhoe
Backhoe typeMahindra 85B BackhoeReference
Transport height269 cmReference
Digging depth337 cmReference
2-Foot flat digging depth335 cmReference
Reach from pivot439 cmReference
Loading height243 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1386 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
