Tractor · Unverified

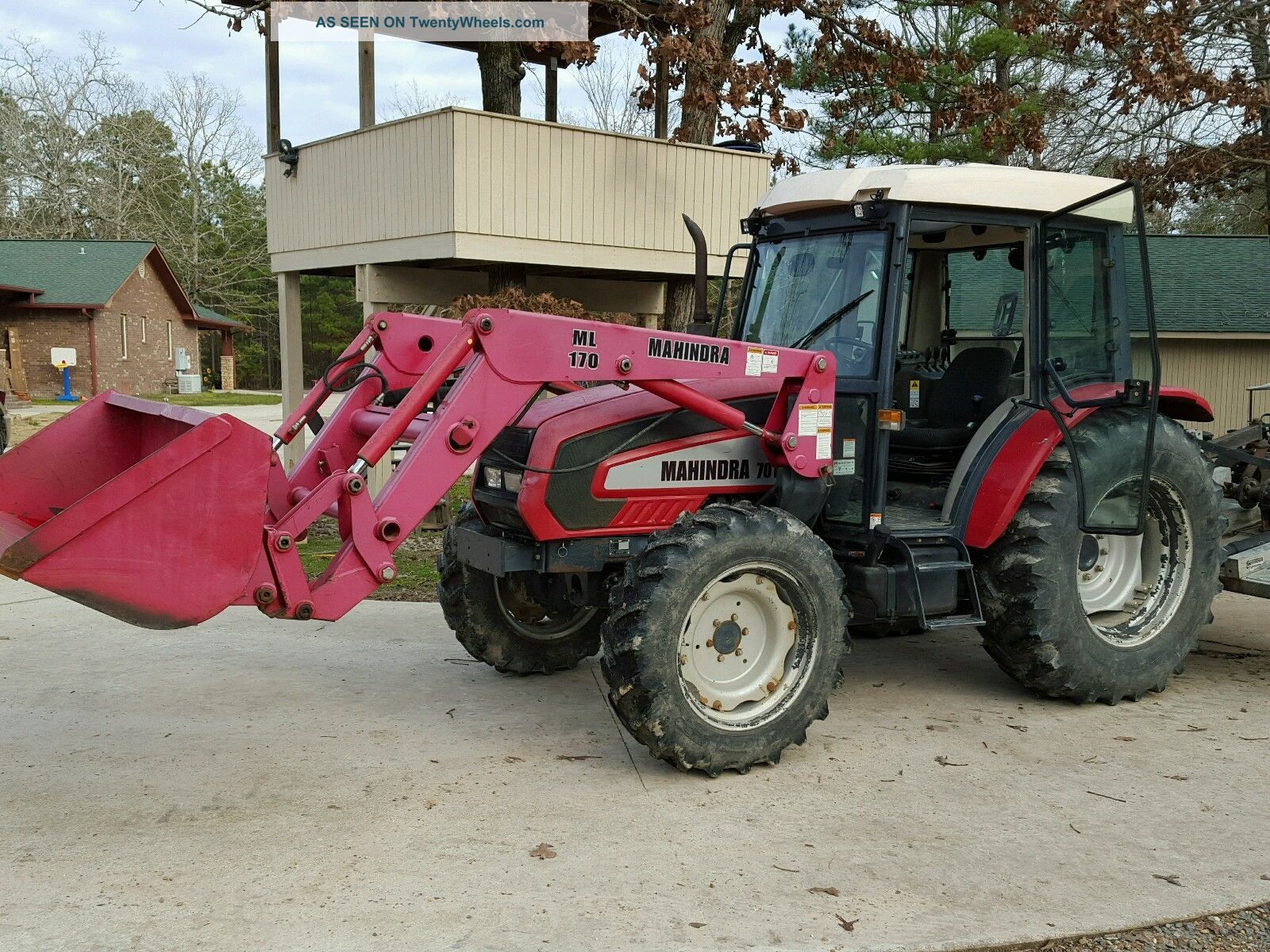

Mahindra 7010
Mahindra 7010 — TYM built · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
2836 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Built in South KoreaReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Engine
Mahindra 3.2L 4-cyl dieselReference
Engine53.7 kWReference
MahindraReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.2 LReference
Power53.7 kWReference
Compression18.4:1Reference
Rated RPM2600Reference
Starter volts12Reference
Coolant capacity9.0 LReference
Oil capacity9.0 LReference
Transmission
16-speedReference
TransmissionSynchomesh shuttleReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)47.0 kWReference
Hydraulic system42.0 LReference
TypeopenReference
Capacity42.0 LReference
Valves3Reference
Pump flow43.9 lpmReference
Total flow46.9 lpmReference
Rear TypeIIReference
Rear lift1963 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Capacities
Fuel100.0 LReference
Dimensions
Weight2836 kgReference
Front tire11.2x24Reference
Rear tire16.9x30Reference
Ag front11.2x24Reference
Ag rear16.9x30Reference
Mahindra 7010 attachments
front-end loaderReference
Electrical
Charging systemalternatorReference
Charging amps45Reference
Battery CCA110Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
