Tractor · 2011Unverified

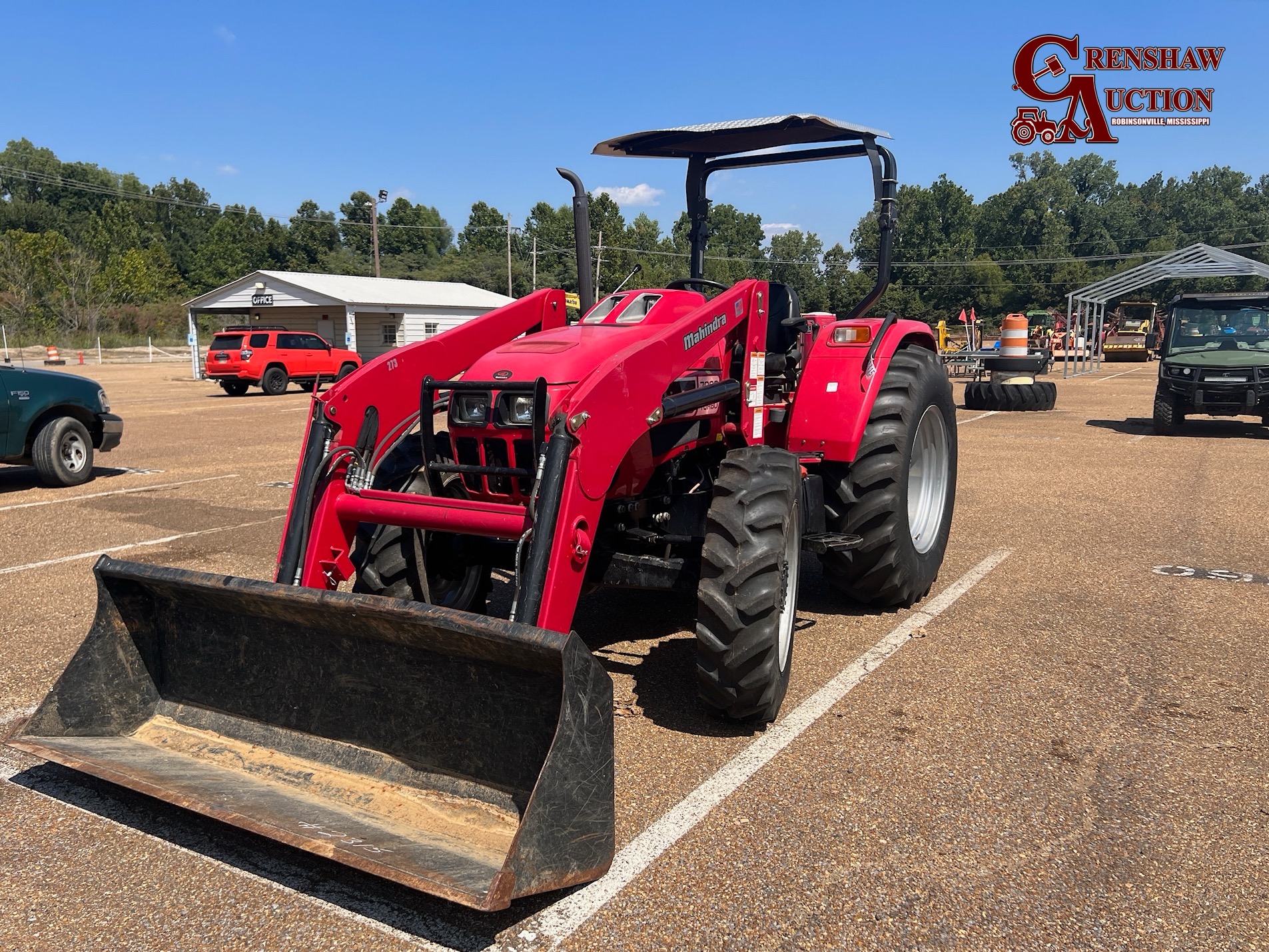

Mahindra 7060
Mahindra 7060 — 60 Series · 57 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
57 hp
Weight
6727 to 7551 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Original price$30,810 (2013 ROPS )Reference
Original price$42,690 (2013 ROPS )Reference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Mahindra 2.5L 3-cyl dieselReference
Fuel tank73.1 LReference
Engine50.0 kWReference
MahindraReference
turbocharged intercooled dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.5 LReference
Power50.0 kWReference
Fuel systemdirect injectionReference
Compression17.2:1Reference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
Clutchcerametallic dry discReference
PTO & Hydraulics
PTO (claimed)42.5 kWReference
Typeopen centerReference
Valves2Reference
Pump flow41.6 lpmReference
Steering flow19.3 lpmReference
Rear Type2Reference
Controlposition and draft controlReference
Rear lift2313 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Engine RPM540@2186Reference
Dimensions
Weight6727 to 7551 poundsReference
Front tire9.5x24Reference
Rear tire16.9x28Reference
Weight646 kgReference
Weight723 kgReference
Standard tires (ag)Front: 9.5x24. Rear: 16.9x28Reference
Industrial front12.5/80x18Reference
Industrial rear18.5Lx24Reference
Length400 cmReference
Width196 cmReference
Height (cab)272 cmReference
ROPS Operating weight3051 kgReference
Cab Operating weight3425 kgReference
Mahindra 7060 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps120Reference
Batteries12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Front-end loaderReference
BackhoeReference
The ML272 loader was compatible with ROPS models, while the ML274 loader was compatible on the 5010 with a cab. Both loaders had the same ratings.Reference
Mahindra 509 Backhoe
Backhoe typeMahindra 509 BackhoeReference
Digging depth294 cmReference
2-Foot flat digging depth292 cmReference
8-Foot flat digging depth251 cmReference
Reach from pivot388 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1249 kgReference
Mahindra 511 Backhoe
Backhoe typeMahindra 511 BackhoeReference
Digging depth337 cmReference
2-Foot flat digging depth335 cmReference
8-Foot flat digging depth302 cmReference
Reach from pivot439 cmReference
Loading height243 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1386 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
