Tractor · 2004Unverified

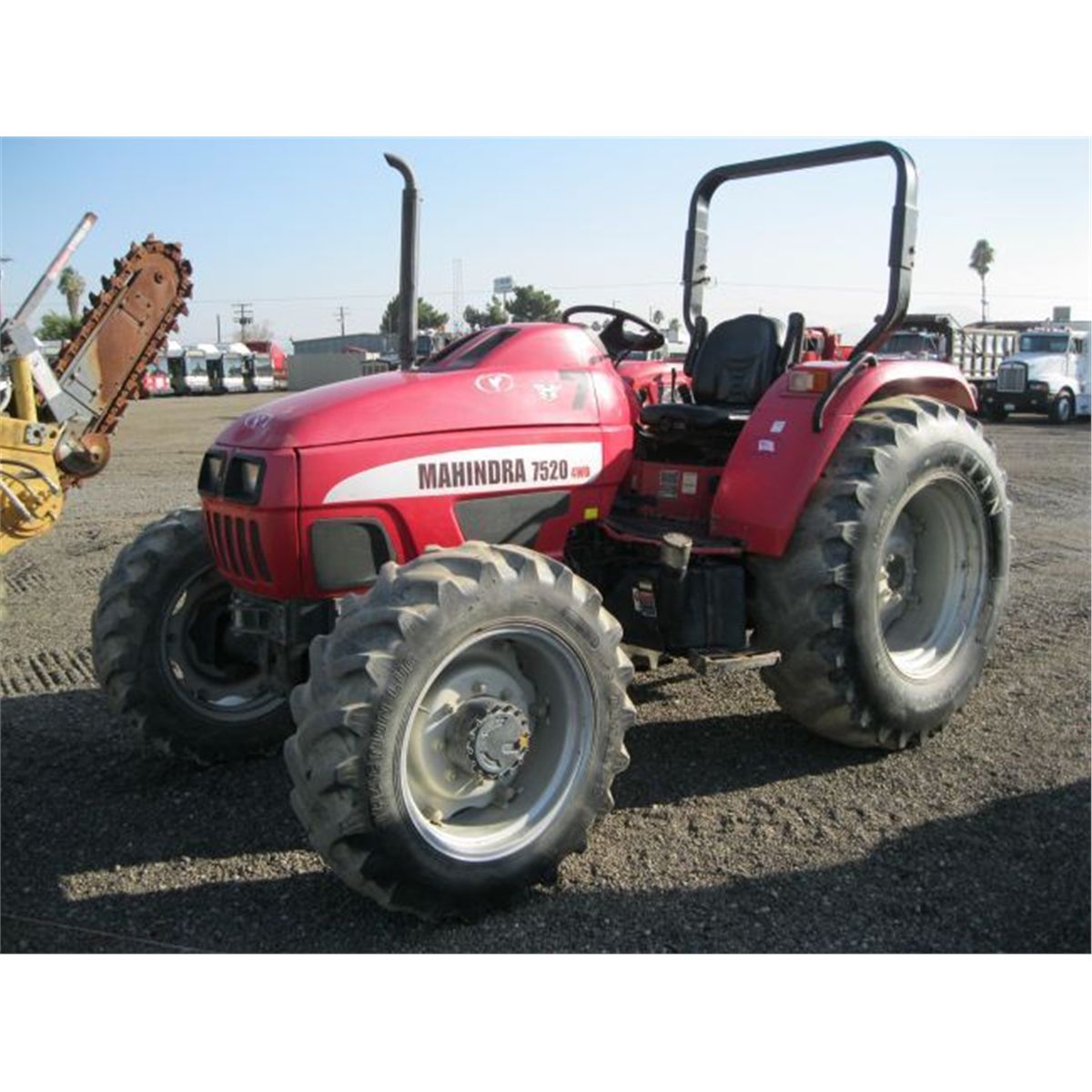

Mahindra 7520

Name: Mahindra 7520
Brand: Mahindra

Mahindra 7520 — 20 Series · 65 hp. Reference specifications; pending source verification.

The Mahindra 7520 is a tractor model with a rated power of 65 hp, categorised as a mid-range figure for its class. It was manufactured from 2004 to 2008. The 7520 features a 4-cylinder diesel liquid-cooled engine, paired with mechanical front-wheel drive and a hydrostatic transmission. Its operating weight is listed at 7100 to 7350 pounds, suitable for operations on up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

65 hp

Weight

7100 to 7350 pounds

Catalogue coverage

Variants represented

Richest spec table

55 rows

Recorded power

65 hp

Recorded weight

3220 kg

Transmissions

12-speed synch shuttle

Production years

2004-2008

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerMahindraReference

Utility tractorReference

Built in Maharashtra, IndiaReference

Original price$24,635 (2008 2WD )Reference

Original price$29,250 (2008 4WD )Reference

Drive4x2 2WDReference

Drive4x4 MFWD 4WD (optional)Reference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mahindra 3.2L 4-cyl dieselReference

Engine55.9 kWReference

Mahindra NE475TCReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.2 LReference

Power55.9 kWReference

Fuel systemindirect injectionReference

Compression18.4:1Reference

Rated RPM2300Reference

Starter volts12Reference

Transmission

12-speed synch shuttleReference

Typesynch shuttleReference

Gears12 forward and reverseReference

Clutchdual dry with creametallic liningReference

PTO & Hydraulics

PTO (claimed)48.5 kWReference

Typeopen centerReference

Valves2Reference

Pump flow64.3 lpmReference

Steering flow19.7 lpmReference

Rear TypeIIReference

Controlposition and draft controlReference

Rear lift2494 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Engine RPM540@2187Reference

Engine RPM1000@2180Reference

Dimensions

Weight7100 to 7350 poundsReference

Front tire11Lx15Reference

Rear tire16.9x30 (2WD)Reference

Standard tires (ag)Front: 11Lx15. Rear: 16.9x30 (2WD)Reference

Standard tires (ag)Front: 11.2x24. Rear: 16.9x30 (4WD)Reference

Industrial front12.5/80x18 (4WD)Reference

Industrial rear19.5Lx24 (4WD)Reference

Length400 cmReference

Width194 cmReference

2WD Weight3220 kgReference

4WD Weight3333 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps45Reference

Charging volts12Reference

Battery CCA925Reference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
