Tractor · 2008Unverified

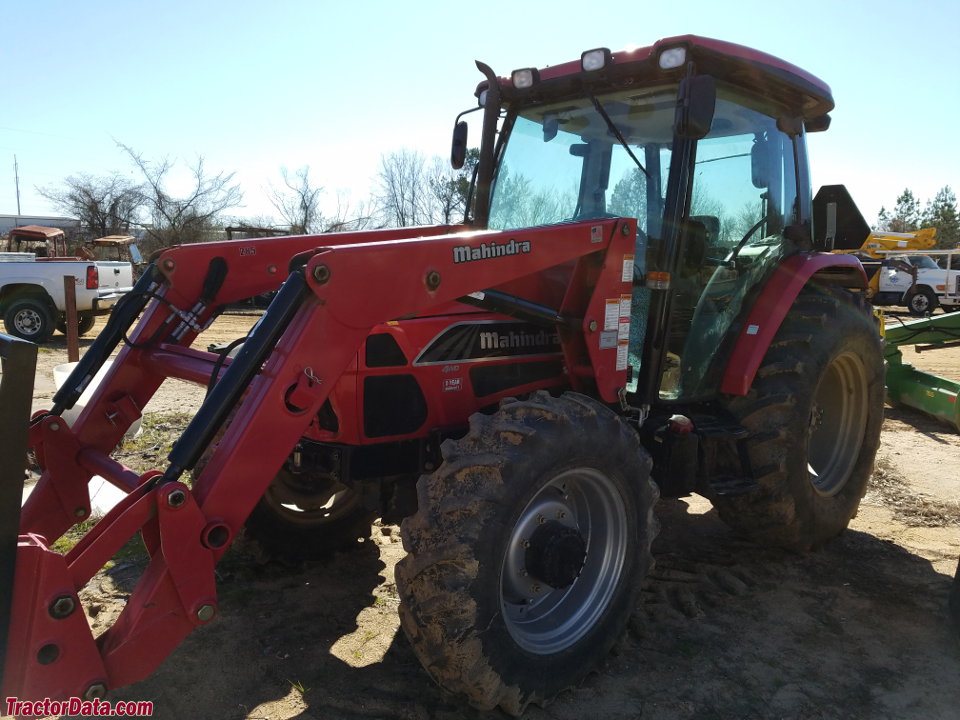

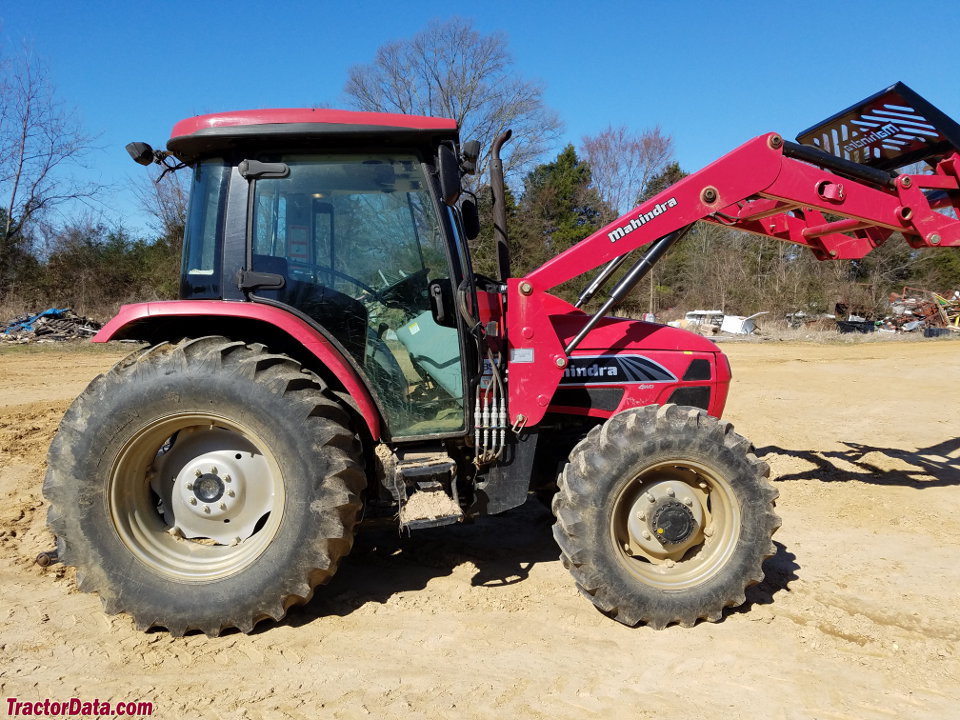

Mahindra 8560
Mahindra 8560 — 60 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
6878 to 8122 pounds
Hover a source tag to verify
Overview
ManufacturerMahindraReference
Utility tractorReference
Original price$32,060 (2013 ROPS )Reference
Original price$43,440 (2013 Cab )Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
Steeringhydrostatic powerReference
Wet disc brakesReference
Two-post foldable ROPS. Cab optional with air-conditioning.Reference
Engine
Mahindra 3.3L 4-cyl dieselReference
Fuel tank73.1 LReference
Engine61.9 kWReference
MahindraReference
turbocharged intercooled dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Power61.9 kWReference
Fuel systemdirect injectionReference
Compression17.2:1Reference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed synchromeshReference
TypesynchromeshReference
Gears12 forward and reverseReference
Clutchcerametallic dry discReference
PTO & Hydraulics
PTO (claimed)52.2 kWReference
Typeopen centerReference
Valves2Reference
Pump flow64.3 lpmReference
Steering flow20.1 lpmReference
Rear Type2Reference
Controlposition and draft controlReference
Rear lift2494 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2186Reference
Engine RPM1000@2180Reference
Dimensions
Weight6878 to 8122 poundsReference
Front tire11Lx15Reference
Rear tire16.9x30 (2WD)Reference
Weight646 kgReference
Weight723 kgReference
Standard tires (ag)Front: 11Lx15. Rear: 16.9x30 (2WD)Reference
Standard tires (ag)Front: 11.2x24. Rear: 16.9x30 (4WD ROPS)Reference
Standard tires (ag)Front: 12.4x24. Rear: 18.4x30 (4WD Cab)Reference
Industrial front12.5/80x18Reference
Industrial rear19.5Lx24Reference
Length411 cmReference
Width196 cmReference
Height (cab)274 cmReference
2WD ROPS Operating3119 kgReference
4WD ROPS Operating3309 kgReference
4WD Cab Operating3684 kgReference
Mahindra 8560 attachments
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps120Reference
Batteries12Reference
Battery volts12Reference
Battery AH96Reference
Attachment overview
Mahindra ML278 loaderReference
Mahindra ML282 loaderReference
Mahindra ML285 loaderReference
BackhoeReference
The ML285 loader was compatible on 8560 tractors with a cab.Reference
Mahindra 509 Backhoe
Backhoe typeMahindra 509 BackhoeReference
Digging depth294 cmReference
2-Foot flat digging depth292 cmReference
8-Foot flat digging depth251 cmReference
Reach from pivot388 cmReference
Loading height208 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1249 kgReference
Mahindra 511 Backhoe
Backhoe typeMahindra 511 BackhoeReference
Digging depth337 cmReference
2-Foot flat digging depth335 cmReference
8-Foot flat digging depth302 cmReference
Reach from pivot439 cmReference
Loading height243 cmReference
Bucket Rotation180°Reference
Swing Arc180°Reference
Bucket force2574 kgReference
Dipperstick force1386 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
