Tractor · 2017Unverified

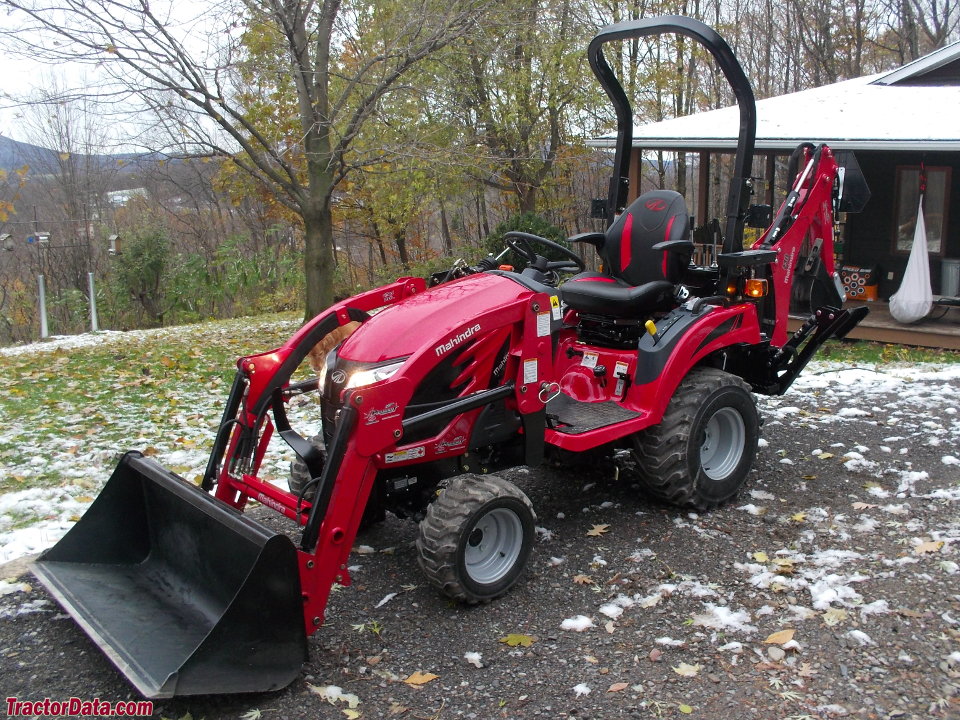

Mahindra eMax 20S
Mahindra eMax 20S — eMax S Series · 14 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
14 hp
Weight
679 kg
Hover a source tag to verify
Overview
DistributorMahindraReference
ManufacturerTYMReference
Sub-Compact Utility tractorReference
Original price was $11,480 in 2018Reference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab available with heater.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine14.5 kWReference
YanmarReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 77 mmReference
EmissionsTier IVReference
Power14.5 kWReference
Fuel systemindirect injectionReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
PTO (claimed)10.6 kWReference
Typeopen centerReference
Rear valves1Reference
Total flow26.4 lpmReference
Steering flow8.0 lpmReference
Rear TypeINReference
Rear lift498 kgReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2893Reference
Mid PTO Type2500Reference
Engine RPM2500@2875Reference
Dimensions
Weight679 kgReference
Weight123 kgReference
Lawn/turf front18x8.5-10Reference
Lawn/turf rear26x12-12Reference
Industrial front18x8.5-10Reference
Industrial rear26x12-12Reference
Length238 cmReference
Width113 cmReference
Height (ROPS)219 cmReference
Ground clearance21 cmReference
Mahindra eMax 20S attachments
54" mid-mount mower deckReference
front-end loaderReference
backhoeReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps45Reference
Battery CCA450Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
Front-end loaderReference
BackhoeReference
54" Mower deck
Typemid-mount Mahindra M54Reference
Type3-bladeReference
Cutting width137 cmReference
Cut height2 to 10 cmReference

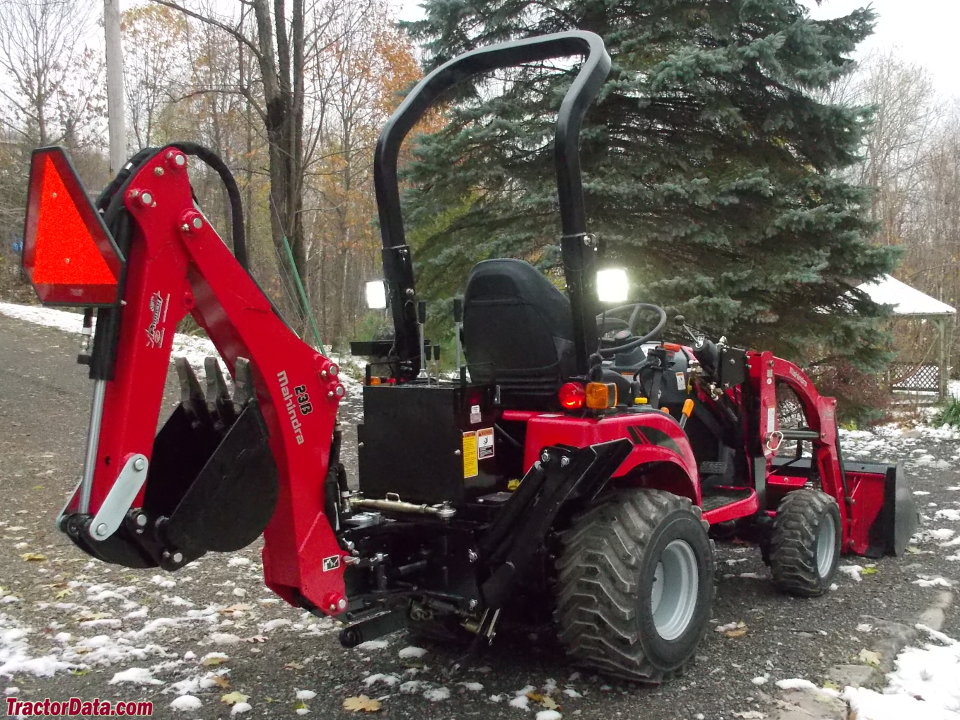

Mahindra eMax 26B Backhoe
Backhoe typeMahindra eMax 26B BackhoeReference
Digging depth193 cmReference
2-Foot flat digging depth190 cmReference
Reach from pivot259 cmReference
Loading height157 cmReference
Bucket Rotation180°Reference
Swing Arc150°Reference
Bucket force972 kgReference
Dipperstick force409 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
