Tractor · 2019Unverified

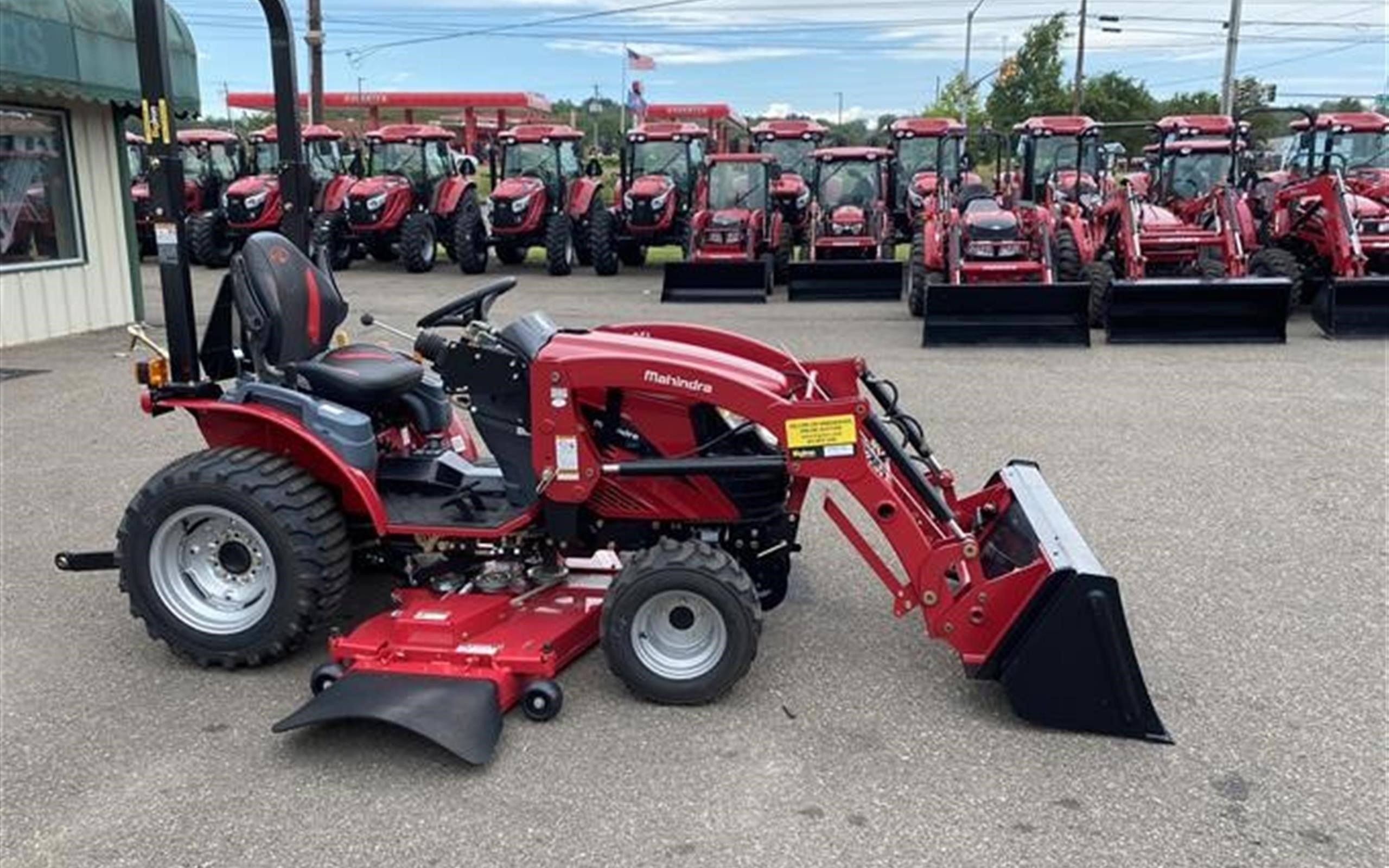

Mahindra eMax 22L

Name: Mahindra eMax 22L
Brand: Mahindra

Mahindra eMax 22L — eMax L Series · 16 hp. Reference specifications; pending source verification.

The Mahindra eMax 22L is a compact tractor model with a rating of 16 hp, making it suitable for smaller applications. The eMax 22L was produced from 2019 to 2023. It is equipped with a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a hydrostatic transmission. The tractor has a listed weight of 742 kg and is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Weight

742 kg

Catalogue coverage

Variants represented

Richest spec table

91 rows

Recorded power

16 hp

Recorded weight

742 kg

Transmissions

6-speed gear

Production years

2019-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerTYMReference

Sub-Compact Utility tractorReference

Original price$13,090 (2023 gear )Reference

Original price$15,604 (2023 hydrostatic )Reference

Four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Kukje 1.2L 3-cyl dieselReference

Fuel tank22.0 LReference

Engine16.4 kWReference

Kukje A1100N3Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.2 LReference

Bore/Stroke78 x 82 mmReference

Power16.4 kWReference

Fuel systemindirect injectionReference

Compression21:1Reference

Rated RPM2600Reference

Firing order1-2-3Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity3.5 LReference

Oil capacity2.2 LReference

Oil change250 hReference

Transmission

6-speed gearReference

hydrostaticReference

TypegearReference

Gears6 forward and 2 reverseReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil change15.3 hReference

PTO & Hydraulics

Gear PTO (claimed)11.9 kWReference

Hydro PTO (claimed)11.1 kWReference

Typeopen centerReference

Pump flow17.0 lpmReference

Total flow26.9 lpmReference

Steering press.108.0 barReference

Rear TypeIReference

Rear lift (at ends)600 kgReference

Gear Rear PTOtransmissionReference

Hydro Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Gear Engine RPM540@2893Reference

Hydro Engine RPM540@2550Reference

Mid PTOindependentReference

Mid PTO Type2000 (1.0)Reference

Engine RPM2000@2875Reference

Dimensions

Wheelbase146 cmReference

Weight742 kgReference

Front tire6-12Reference

Rear tire9.5-16Reference

Weight186 kgReference

Weight276 kgReference

Standard tires (ag)Front: 6-12. Rear: 9.5-16Reference

Lawn/turf front20x8-10Reference

Lawn/turf rear29x12.5-15Reference

Industrial front20x8-10Reference

Industrial rear27x12.5-15Reference

Length255 cmReference

Width116 cmReference

Height (ROPS)231 cmReference

Ground clearance23 cmReference

Mahindra eMax 22L attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

eMax 22L Serial Numbers

Location:Serial number on the left side of the tractor frame above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Charging volts12Reference

Battery CCA450Reference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount Mahindra 62MReference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 10 cmReference

Mahindra 26B Backhoe

Backhoe typeMahindra 26B BackhoeReference

Bucket width30 cmReference

Digging depth203 cmReference

2-Foot flat digging depth199 cmReference

Bucket force1029 kgReference

Dipperstick force566 kgReference

Speeds

With 9.5-16 R1 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
