Tractor · 2014Unverified

Mahindra eMax 25

Name: Mahindra eMax 25
Brand: Mahindra

Mahindra eMax 25 — eMax Series · 19 hp. Reference specifications; pending source verification.

The Mahindra eMax 25 is a compact tractor model with a rated power output of 19 hp, making it suitable for smaller-scale agricultural tasks. This model was produced from 2014 to 2016 and features a 3-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. The eMax 25 has a listed weight of 698 kg and is generally suited to managing land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

19 hp

Max power

24 hp

Weight

698 kg

Catalogue coverage

Variants represented

Richest spec table

96 rows

Recorded power

19 hp

Recorded weight

698 kg

Transmissions

hydrostatic

Production years

2014-2016

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerTYMReference

Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Daedong 1.0L 3-cyl dieselReference

Fuel tank23.1 LReference

Engine17.9 kWReference

Daedong 3C100Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.0 LReference

Bore/Stroke75 x 76 mmReference

Power17.9 kWReference

Fuel systemindirect injectionReference

Compression22:1Reference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,000 RPMReference

Bore and stroke2.95x2.99 inchesReference

Compression ratio22:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverseReference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : Infinite F and Infinite RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.4 kWReference

Typeopen centerReference

Rear valves1Reference

Pump flow17.0 lpmReference

Steering flow9.8 lpmReference

Rear TypeIReference

Rear lift598 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2893Reference

Mid PTO Type2000Reference

Engine RPM2000@2875Reference

Dimensions

Weight698 kgReference

Front tire6x12Reference

Rear tire9.5x16Reference

Weight322 kgReference

Standard tires (ag)Front: 6x12. Rear: 9.5x16Reference

Lawn/turf front20x8-10Reference

Lawn/turf rear29x12.5-15Reference

Industrial front20x8-10Reference

Industrial rear27x12.5-15Reference

Length260 cmReference

Width119 cmReference

Mahindra eMax 25 attachments

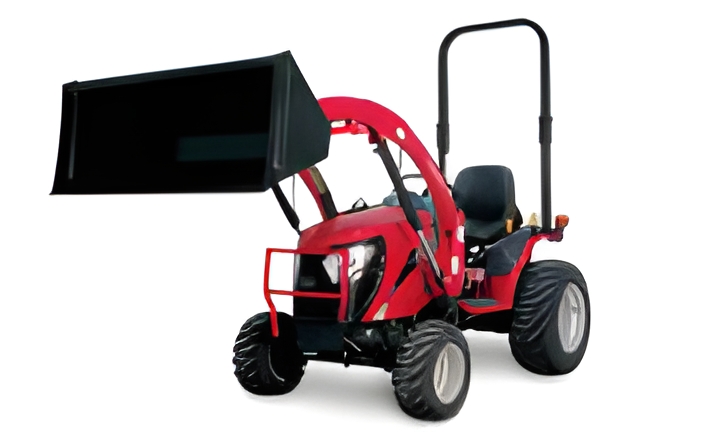

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Attachment overview

Front-end loaderReference

BackhoeReference

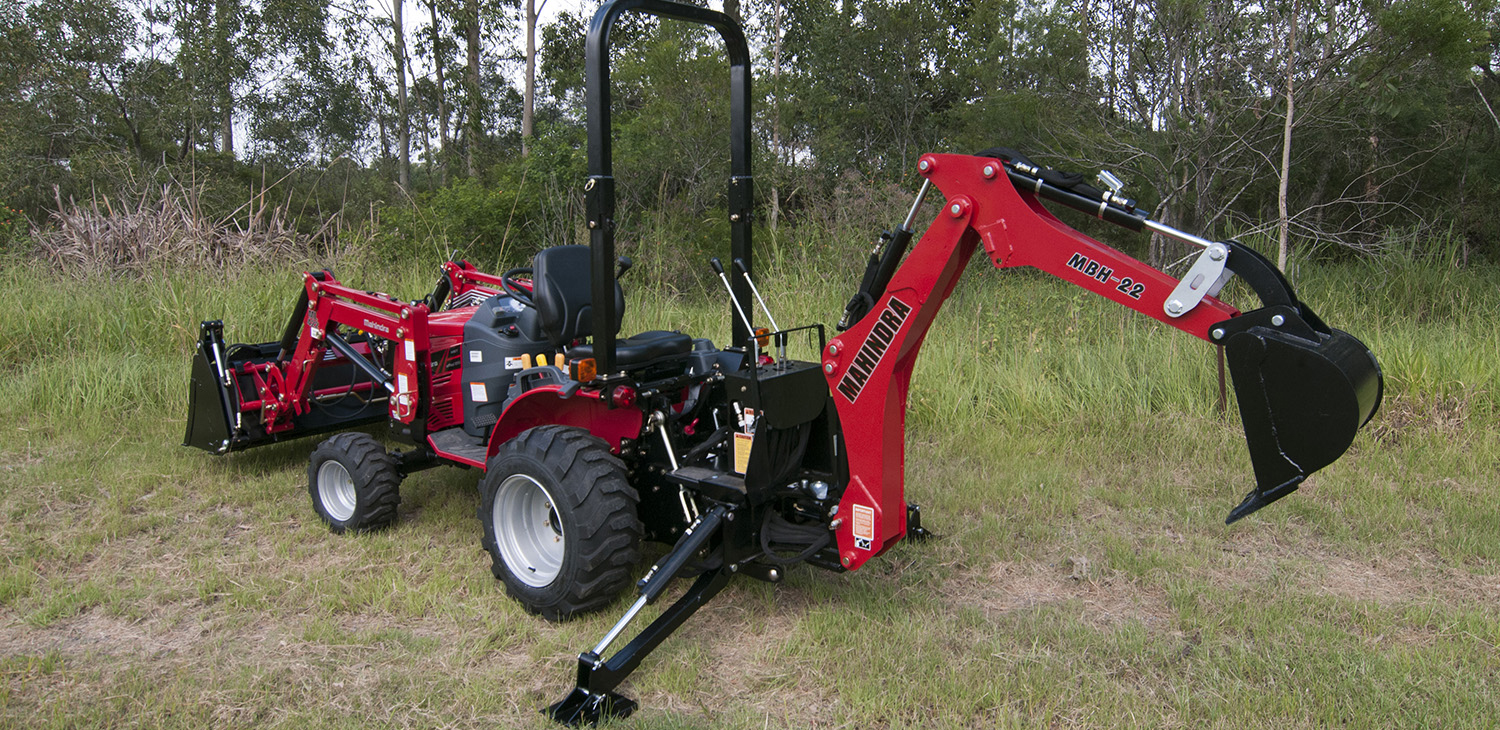

Mahindra eMax 25B Backhoe

Backhoe typeMahindra eMax 25B BackhoeReference

Transport height177 cmReference

Digging depth193 cmReference

2-Foot flat digging depth190 cmReference

Reach from pivot259 cmReference

Loading height157 cmReference

Bucket Rotation180°Reference

Swing Arc150°Reference

Bucket force972 kgReference

Dipperstick force409 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post folding ROPS.Reference

Capacities

Capacity61.5 ciReference

Power

Max Power24 hpReference

PTO

PTO Power19.3 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTOAvailableReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Mid PTO speed2,000@2,875 RPMReference

Engine Speed on Rear PTO speed540@2,893 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1 ValvesReference

Steering & Implements flow2.6 gpm (4.5 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity598.7 kgReference

Dimensions & weight

Overall Length260.1 cmReference

Overall Width119.9 cmReference

Overall weight698.5 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
