Tractor · 2012Unverified

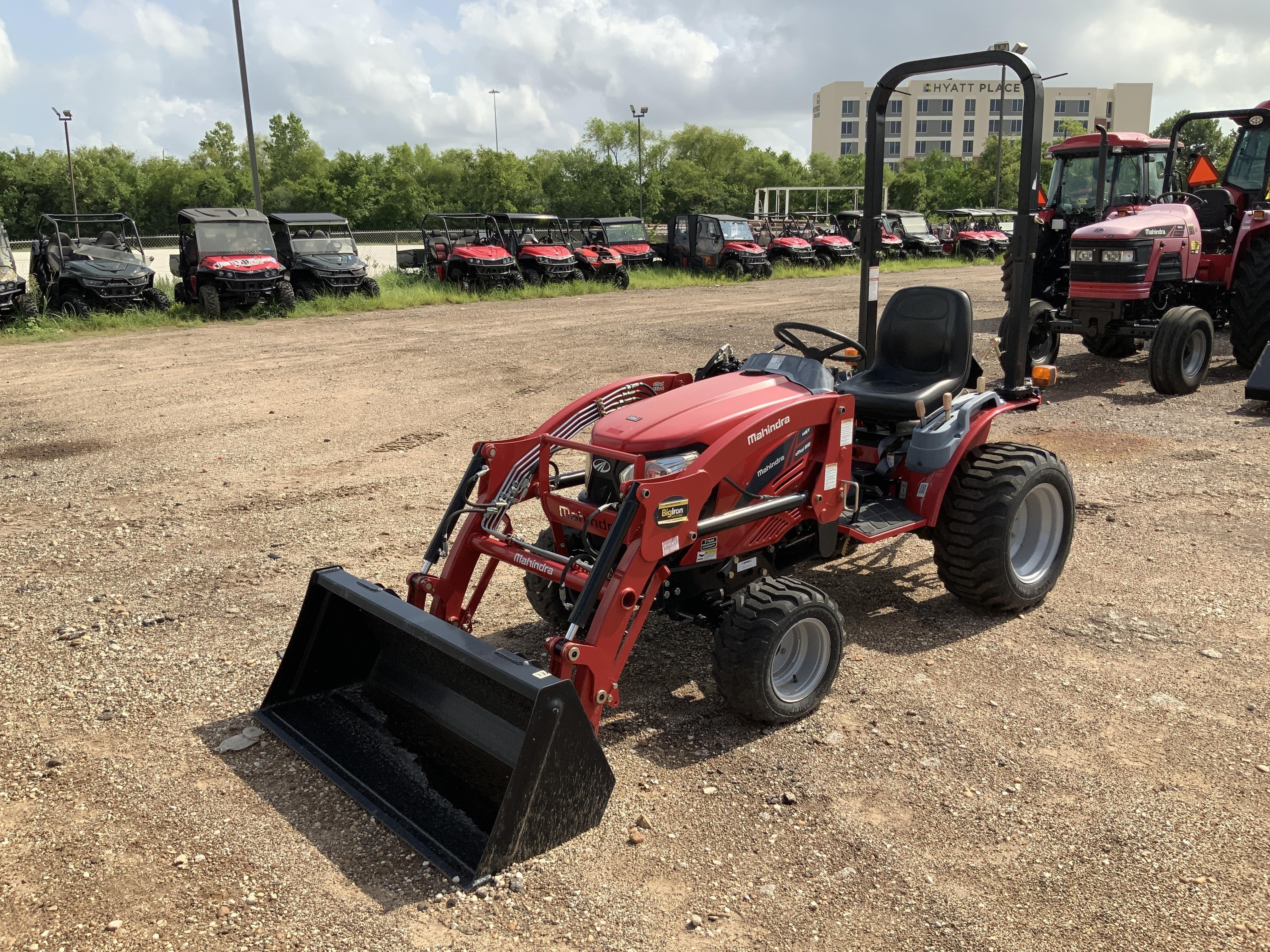

Mahindra Max 22

Name: Mahindra Max 22
Brand: Mahindra

Mahindra Max 22 — Max Series · 16 hp. Reference specifications; pending source verification.

The Mahindra Max 22 is a compact tractor model with a power rating of 16 hp, making it suitable for smaller tasks in its class. Manufactured from 2012 to 2014, this model is powered by a 3-cylinder diesel liquid-cooled engine, which drives through four-wheel drive via a hydrostatic transmission. The listed weight of the Mahindra Max 22 is 767 kg, and it is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

16 hp

Max power

22 hp

Weight

767 kg

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded power

16 hp

Recorded weight

767 kg

Transmissions

hydrostatic

Production years

2012-2014

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerMitsubishiReference

Sub-Compact Utility tractorReference

Original price was $12,690 in 2012Reference

Four-wheel driveReference

Steeringhydrostatic powerReference

Wet disc brakesReference

Two-post foldable ROPS.Reference

Engine

Mitsubishi 1.1L 3-cyl dieselReference

Fuel tank23.1 LReference

Engine16.4 kWReference

Mitsubishi S3LReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 79 mmReference

EmissionsTier IIIReference

Power16.4 kWReference

Fuel systemdirect injectionReference

Compression22:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IIIReference

Bore and stroke3.071x3.091 inchesReference

Compression ratio22:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : Infinite (2-range) F and RReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)11.9 kWReference

Typeopen centerReference

Valves1 (optional)Reference

Pump flow17.4 lpmReference

Steering flow10.2 lpmReference

Rear Type1Reference

Controlposition controlReference

Rear lift635 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Engine RPM540@2376Reference

Mid PTOoptionalReference

Mid PTO Type2000Reference

Engine RPM2000@2556Reference

Dimensions

Weight767 kgReference

Front tire6x12Reference

Rear tire9.5x16Reference

Standard tires (ag)Front: 6x12. Rear: 9.5x16Reference

Lawn/turf front20x8-10Reference

Lawn/turf rear27x12.5-15Reference

Industrial front20x8-10Reference

Industrial rear27x12.5-15Reference

Length264 cmReference

Width128 cmReference

Operating weight767 kgReference

Mahindra Max 22 attachments

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Battery AH46Reference

Battery size46 AHReference

Attachment overview

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

Mahindra MB60A Backhoe

Backhoe typeMahindra MB60A BackhoeReference

Digging depth203 cmReference

2-Foot flat digging depth195 cmReference

Reach from pivot248 cmReference

Loading height152 cmReference

Bucket Rotation180°Reference

Swing Arc140°Reference

Bucket force929 kgReference

Dipperstick force569 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post foldable ROPS.Reference

Capacities

Capacity68.6 ciReference

Power

Max Power22 hpReference

PTO

PTO Power16 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Rear PTO speed540@2,376 RPMReference

Engine Speed on Mid PTO speed2,000@2,556 RPMReference

Steering & brakes

Brakeswet discReference

Steering typehydrostatic powerReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1 (optional) ValvesReference

Steering & Implements flow2.7 gpm (4.6 gpm)Reference

Rear Hitch category (SAE designation)Category 1Reference

Rear Hitch maximum lift capacity635 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Length264.4 cmReference

Overall Width128.8 cmReference

Overall weight767.9 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
