Tractor · 2014Unverified

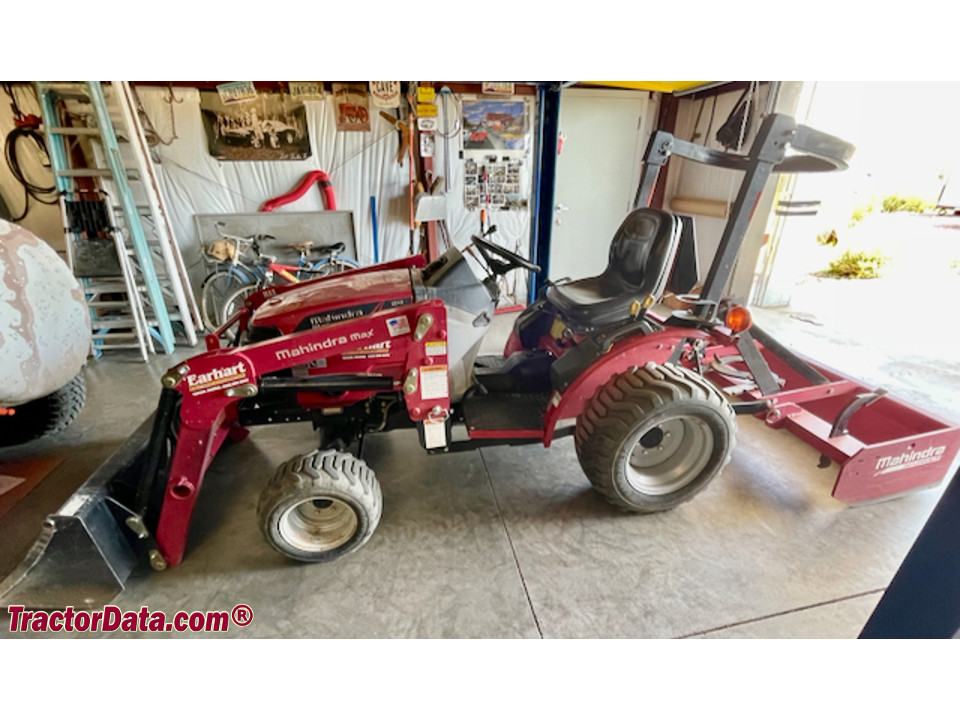

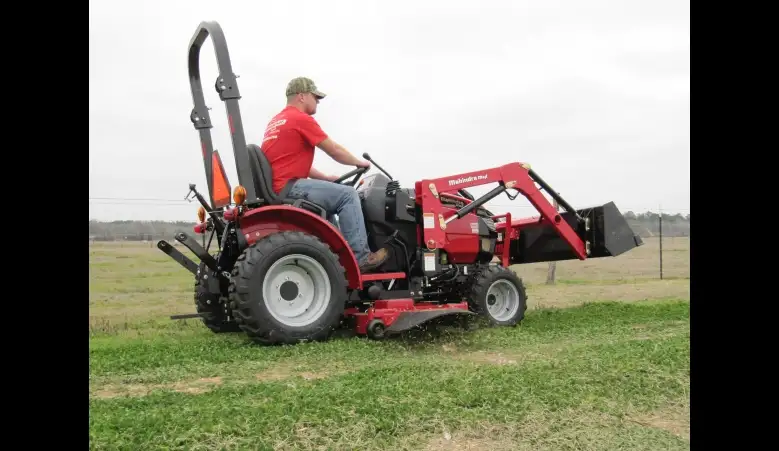

Mahindra Max 24

Name: Mahindra Max 24
Brand: Mahindra

Mahindra Max 24 — Max Series · 20 hp. Reference specifications; pending source verification.

The Mahindra Max 24 is a tractor model with a rated power of 20 hp, positioning it at the lighter end of its class. It was manufactured from 2014 to 2019 and features a 3-cylinder diesel liquid-cooled engine. The tractor is equipped with a four-wheel drive system and hydrostatic transmission, with an operating weight of 767 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Max power

24.4 hp

Weight

767 kg

Catalogue coverage

Variants represented

Richest spec table

104 rows

Recorded power

20 hp

Recorded weight

767 kg

Transmissions

hydrostatic

Production years

2014-2019

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank23.1 LReference

Engine18.2 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke78 x 92 mmReference

EmissionsTier IVReference

Power18.2 kWReference

Fuel systemindirect injectionReference

Compression22:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Fuel TypedieselReference

No of Cylinders3 cylinderReference

Rated engine speed2,500 RPMReference

Emissions complianceTier IVReference

Bore and stroke3.071x3.622 inchesReference

Compression ratio22:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and infintie (2-range) reverse (2-range)Reference

Transmission TypeHSTReference

forward and reverse optionsHydrostatic : Infinite F and Infinite (2-range) R(2-range)Reference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)14.5 kWReference

Typeopen centerReference

Rear valves1Reference

Pump flow17.4 lpmReference

Steering flow10.2 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift635 kgReference

Rear PTOliveReference

Rear PTO Type540Reference

Engine RPM540@2376Reference

Mid PTO Type2000Reference

Engine RPM2000@2556Reference

Dimensions

Weight767 kgReference

Front tire6x12Reference

Rear tire9.5x16Reference

Weight347 kgReference

Standard tires (ag)Front: 6x12. Rear: 9.5x16Reference

Lawn/turf front20x8-10Reference

Lawn/turf rear29x12.5-15Reference

Industrial front20x8-10Reference

Industrial rear27x12.5-15Reference

Length264 cmReference

Width128 cmReference

Height207 cmReference

Mahindra Max 24 attachments

front-end loaderReference

backhoeReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps50Reference

Battery volts12Reference

Battery AH46Reference

Battery size46 AHReference

Attachment overview

Front-end loaderReference

BackhoeReference

Mahindra Max 24B Backhoe

Backhoe typeMahindra Max 24B BackhoeReference

Transport height167 cmReference

Digging depth203 cmReference

2-Foot flat digging depth195 cmReference

Reach from pivot248 cmReference

Loading height152 cmReference

Bucket Rotation185°Reference

Swing Arc140°Reference

Bucket force929 kgReference

Dipperstick force569 kgReference

General

Make & ModelMahindraReference

Rollover protective structureTwo-post folding ROPSReference

Capacities

Capacity80.4 ciReference

Power

Max Power24.4 hpReference

PTO

PTO Power19.5 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTOAvailableReference

Mid PTO RPM2,000 RPMReference

Engine Speed on Rear PTO speed540@2,376 RPMReference

Engine Speed on Mid PTO speed2,000@2,556 RPMReference

Steering & brakes

BrakesWet disc brakesReference

Steering typePower steeringReference

Hydraulics

Hydraulics Typeopen centerReference

Remote Valves1(opt) ValvesReference

Steering & Implements flow2.7 gpm (4.6 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity635 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Overall Height207 cmReference

Overall Length264.4 cmReference

Overall Width128.8 cmReference

Overall weight767.9 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
