Tractor · 2018Unverified

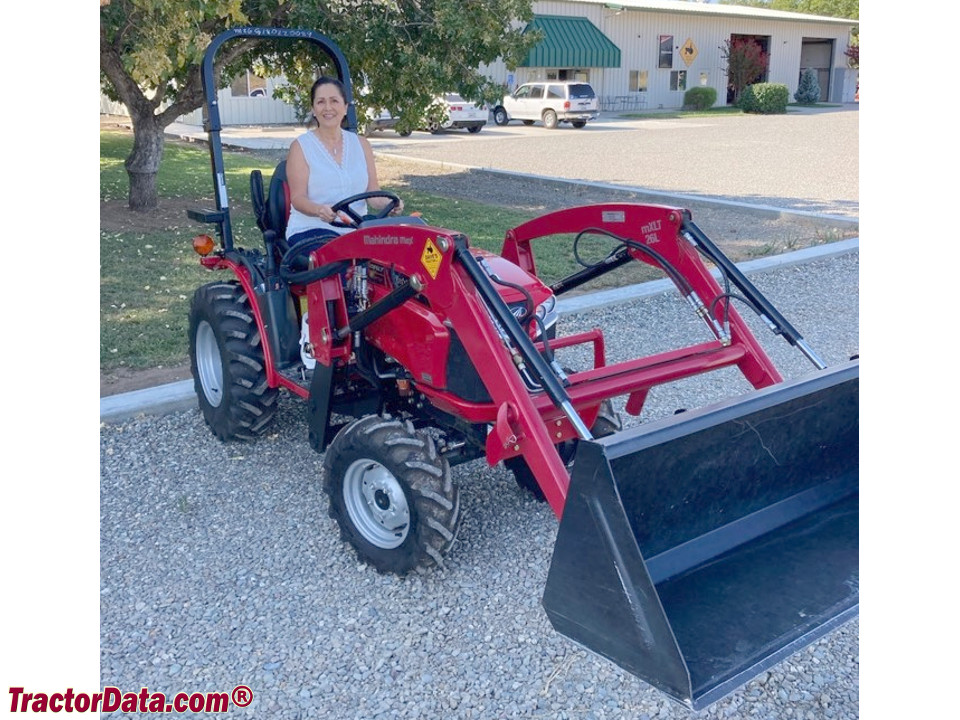

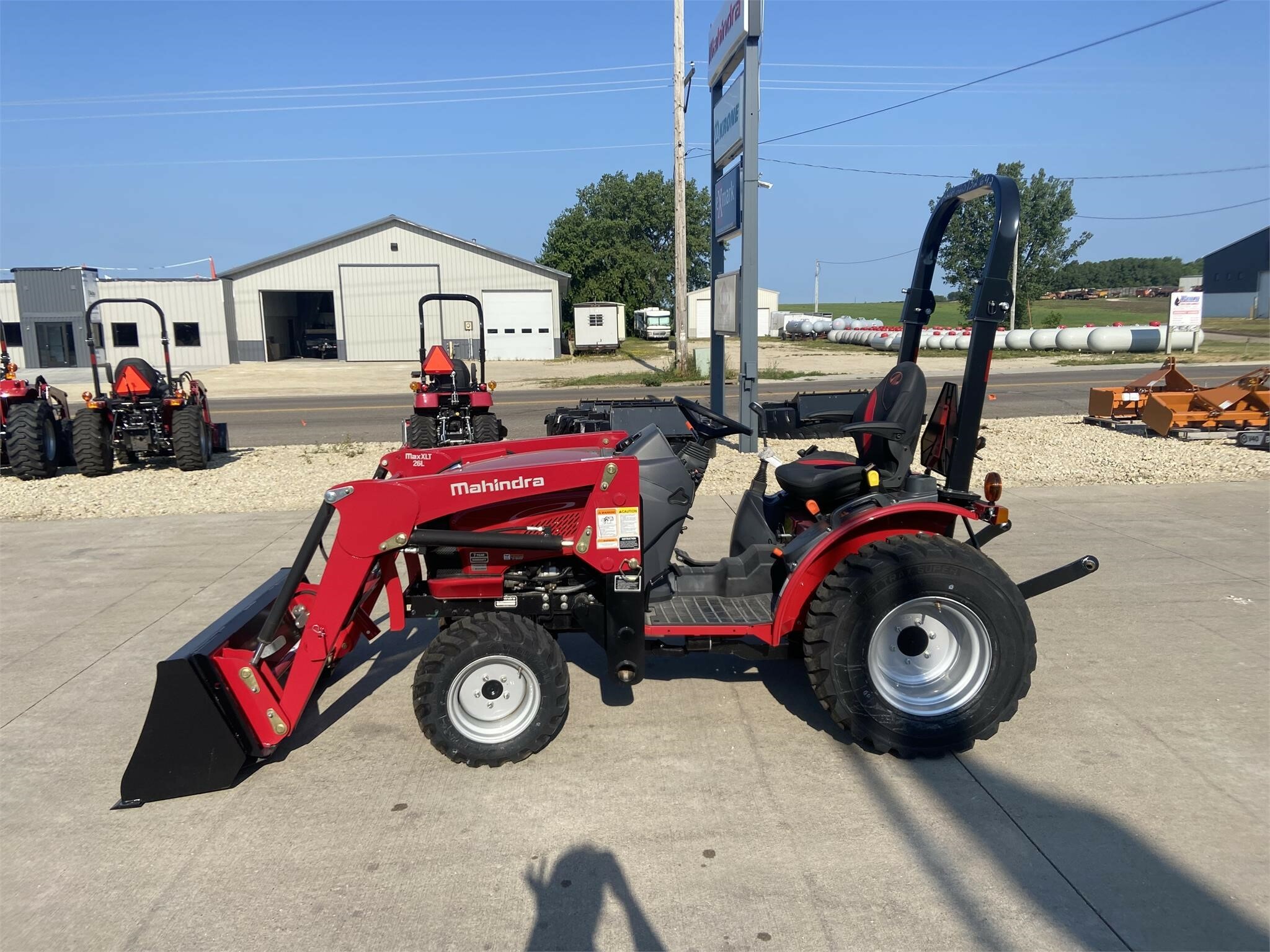

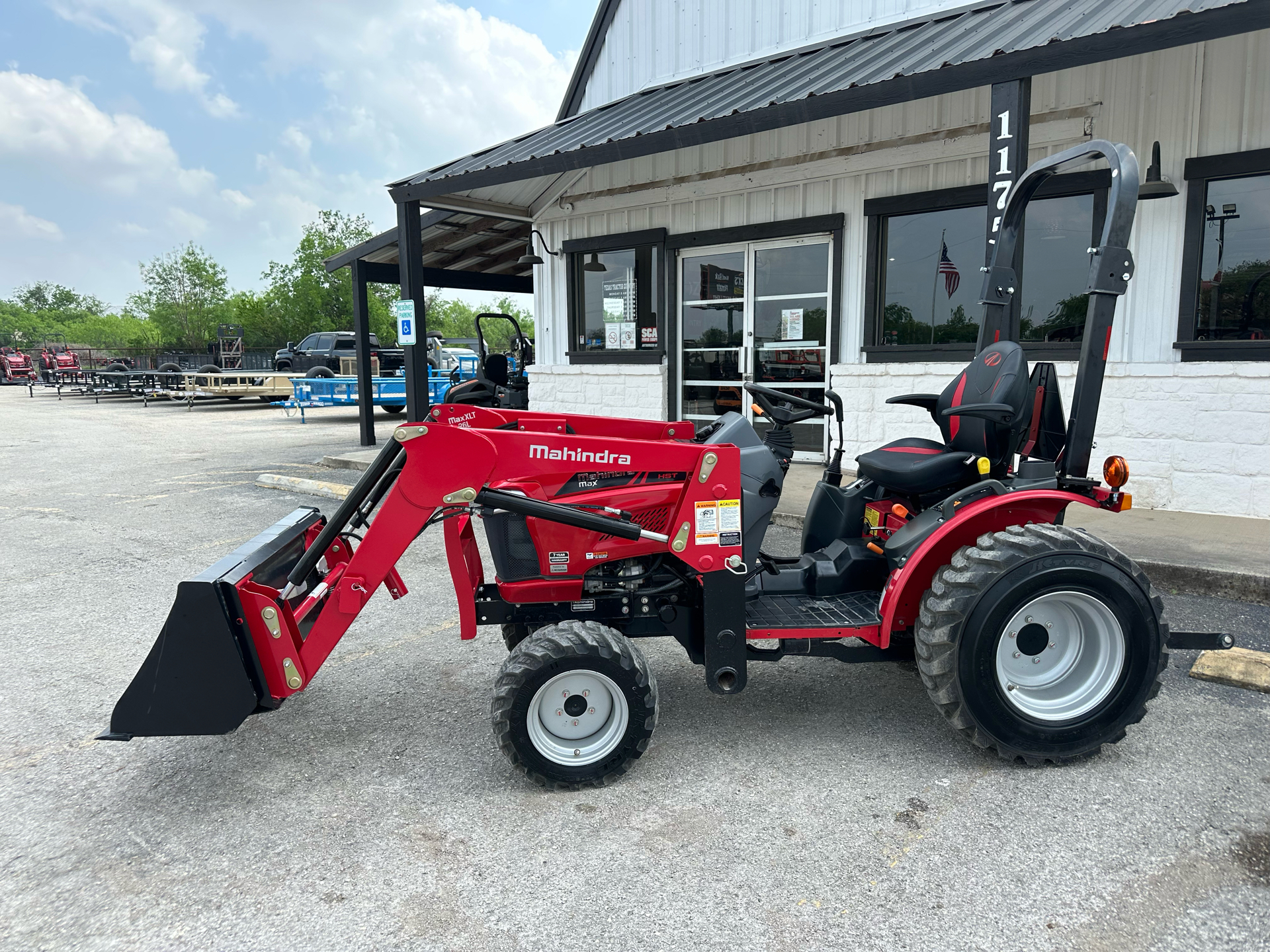

Mahindra Max 26XLT

Name: Mahindra Max 26XLT
Brand: Mahindra

Mahindra Max 26XLT — Compact Utility tractor · 20 hp. Reference specifications; pending source verification.

The Mahindra Max 26XLT is a compact tractor model with a rated output of 20 hp, making it suitable for smaller-scale applications. It was manufactured between 2018 and 2024. The tractor features a 3-cylinder diesel liquid-cooled engine, coupled with a hydrostatic transmission and four-wheel drive. Its listed weight is 1896 to 1973 pounds, and it is designed for use on approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

1896 to 1973 pounds

Catalogue coverage

Variants represented

Richest spec table

76 rows

Recorded power

20 hp

Transmissions

hydrostatic

Production years

2018-2024

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorMahindraReference

ManufacturerMitsubishiReference

Compact Utility tractorReference

Built in JapanReference

Original price$16,880 (2019 shuttle )Reference

Original price$18,030 (2019 hydro )Reference

Four-wheel driveReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Mitsubishi 1.3L 3-cyl dieselReference

Fuel tank23.1 LReference

Engine19.3 kWReference

Mitsubishi S3L2Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke78 x 92 mmReference

Power19.3 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

hydrostaticReference

8-speed synchronized shuttleReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Typesynchronized shuttleReference

Gears8 forward and reverseReference

PTO & Hydraulics

Hydro PTO (claimed)15.1 kWReference

Shuttle PTO (claimed)16.2 kWReference

Typeopen centerReference

Pump flow22.0 lpmReference

Total flow31.4 lpmReference

Rear TypeIReference

Rear lift1050 kgReference

Hydro Rear PTOliveReference

Shuttle Rear PTOtransmissionReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2376Reference

Mid PTO Type2000Reference

Engine RPM2000@2526Reference

Dimensions

Wheelbase160 cmReference

Weight1896 to 1973 poundsReference

Front tire7-12Reference

Rear tire9.5-16Reference

Weight186 kgReference

Weight276 kgReference

Standard tires (ag)Front: 7-12. Rear: 9.5-16Reference

Lawn/turf front23x8.5-12Reference

Lawn/turf rear33x12.5-15Reference

Industrial front23x8.50-12Reference

Industrial rear12-16.5Reference

Length279 cmReference

Width137 cmReference

Height214 cmReference

Hydro Weight894 kgReference

Shuttle Weight860 kgReference

Ground clearance28 cmReference

Mahindra Max 26XLT attachments

60" mid-mount mower deckReference

front-end loaderReference

backhoeReference

Electrical

Charging systemalternatorReference

Battery volts12Reference

Attachment overview

60" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

60" Mower deck

Typemid-mount Mahindra 65MReference

Type3-bladeReference

Cutting width152 cmReference

Cut height2 to 10 cmReference

Mahindra 26B Backhoe

Backhoe typeMahindra 26B BackhoeReference

Bucket width30 cmReference

Digging depth203 cmReference

2-Foot flat digging depth199 cmReference

Bucket force1029 kgReference

Dipperstick force566 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
